Airspeed Horsa Assembly Drawings

Click on the thumbnails for full size imags

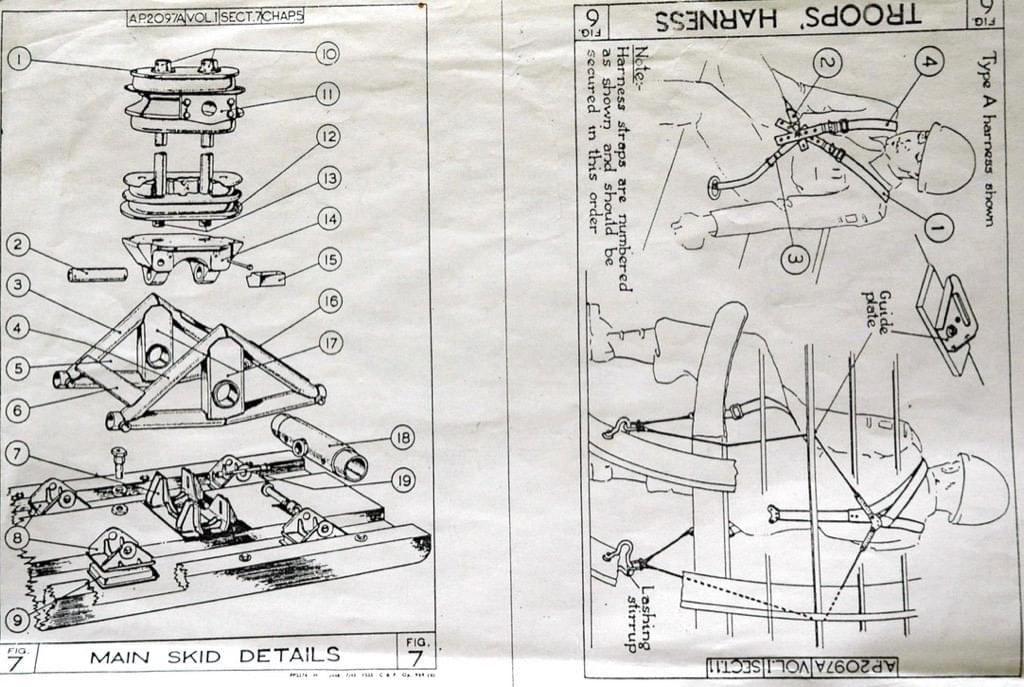

  • Horsa_Plans 01

    My Album Horsa_Plans 01

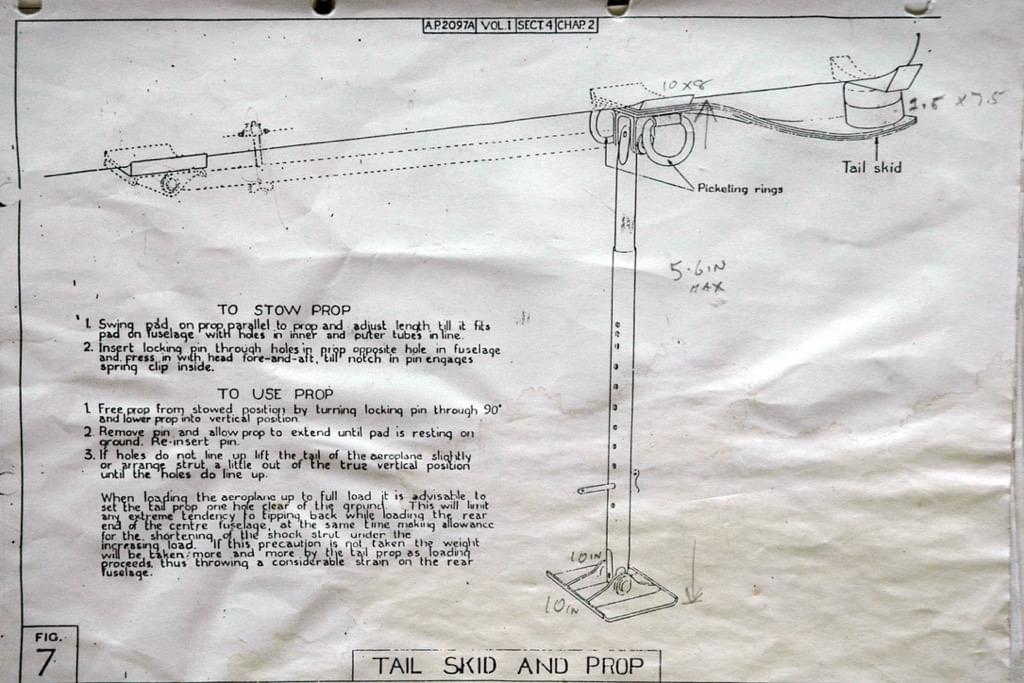

  • Horsa_Plans 02

    My Album Horsa_Plans 02

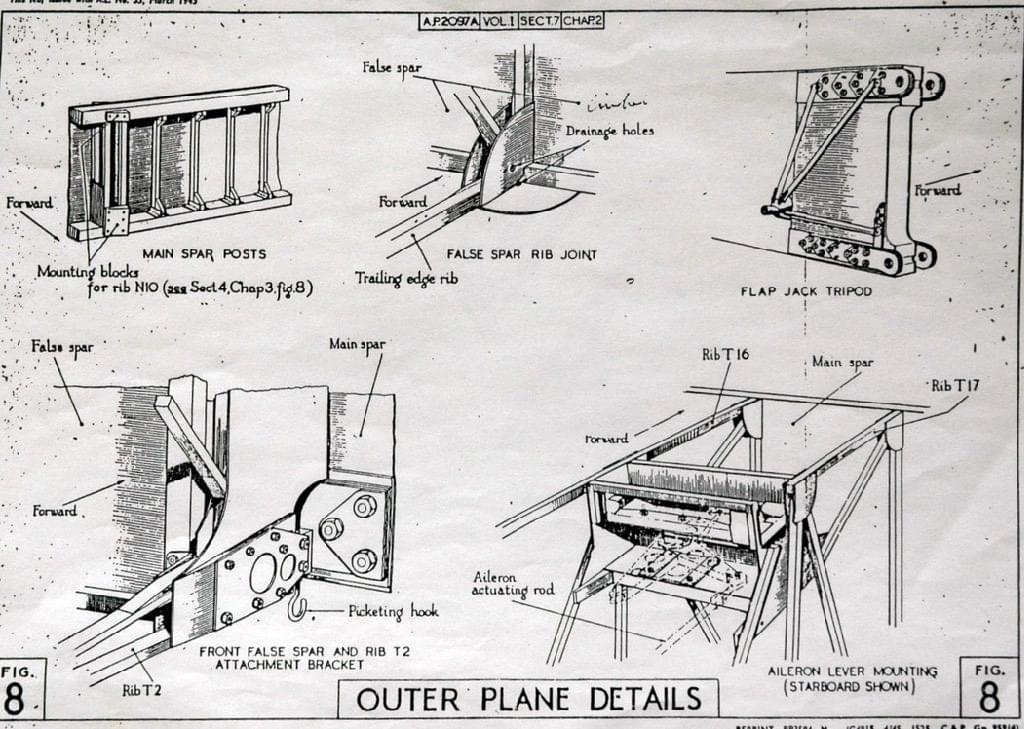

  • Horsa_Plans 03

    My Album Horsa_Plans 03

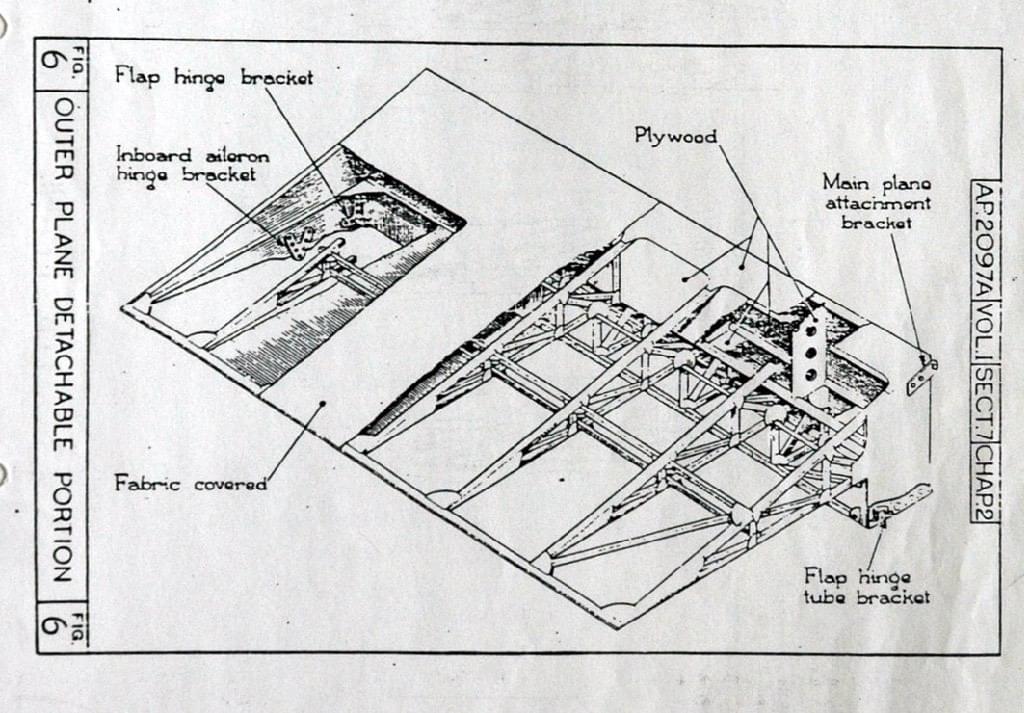

  • Horsa_Plans 04

    My Album Horsa_Plans 04

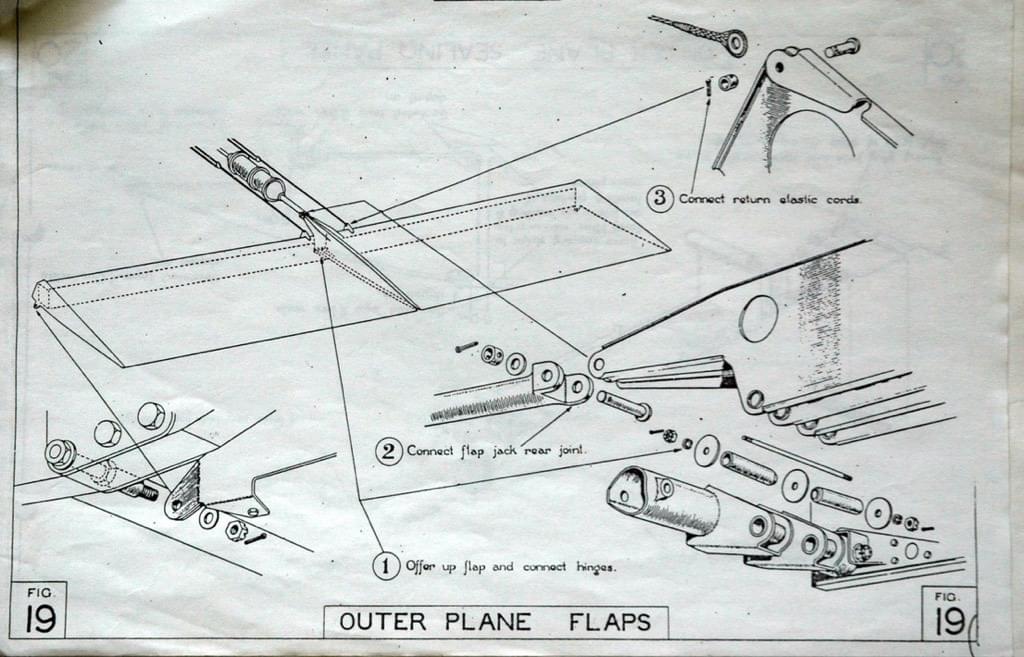

  • Horsa_Plans 05

    My Album Horsa_Plans 05

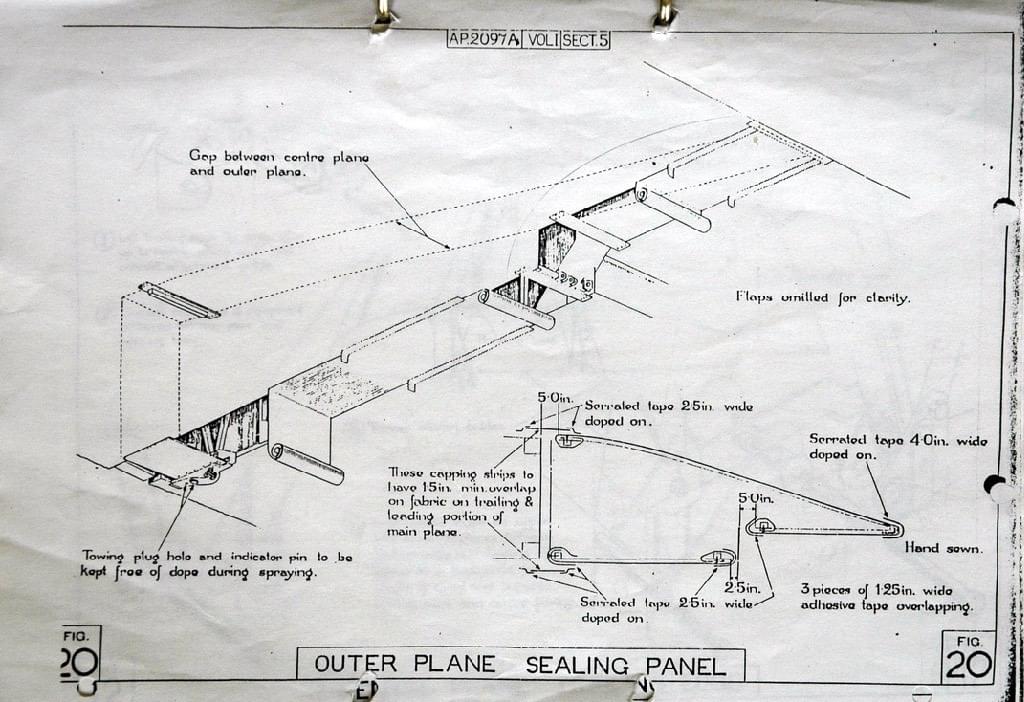

  • Horsa_Plans 06

    My Album Horsa_Plans 06

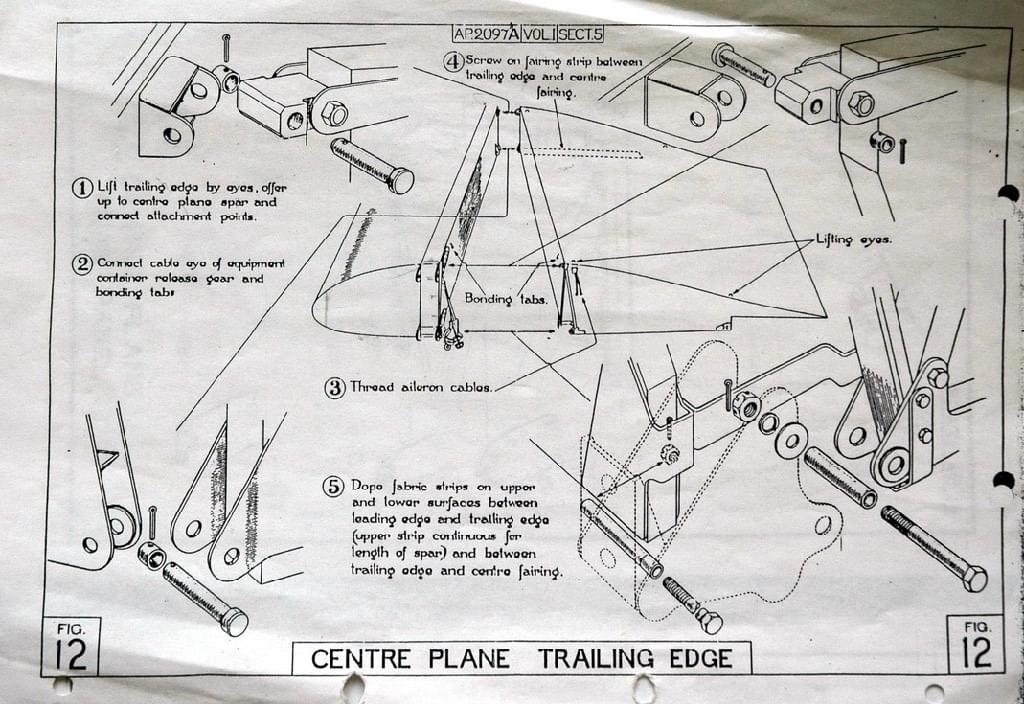

  • Horsa_Plans 07

    My Album Horsa_Plans 07

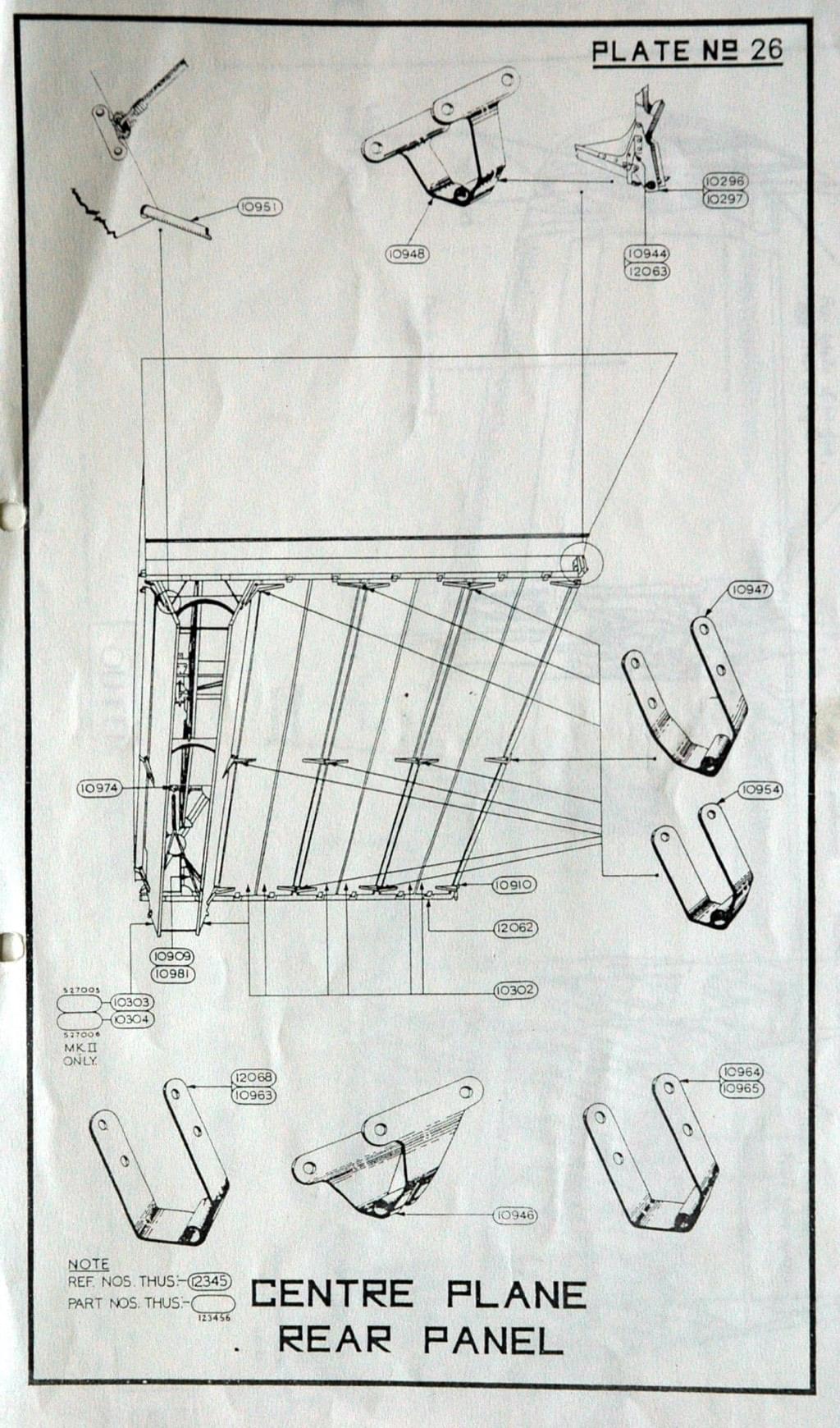

  • Horsa_Plans 08

    My Album Horsa_Plans 08

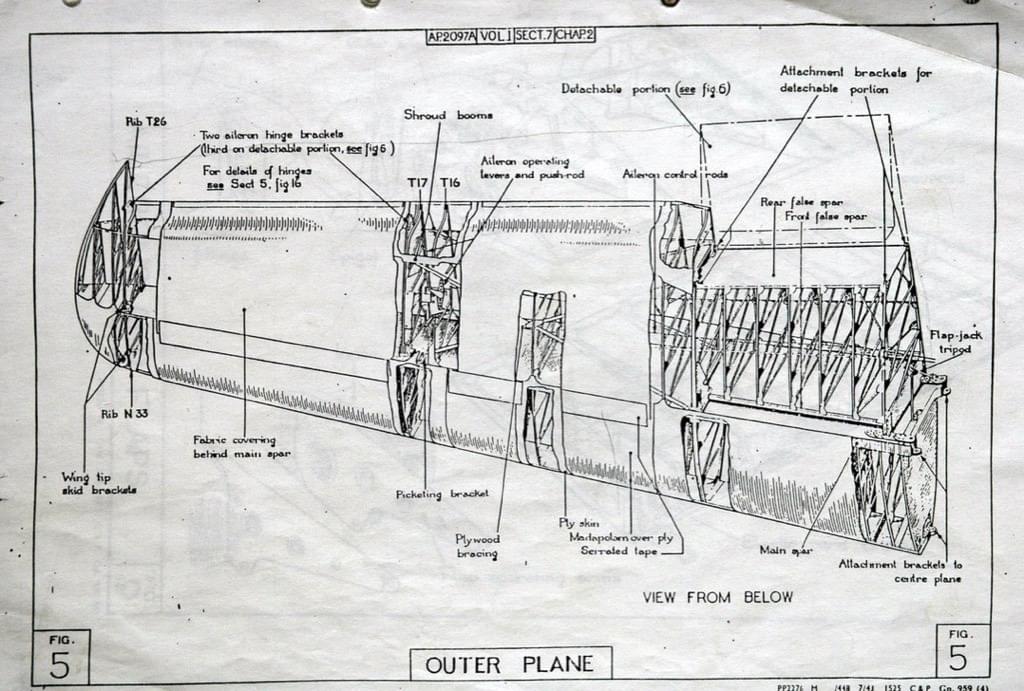

  • Horsa_Plans 09

    My Album Horsa_Plans 09

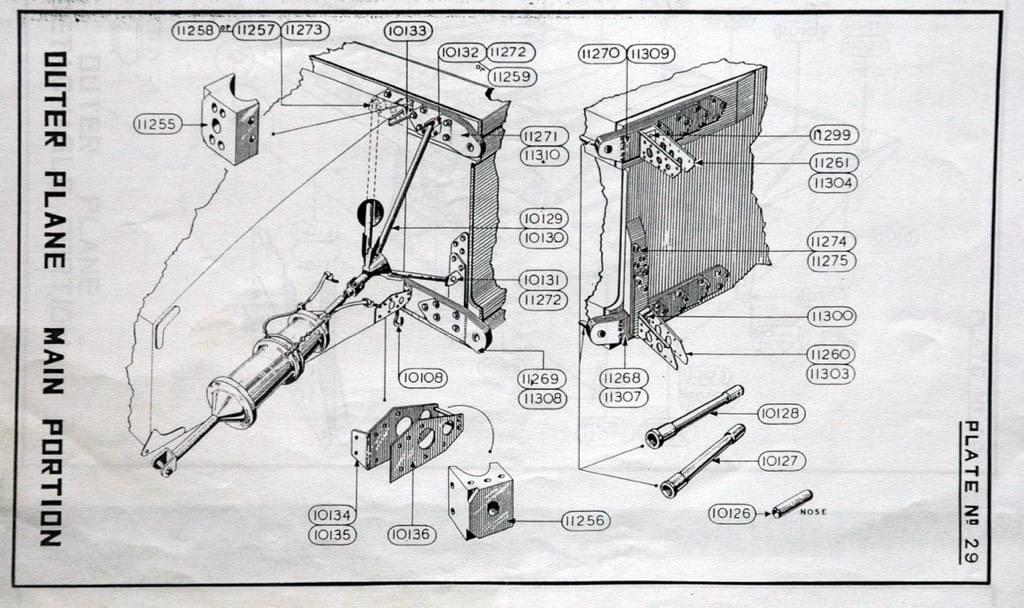

  • Horsa_Plans 10

    My Album Horsa_Plans 10

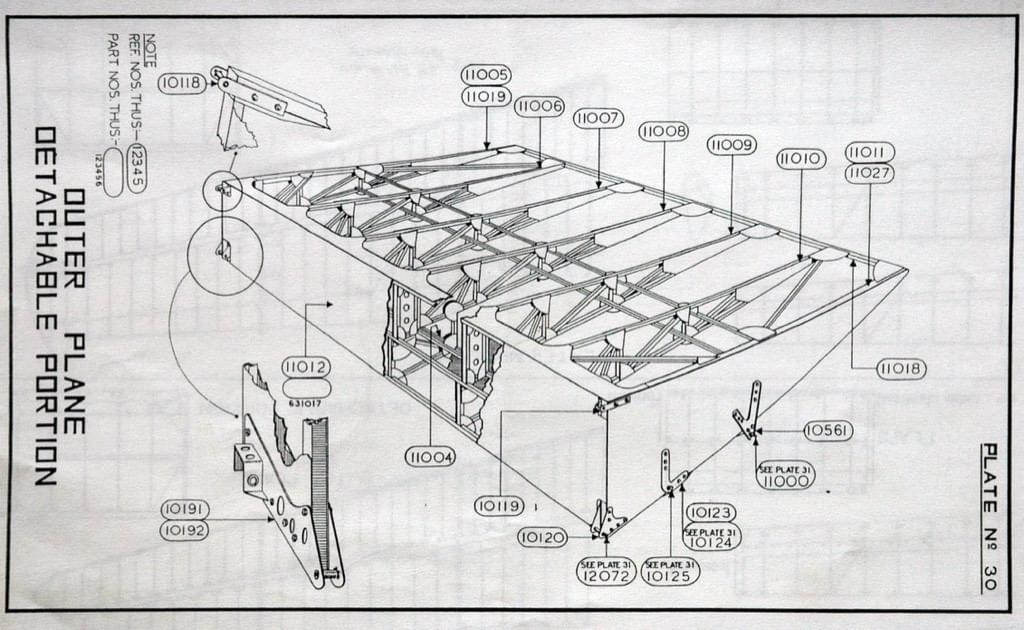

  • Horsa_Plans 11

    My Album Horsa_Plans 11

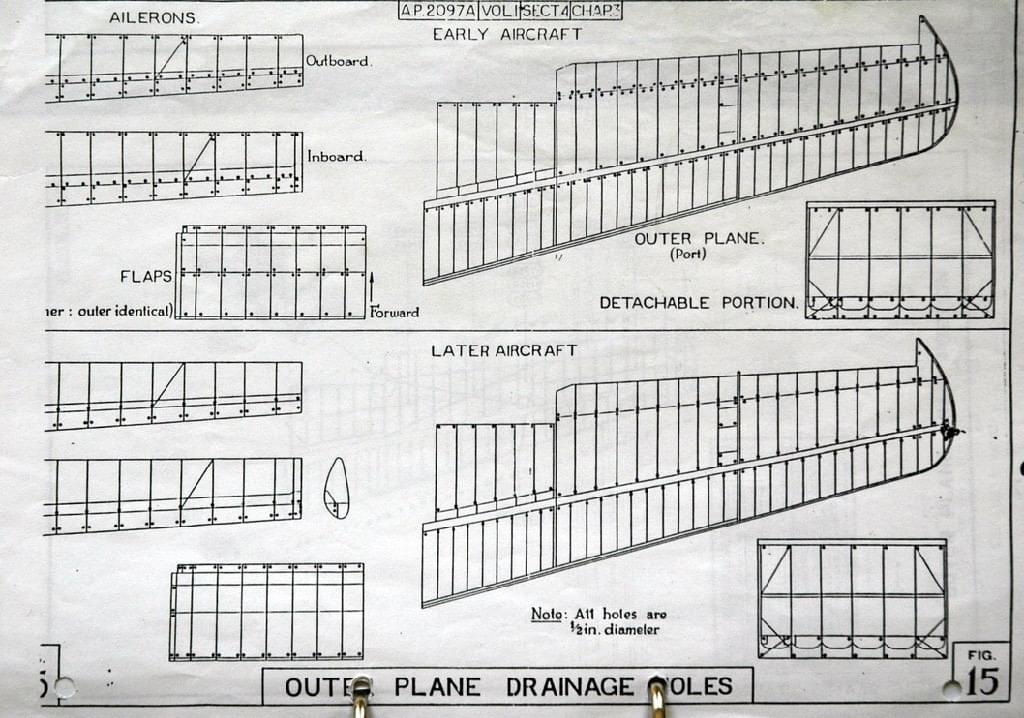

  • Horsa_Plans 12

    My Album Horsa_Plans 12

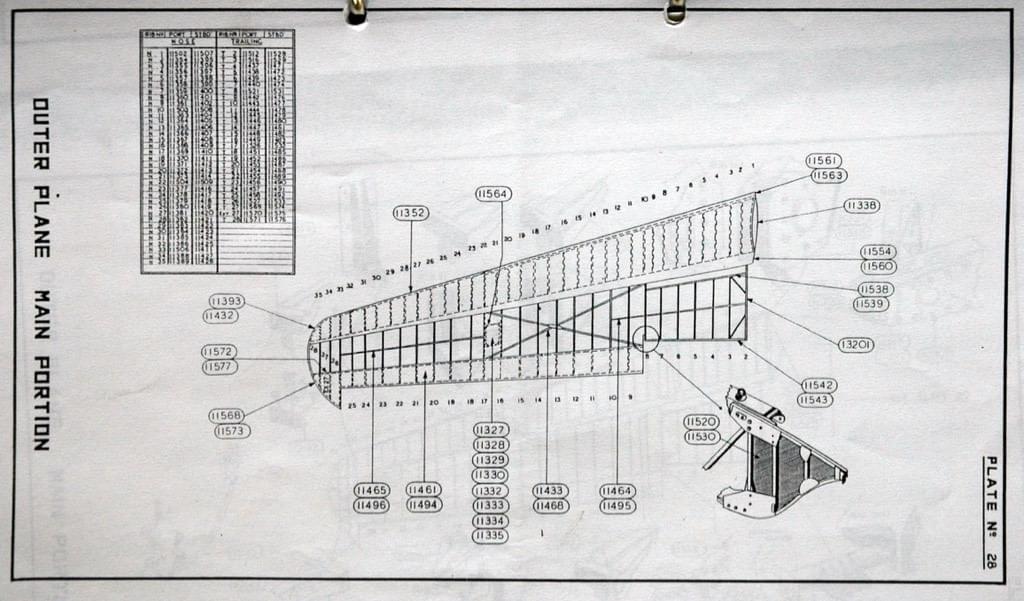

  • Horsa_Plans 13

    My Album Horsa_Plans 13

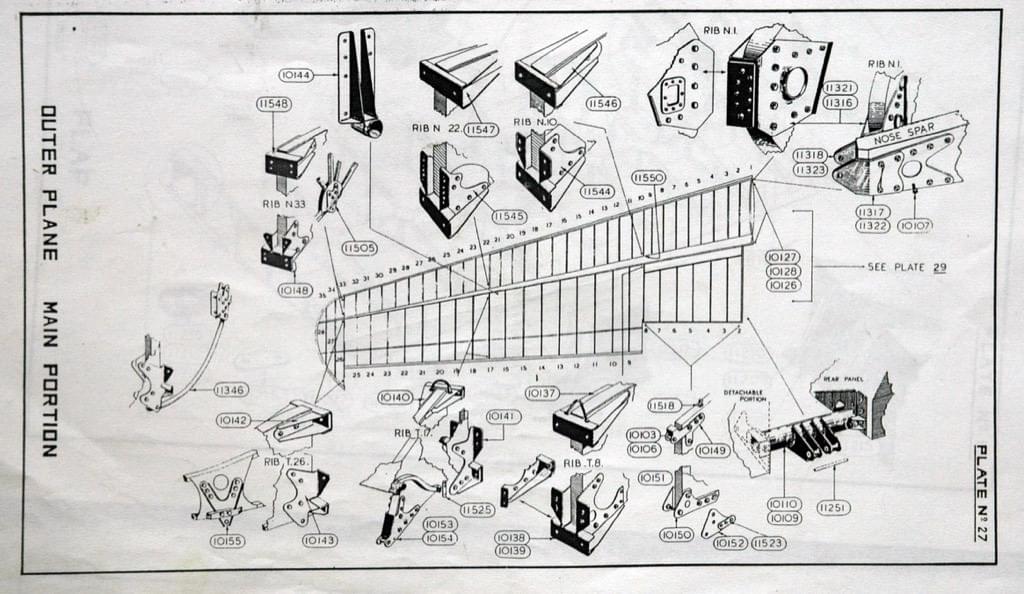

  • Horsa_Plans 14

    My Album Horsa_Plans 14

  • Horsa_Plans 15

    My Album Horsa_Plans 15

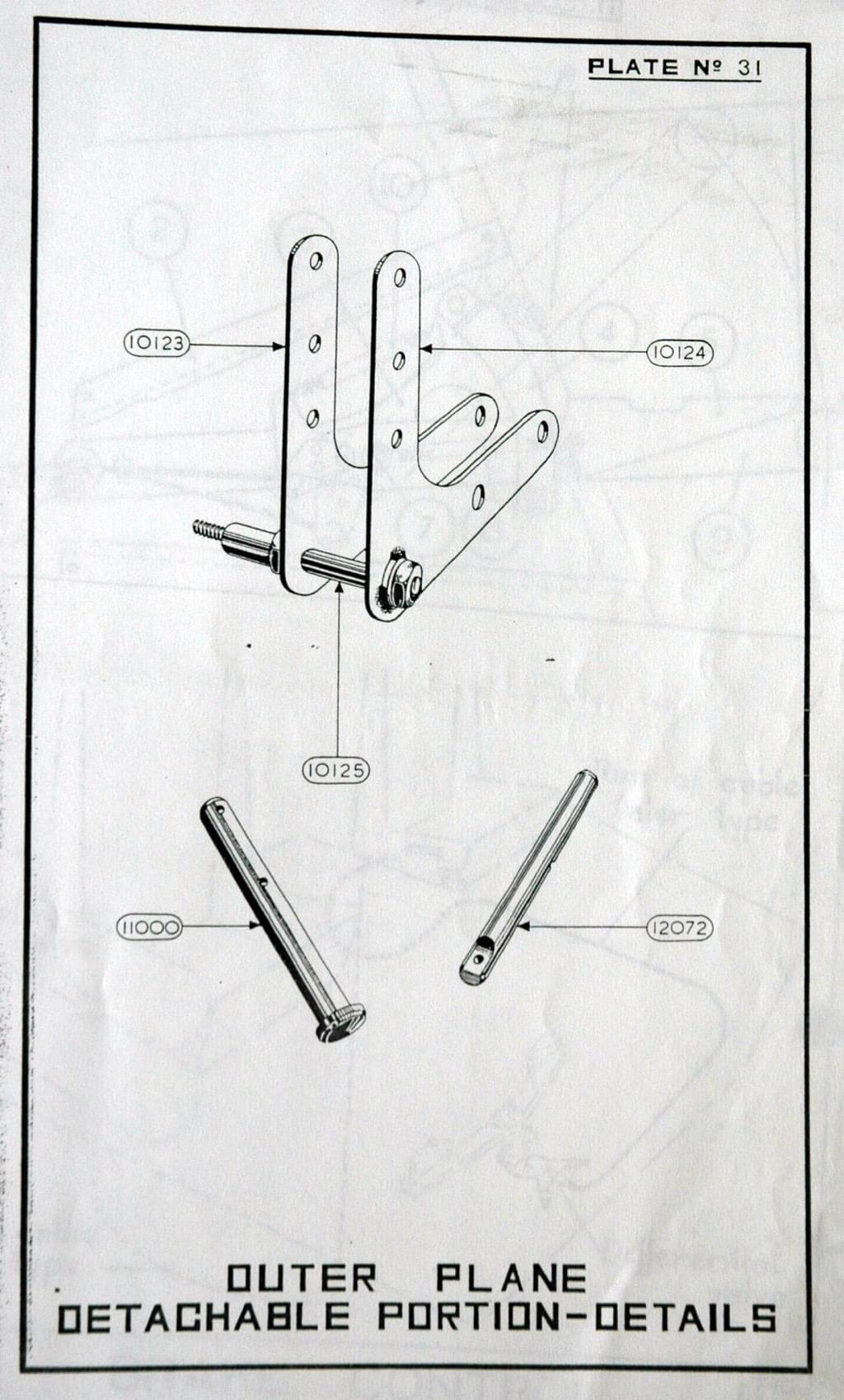

  • Horsa_Plans 16

    My Album Horsa_Plans 16

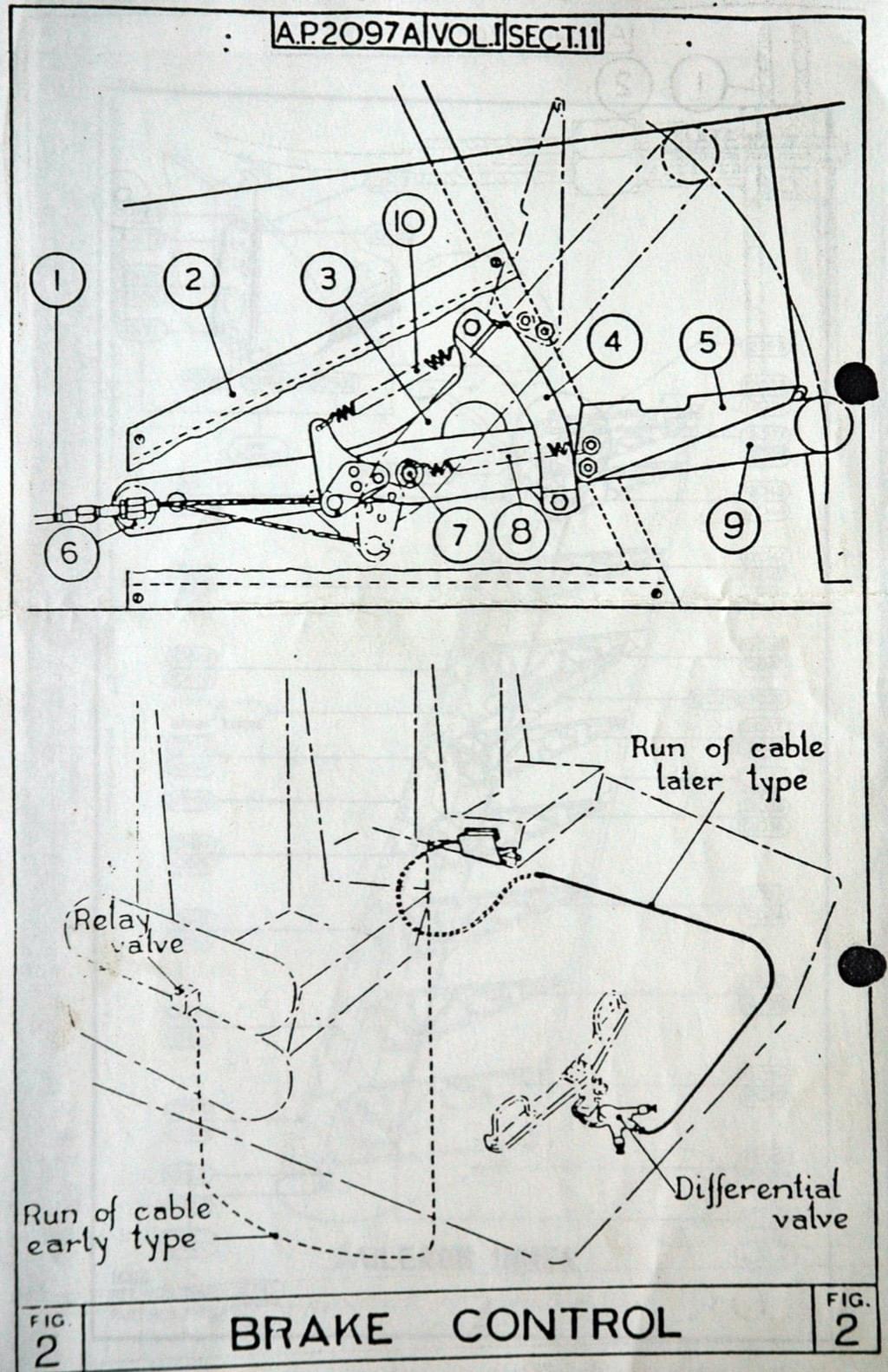

  • Horsa_Plans 17

    My Album Horsa_Plans 17

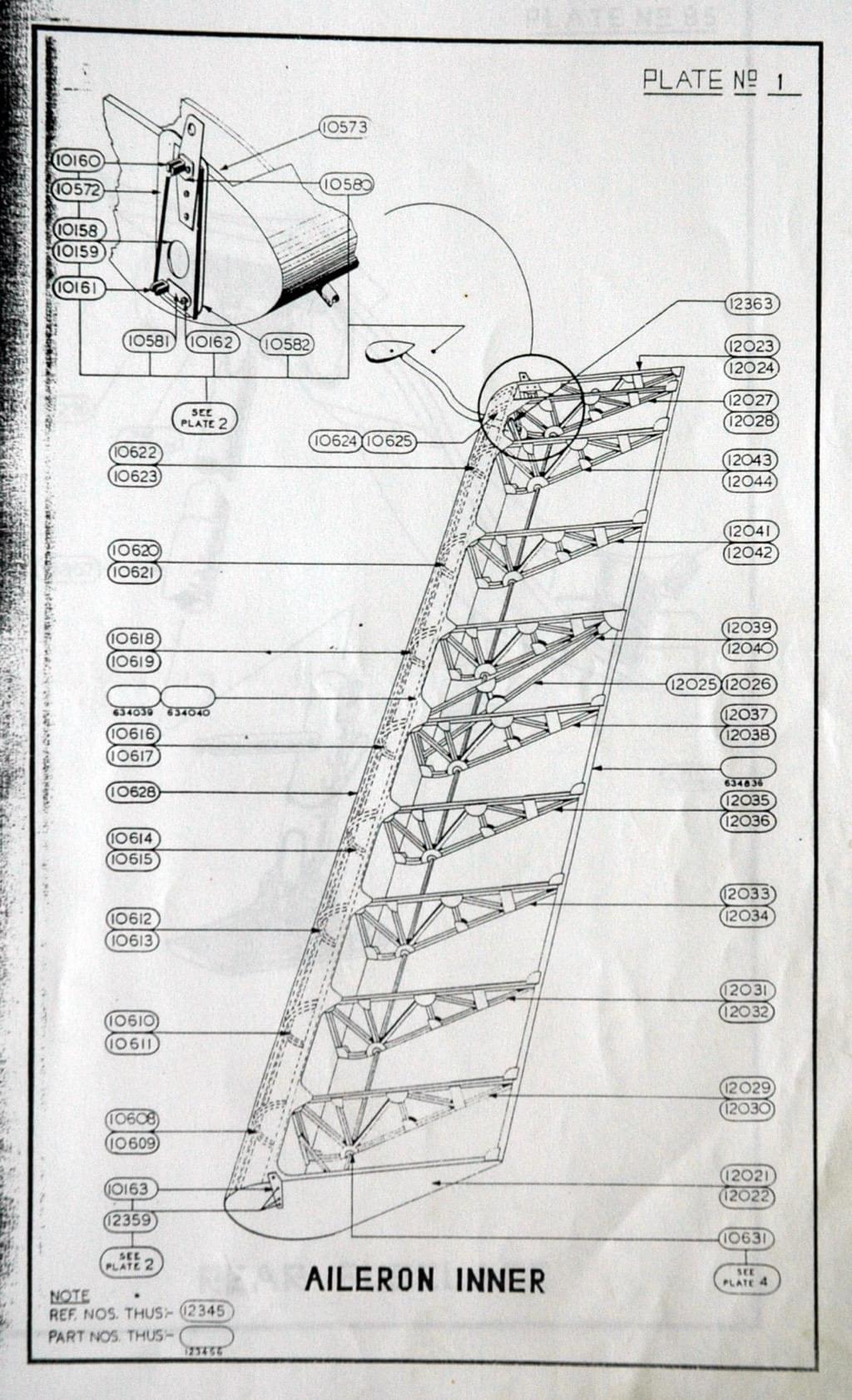

  • Horsa_Plans 18

    My Album Horsa_Plans 18

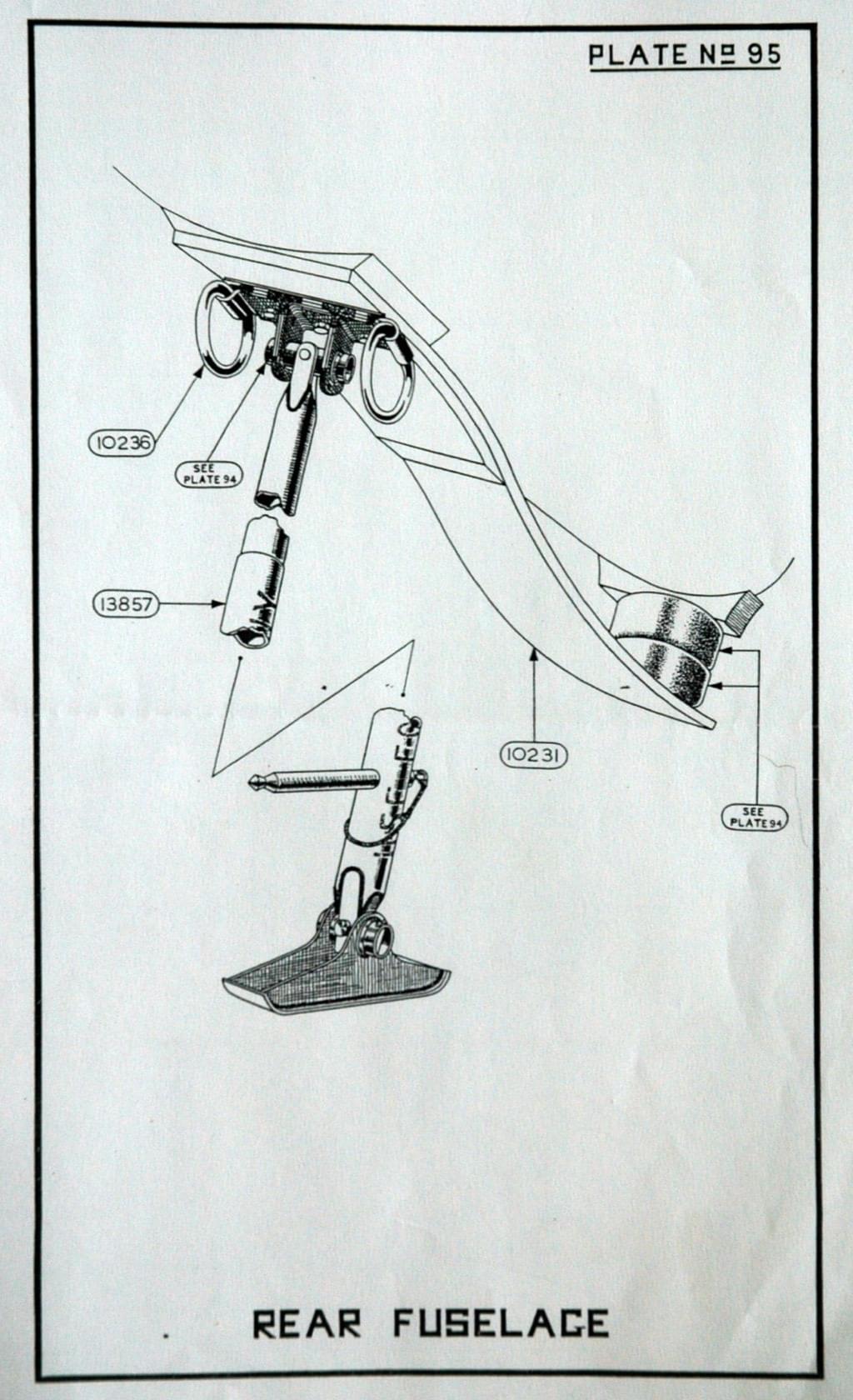

  • Horsa_Plans 19

    My Album Horsa_Plans 19

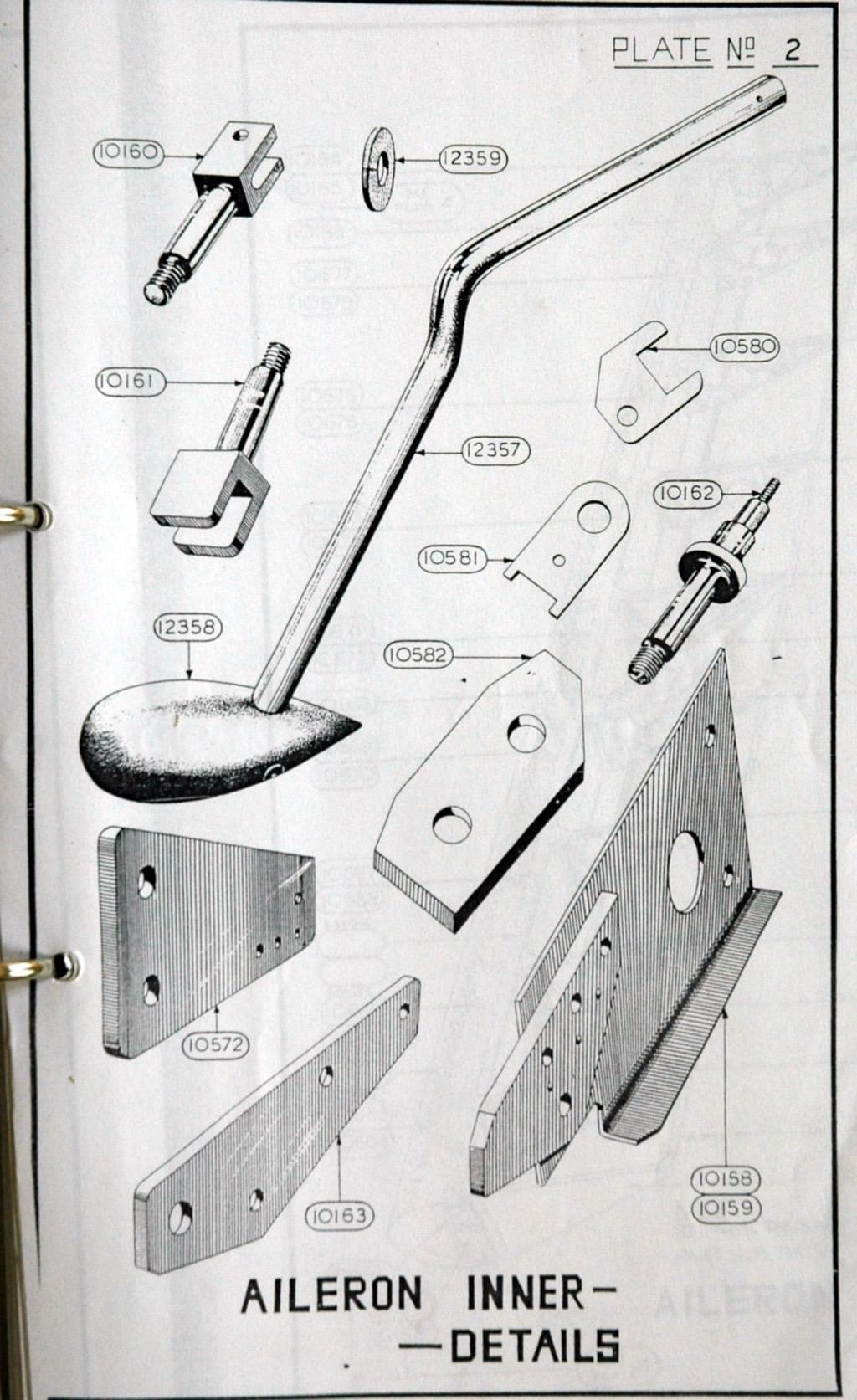

  • Horsa_Plans 20

    My Album Horsa_Plans 20

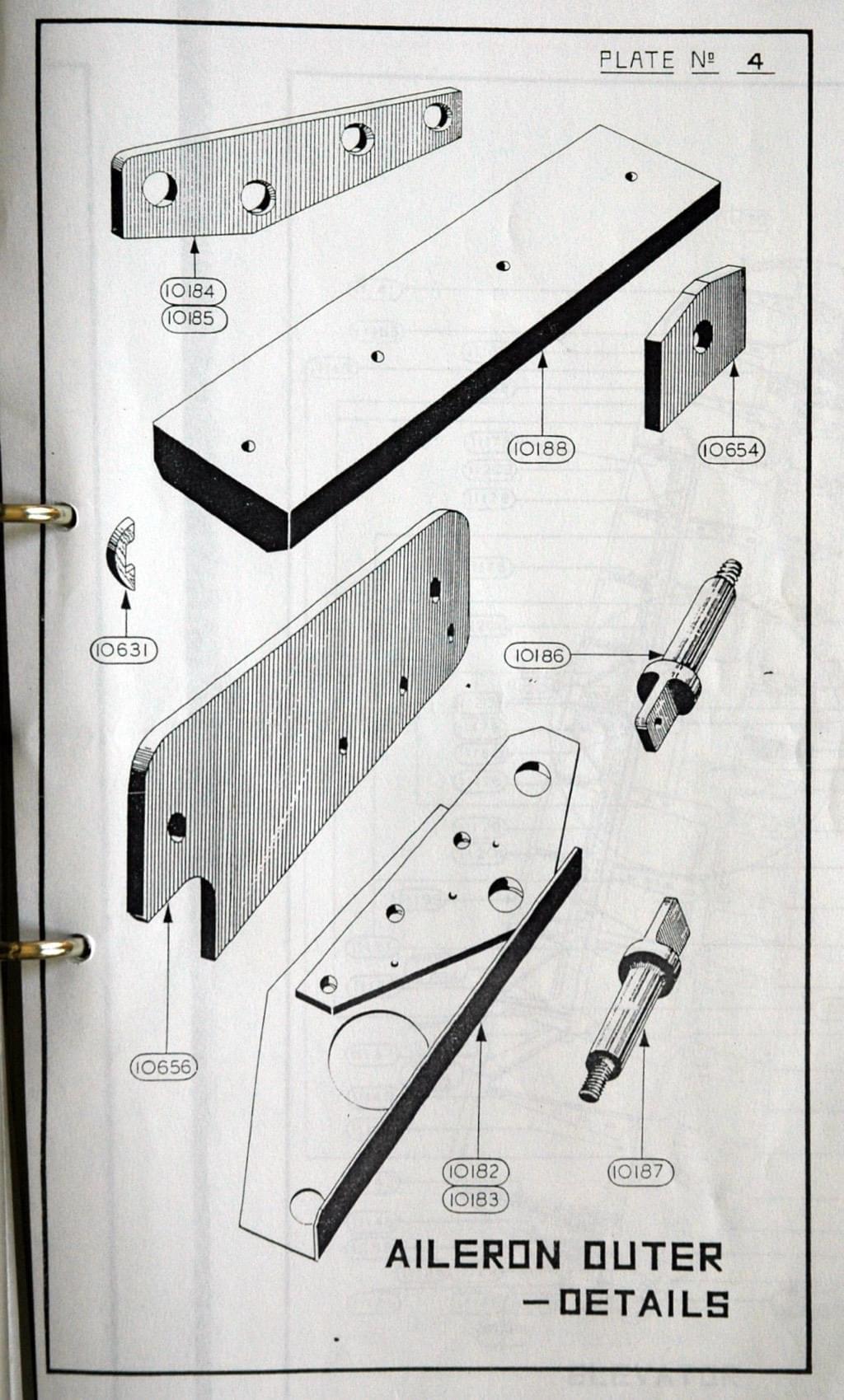

  • Horsa_Plans 21

    My Album Horsa_Plans 21

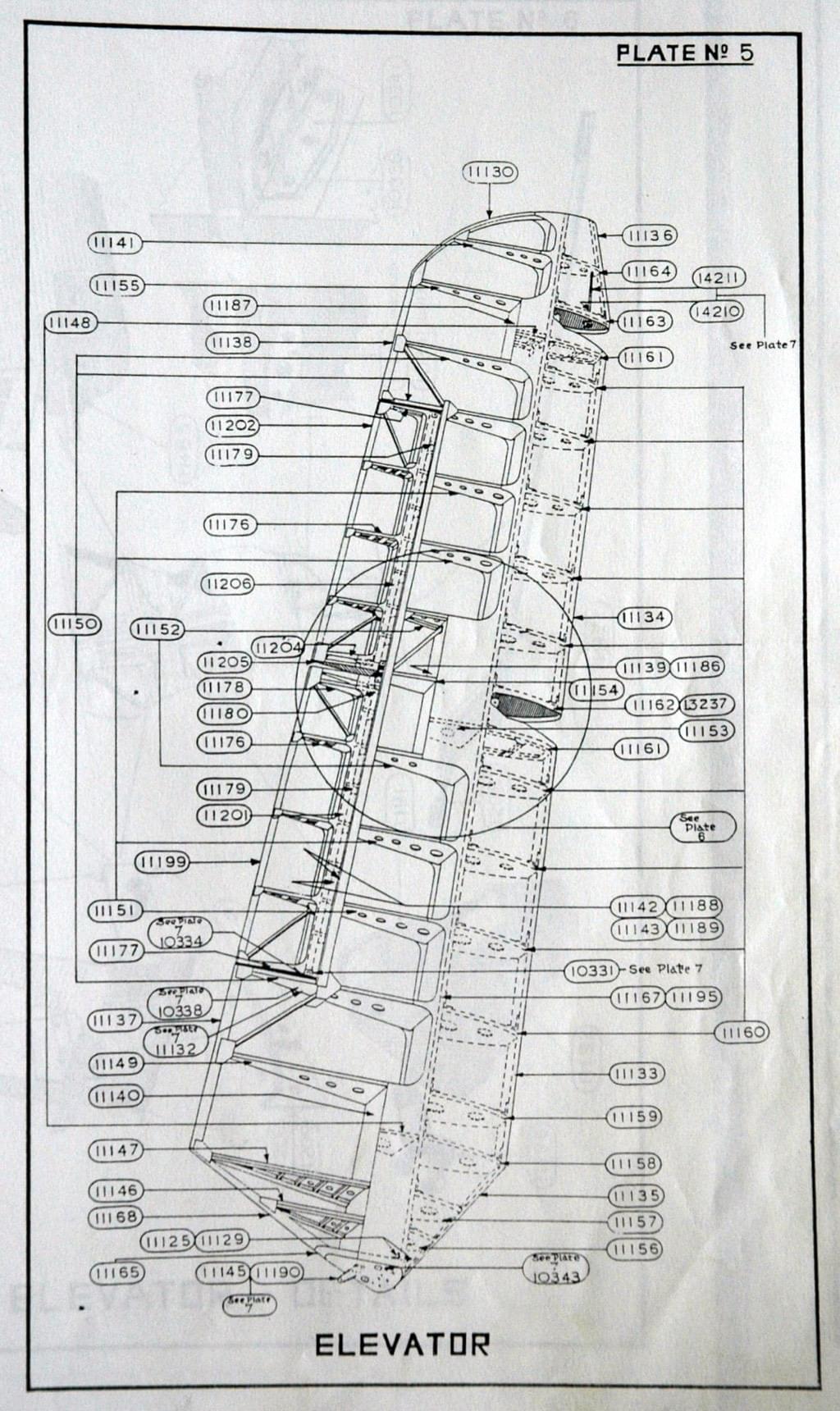

  • Horsa_Plans 22

    My Album Horsa_Plans 22

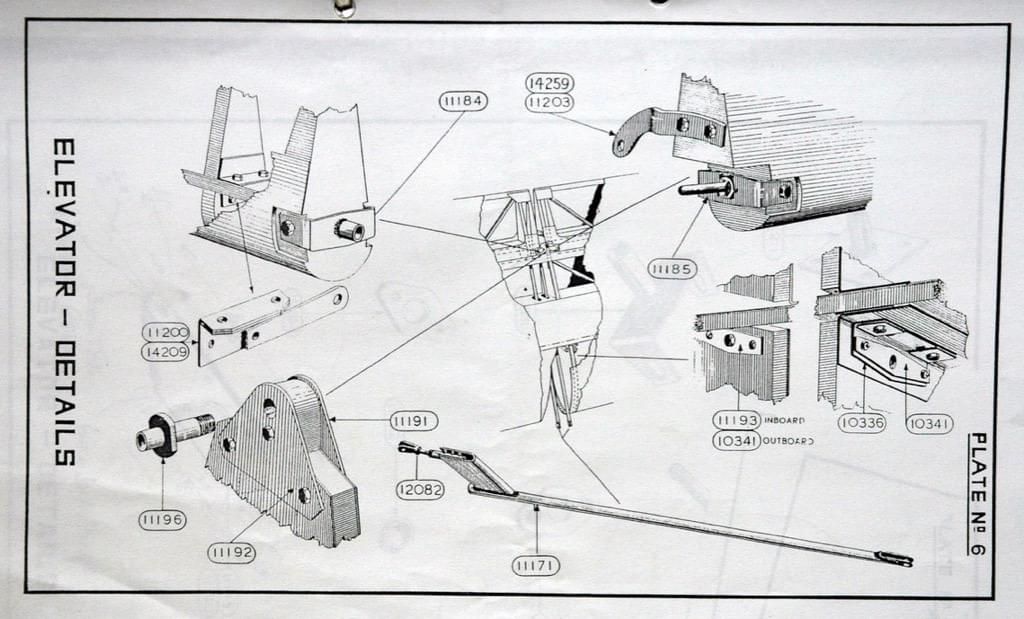

  • Horsa_Plans 23

    My Album Horsa_Plans 23

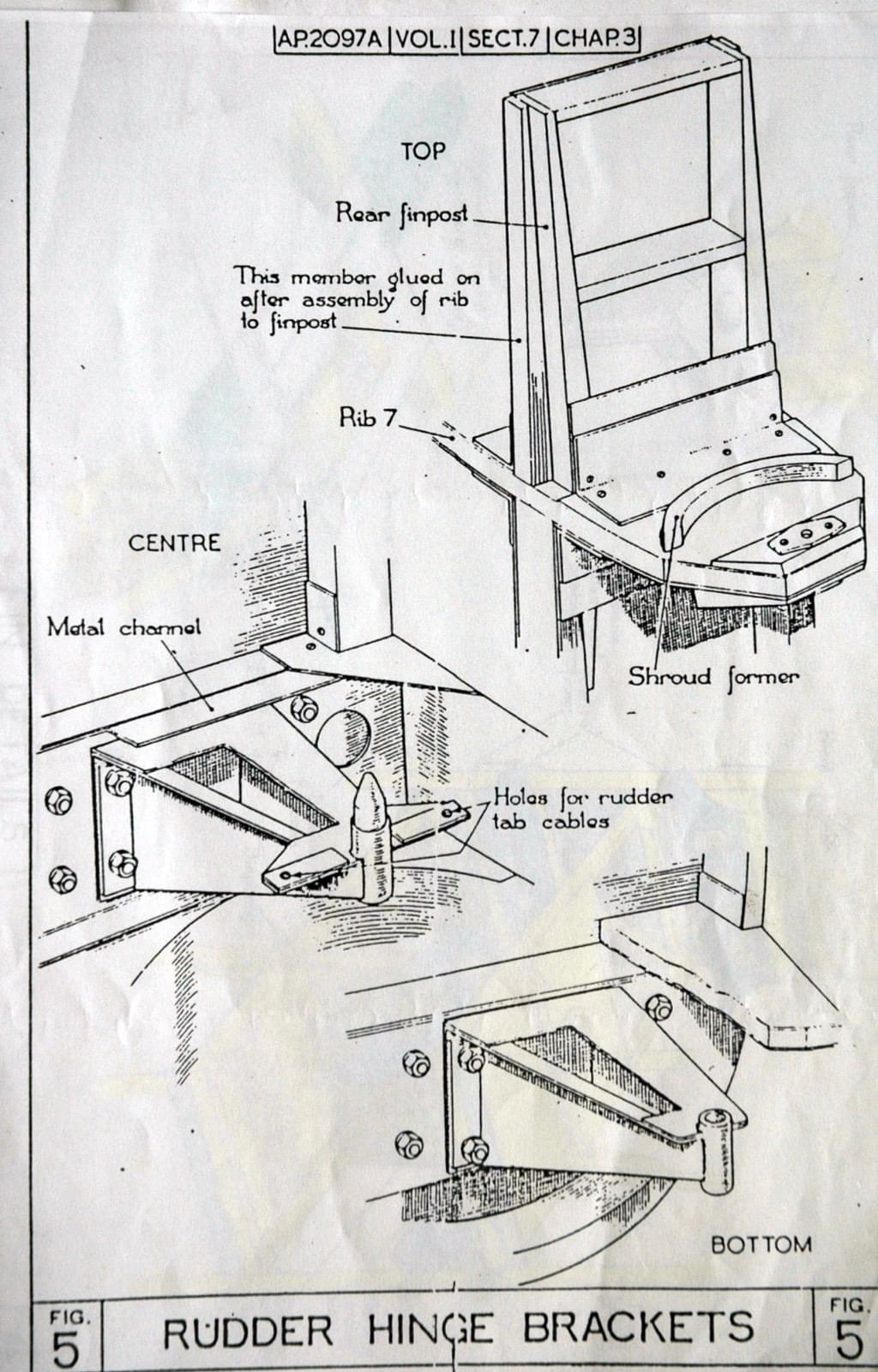

  • Horsa_Plans 24

    My Album Horsa_Plans 24

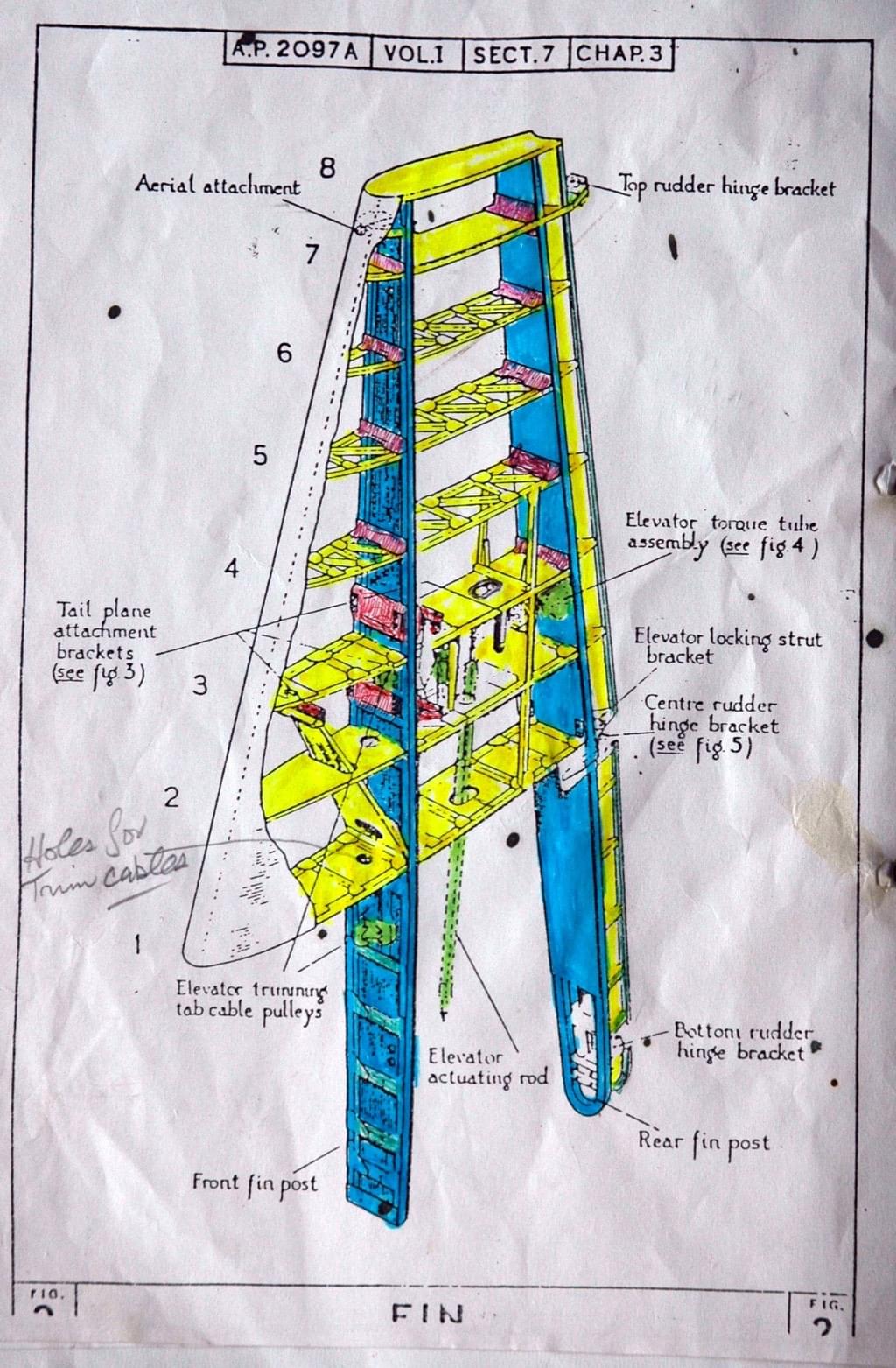

  • Horsa_Plans 25

    My Album Horsa_Plans 25

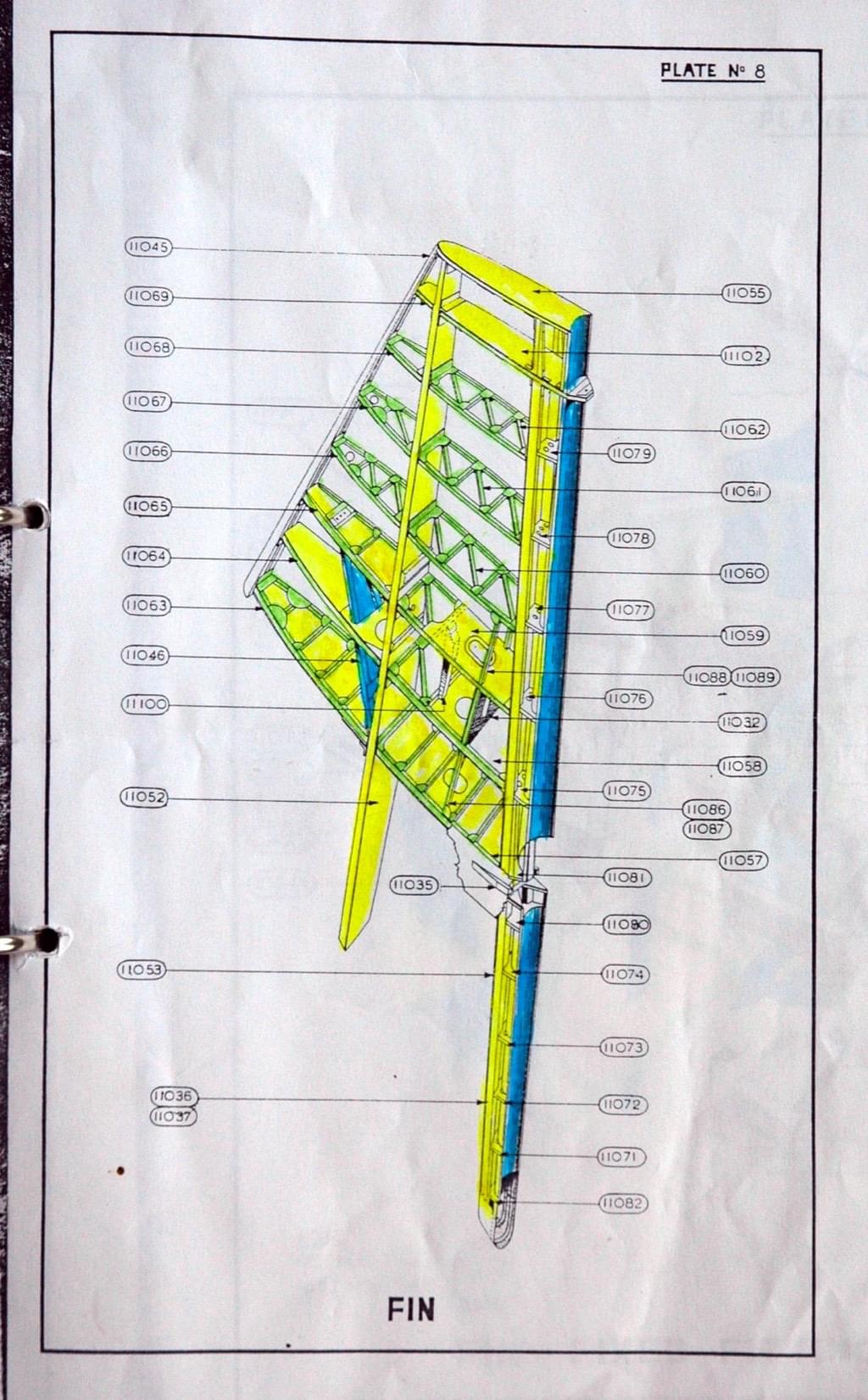

  • Horsa_Plans 26

    My Album Horsa_Plans 26

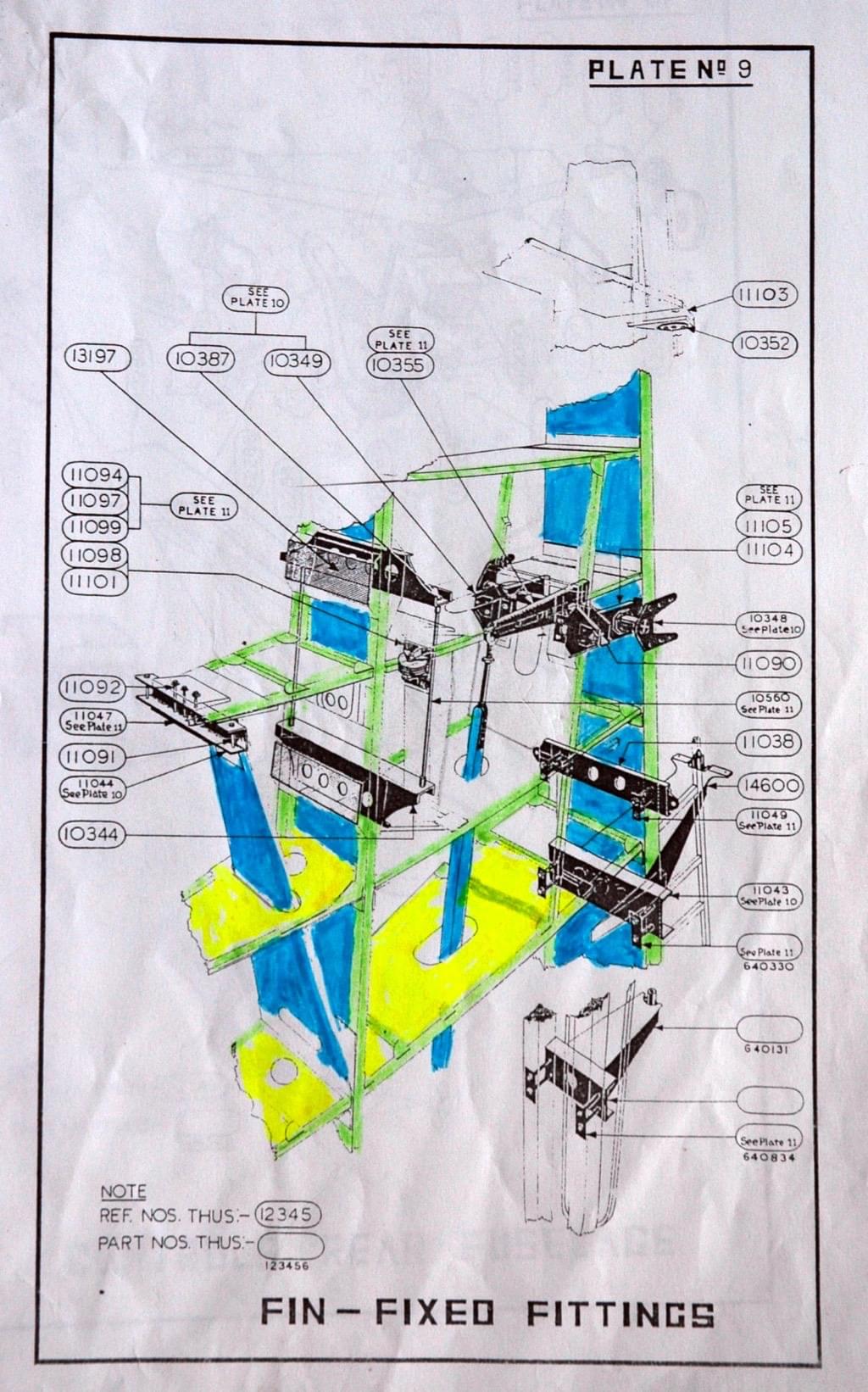

  • Horsa_Plans 27

    My Album Horsa_Plans 27

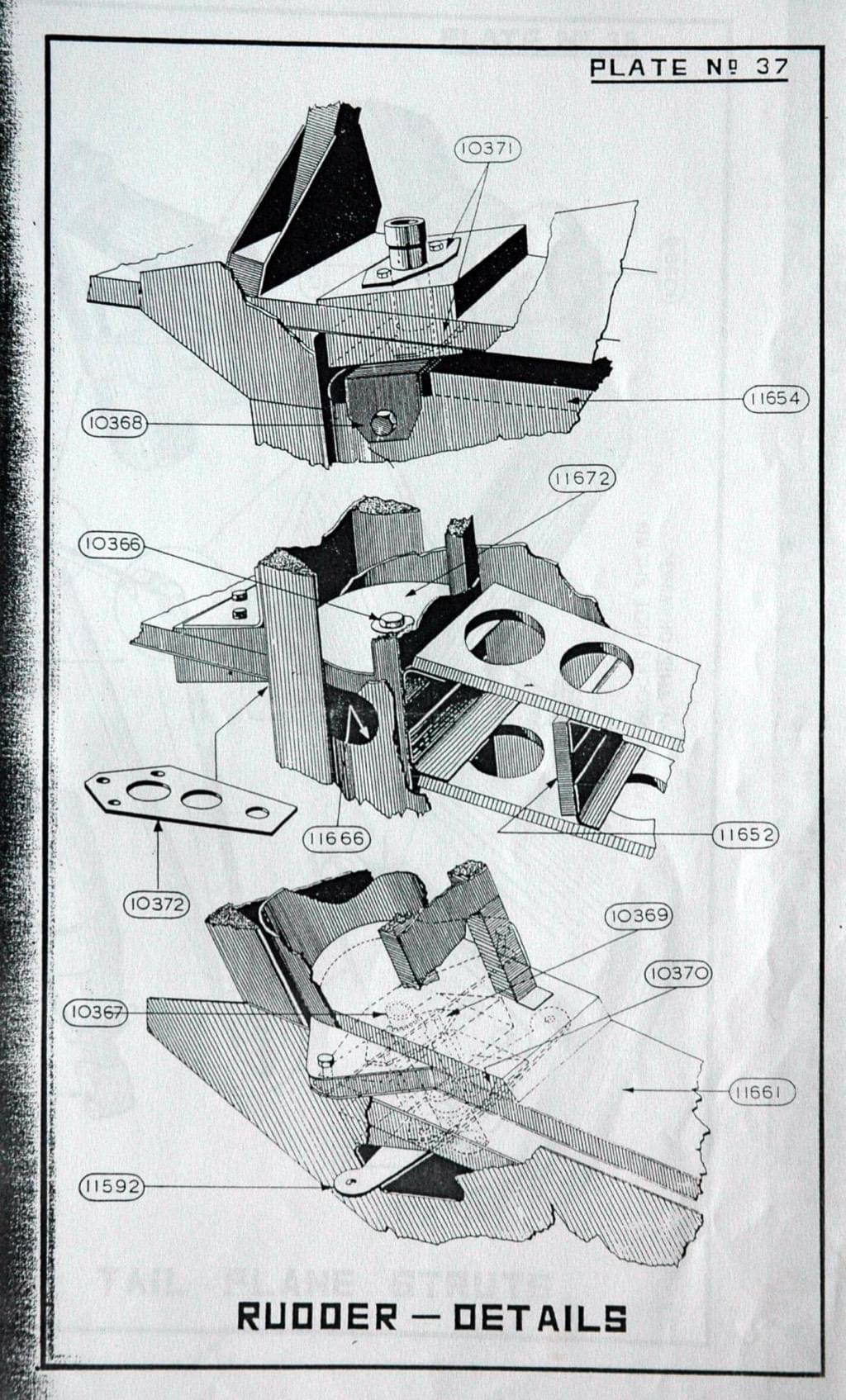

  • Horsa_Plans 29

    My Album Horsa_Plans 29

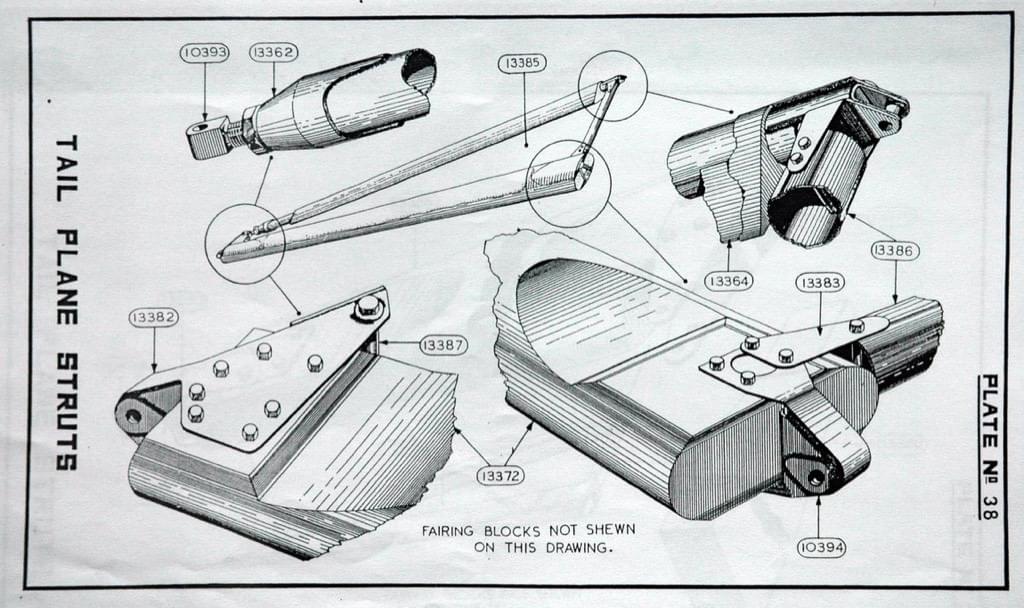

  • Horsa_Plans 30

    My Album Horsa_Plans 30

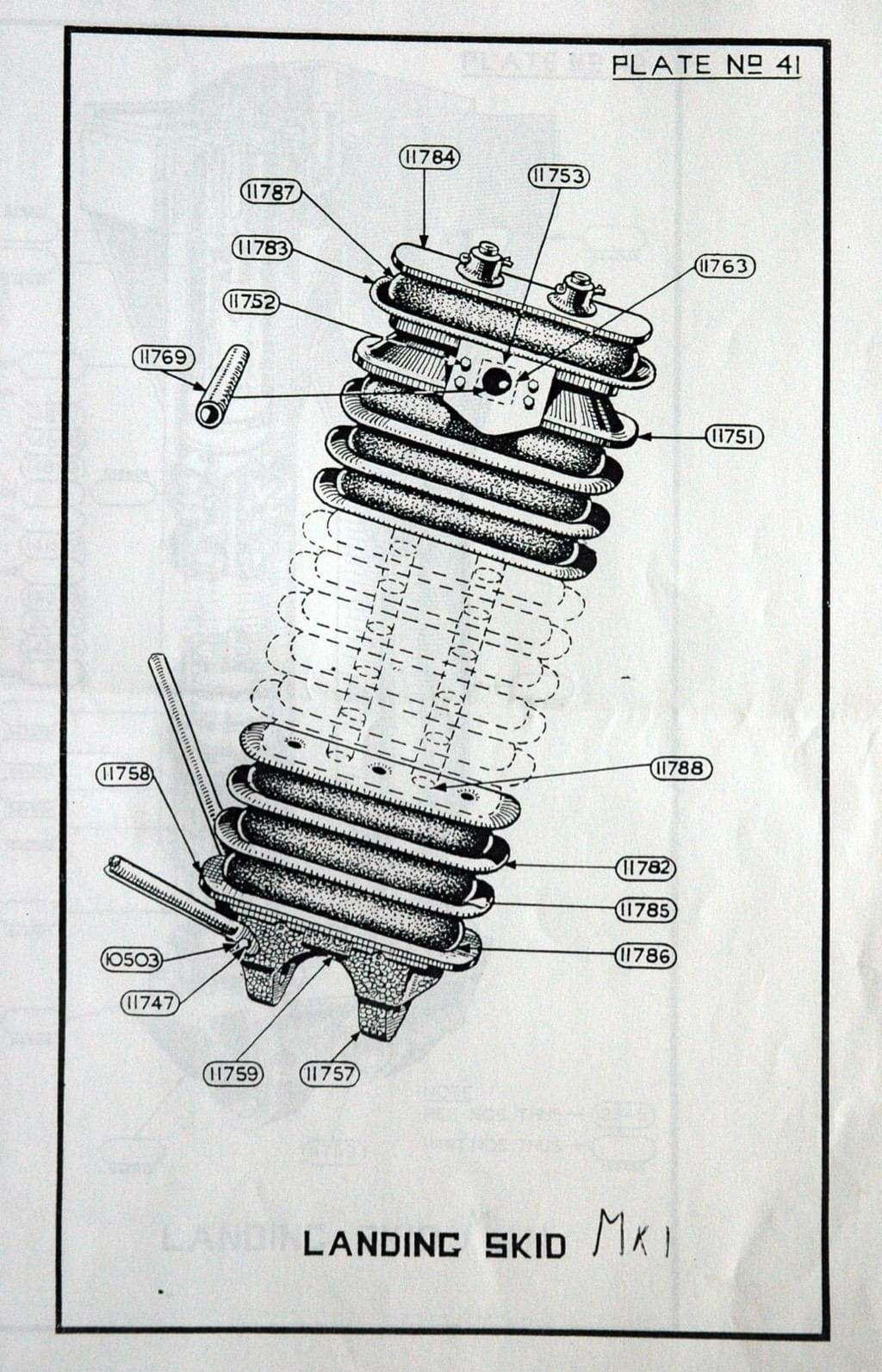

  • Horsa_Plans 33

    My Album Horsa_Plans 33

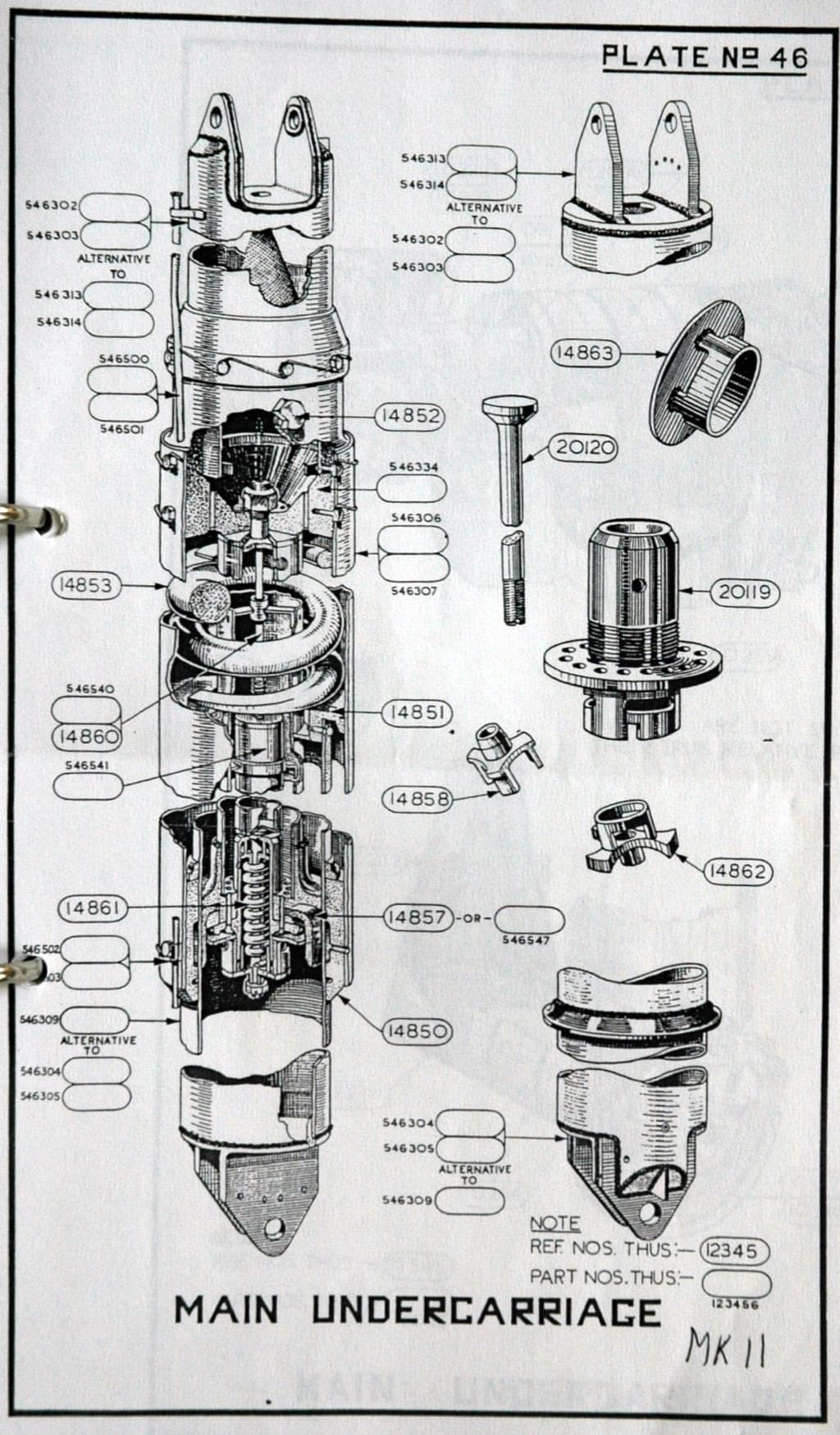

  • Horsa_Plans 35

    My Album Horsa_Plans 35

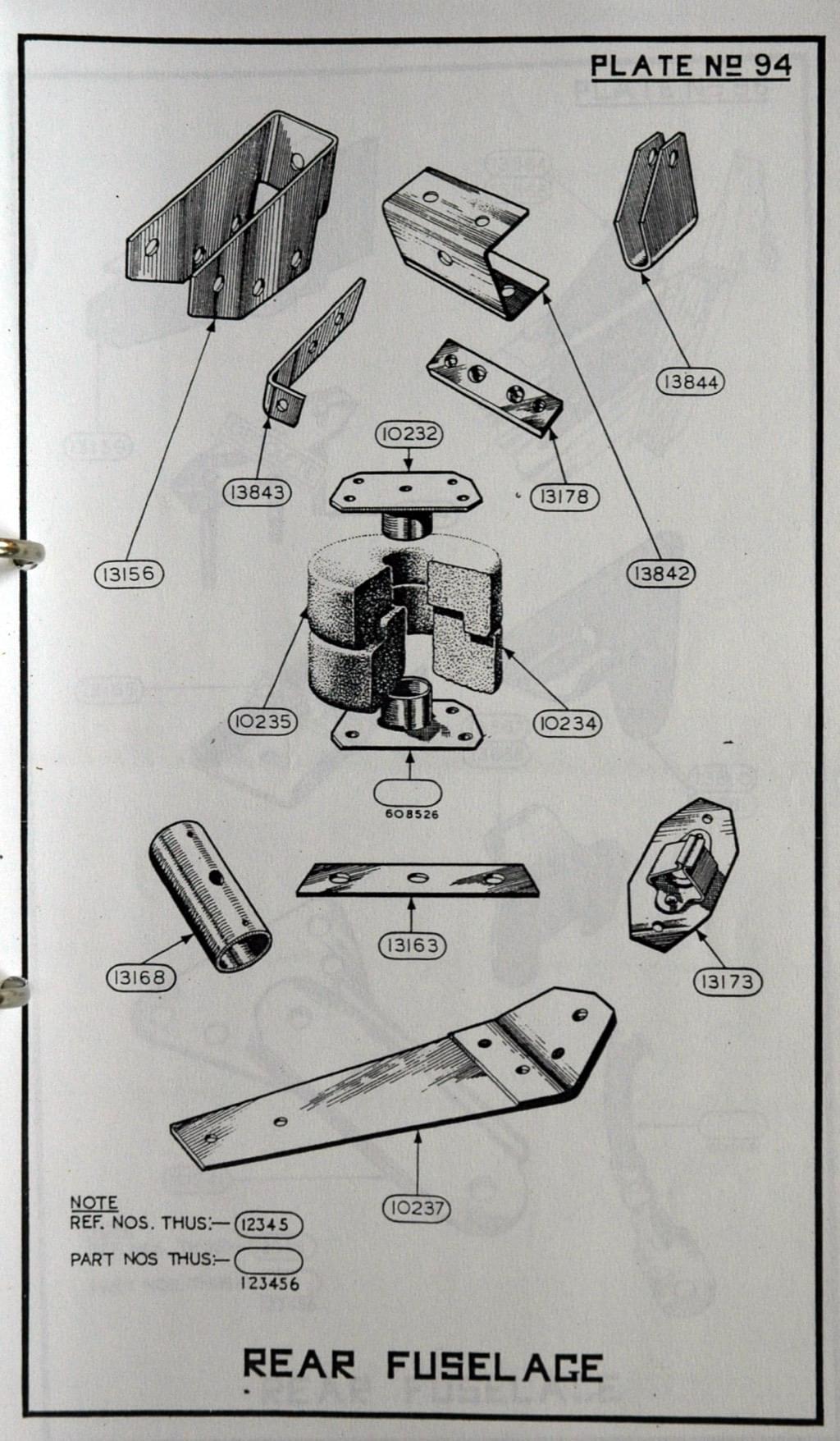

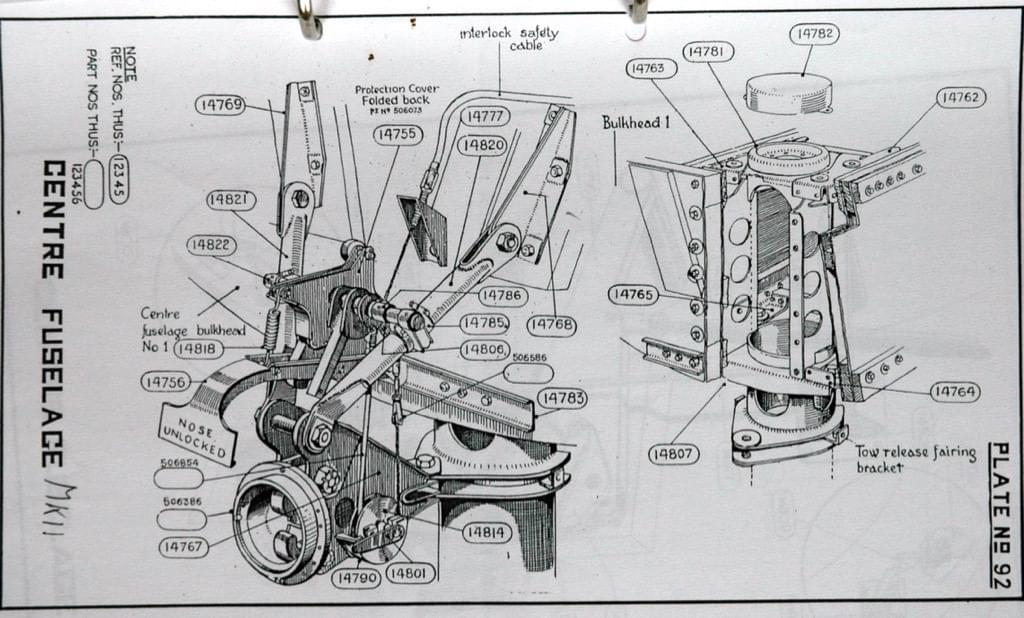

  • Horsa_Plans 44

    My Album Horsa_Plans 44

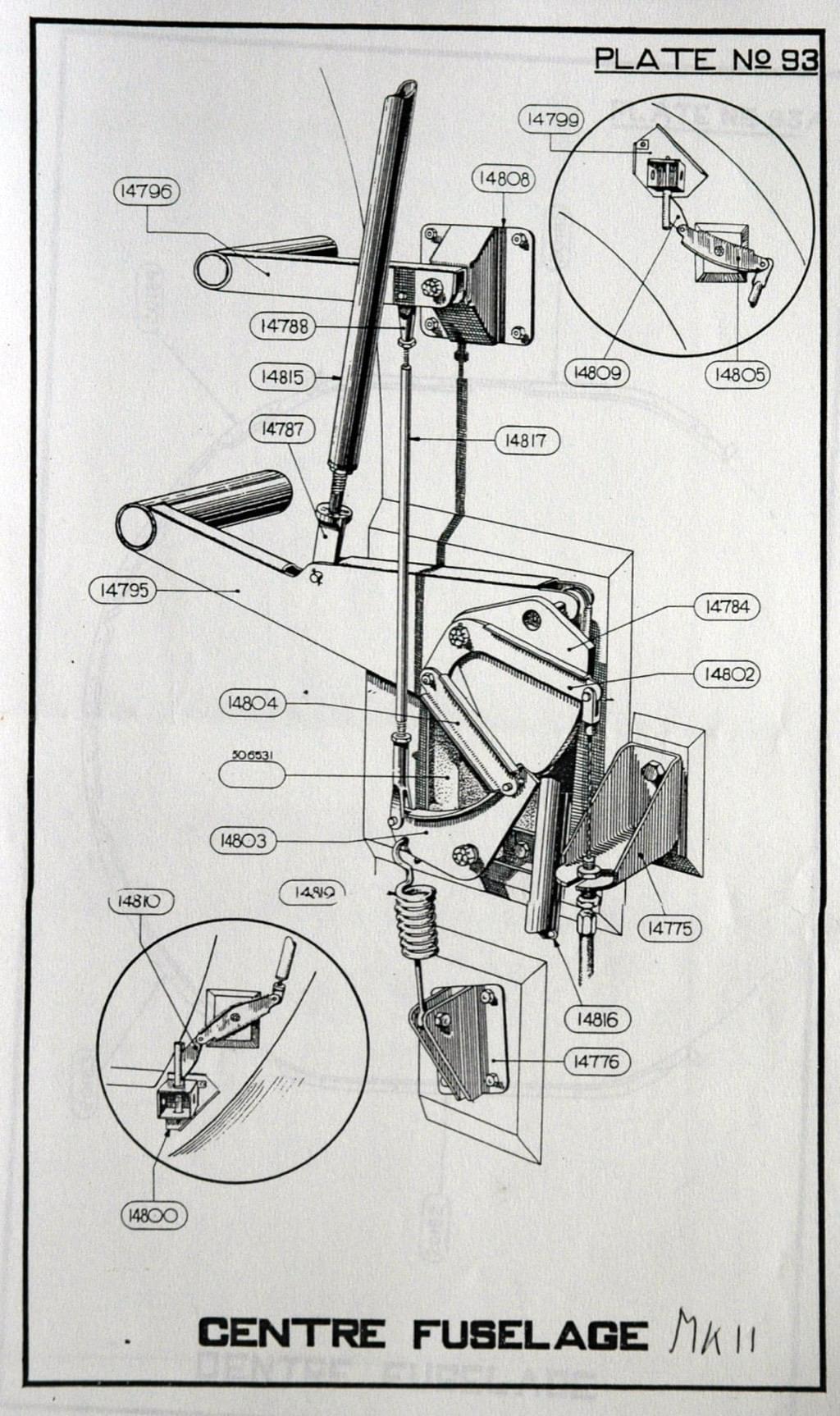

  • Horsa_Plans 45

    My Album Horsa_Plans 45

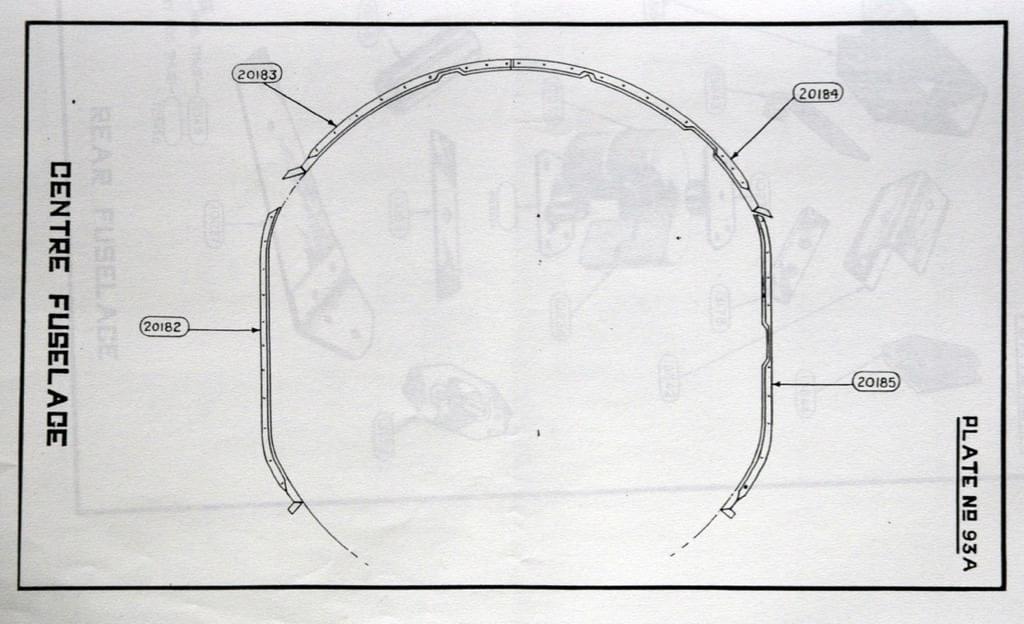

  • Horsa_Plans 46

    My Album Horsa_Plans 46

  • Horsa_Plans 47

    My Album Horsa_Plans 47

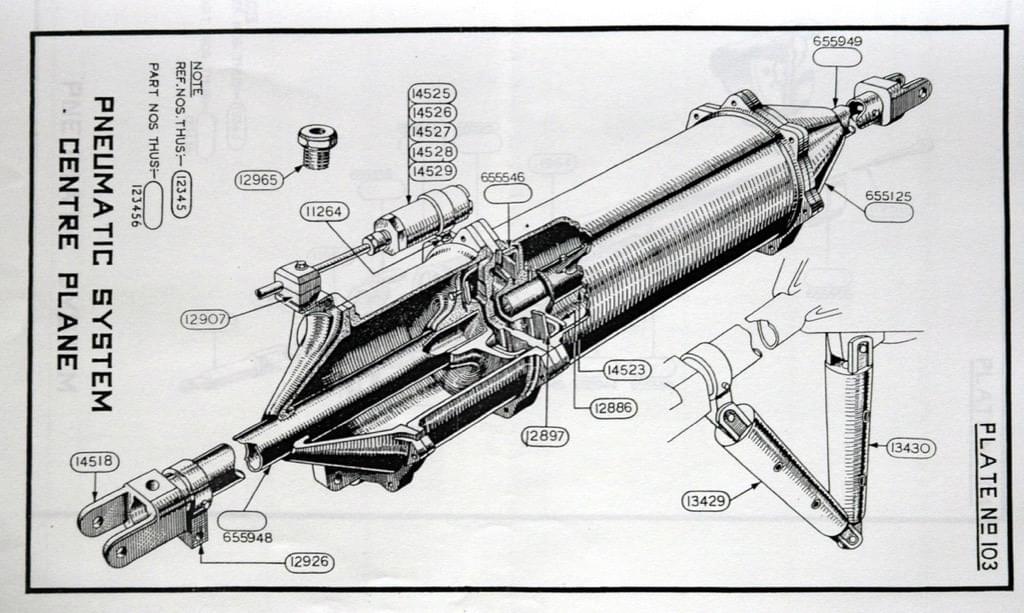

  • Horsa_Plans 51

    My Album Horsa_Plans 51

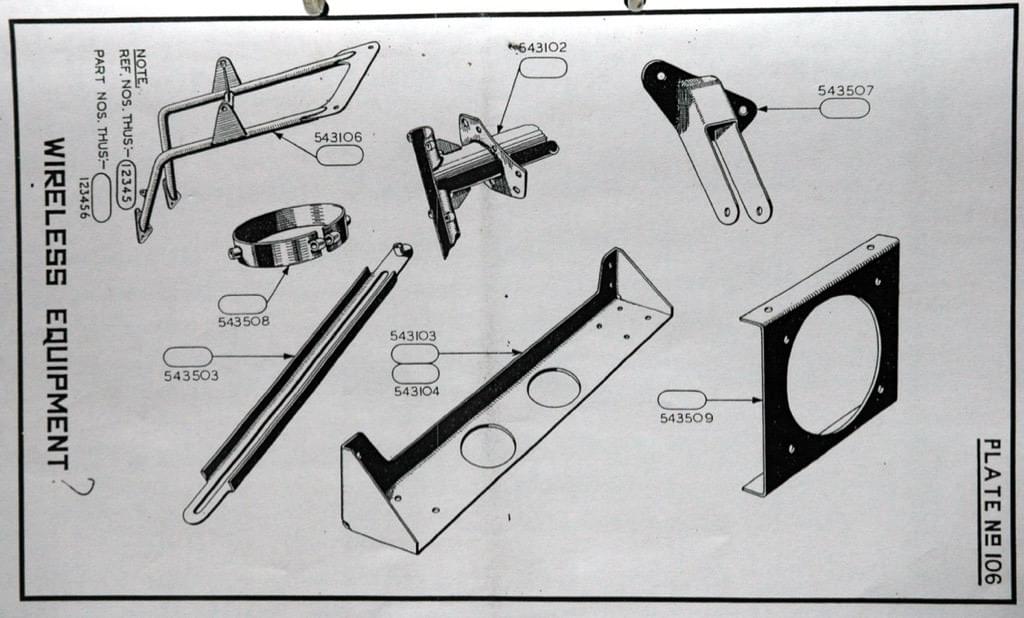

  • Horsa_Plans 52

    My Album Horsa_Plans 52

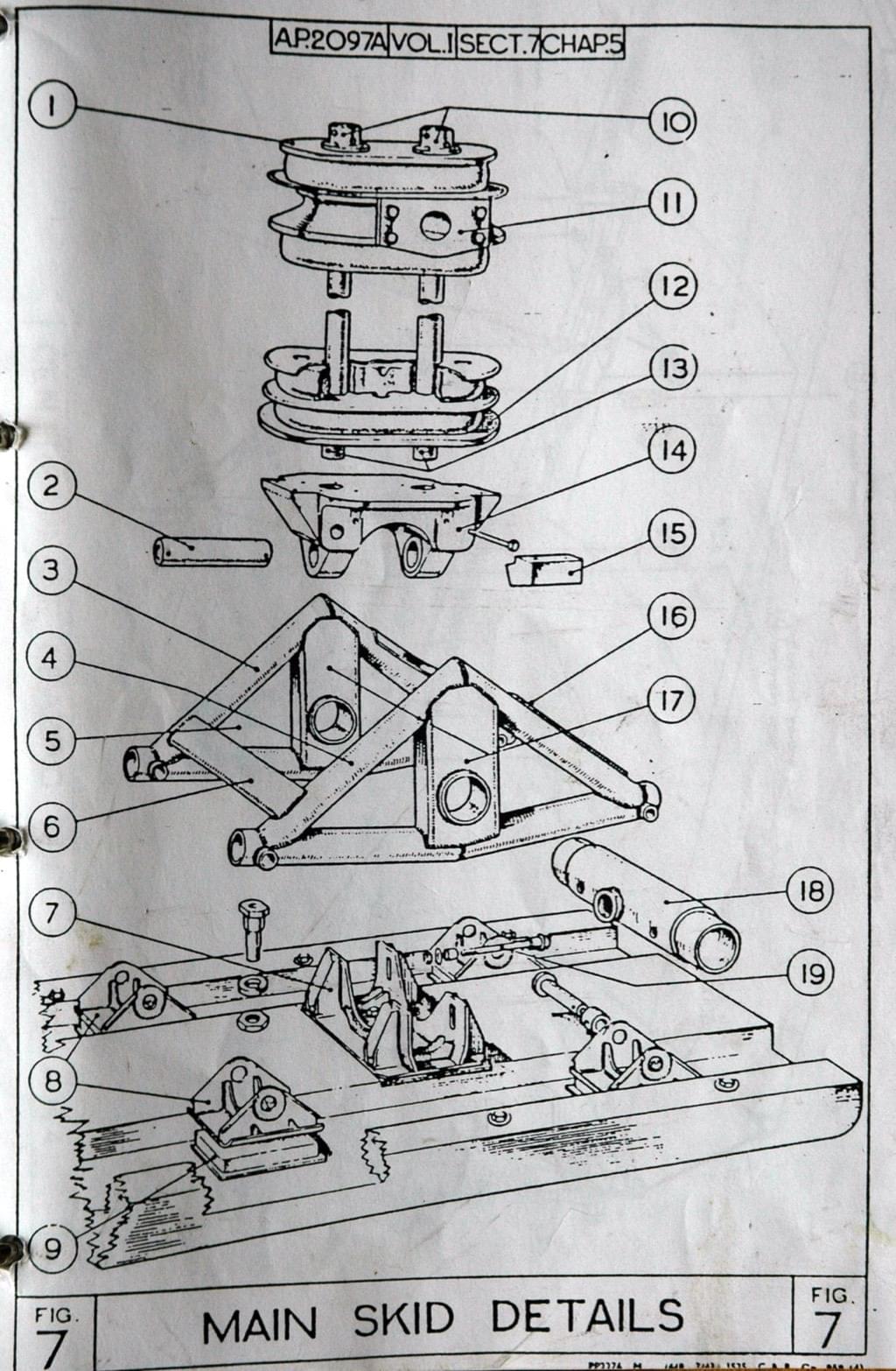

  • Horsa_Plans 53

    My Album Horsa_Plans 53

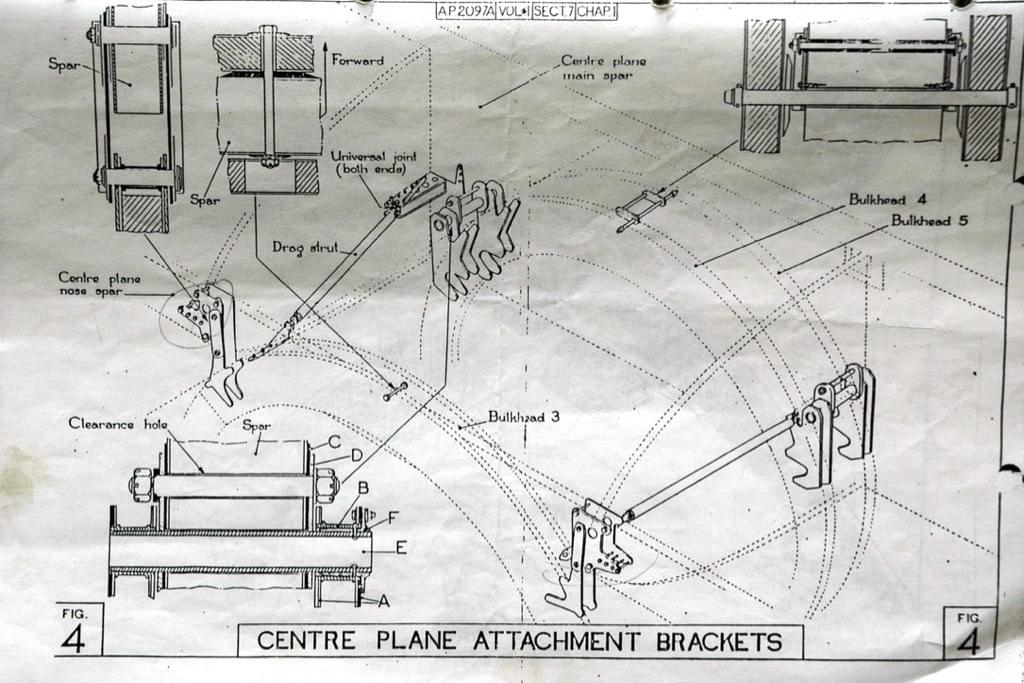

  • Horsa_Plans 55

    My Album Horsa_Plans 55

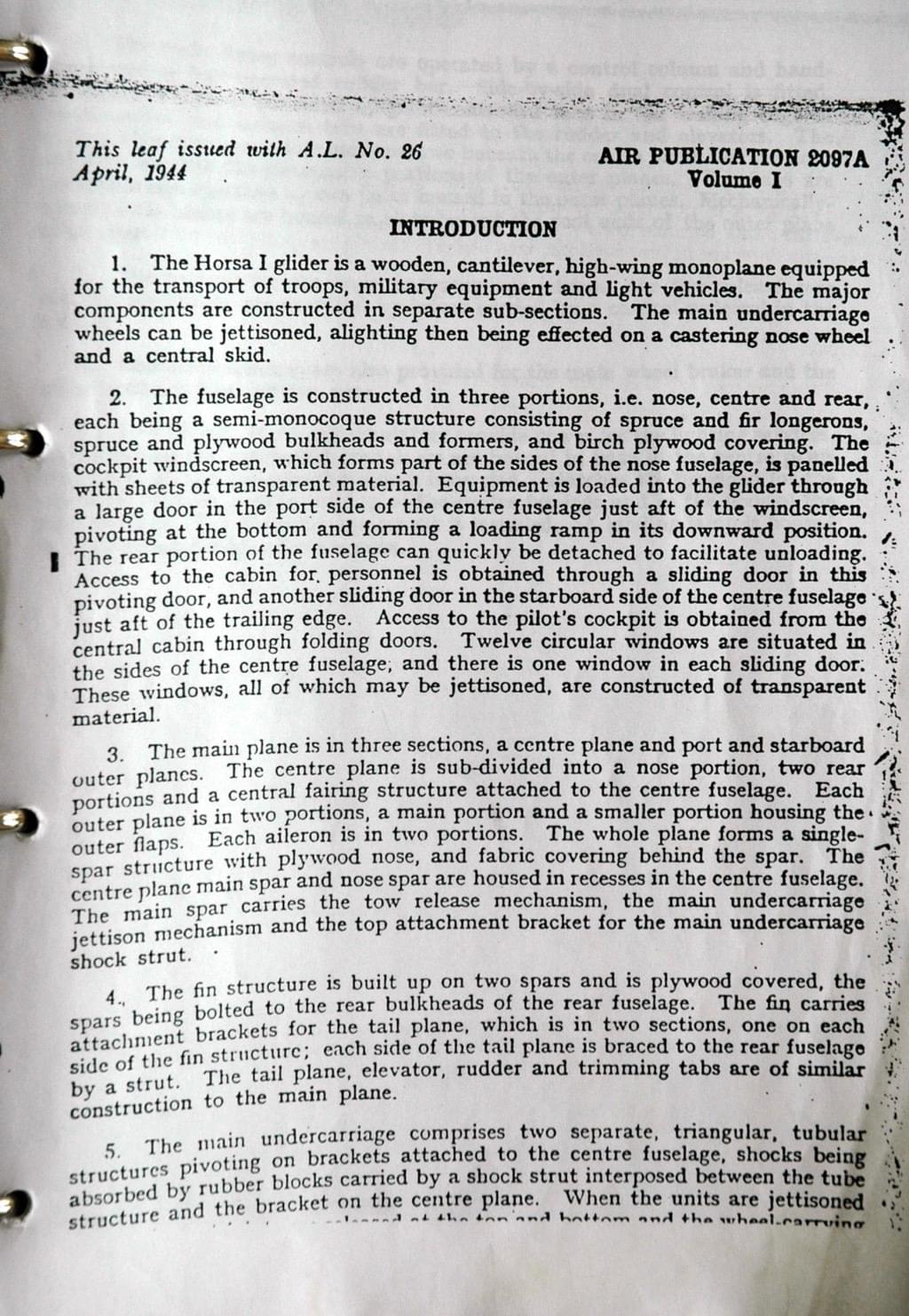

  • Horsa_Plans 60

    My Album Horsa_Plans 60

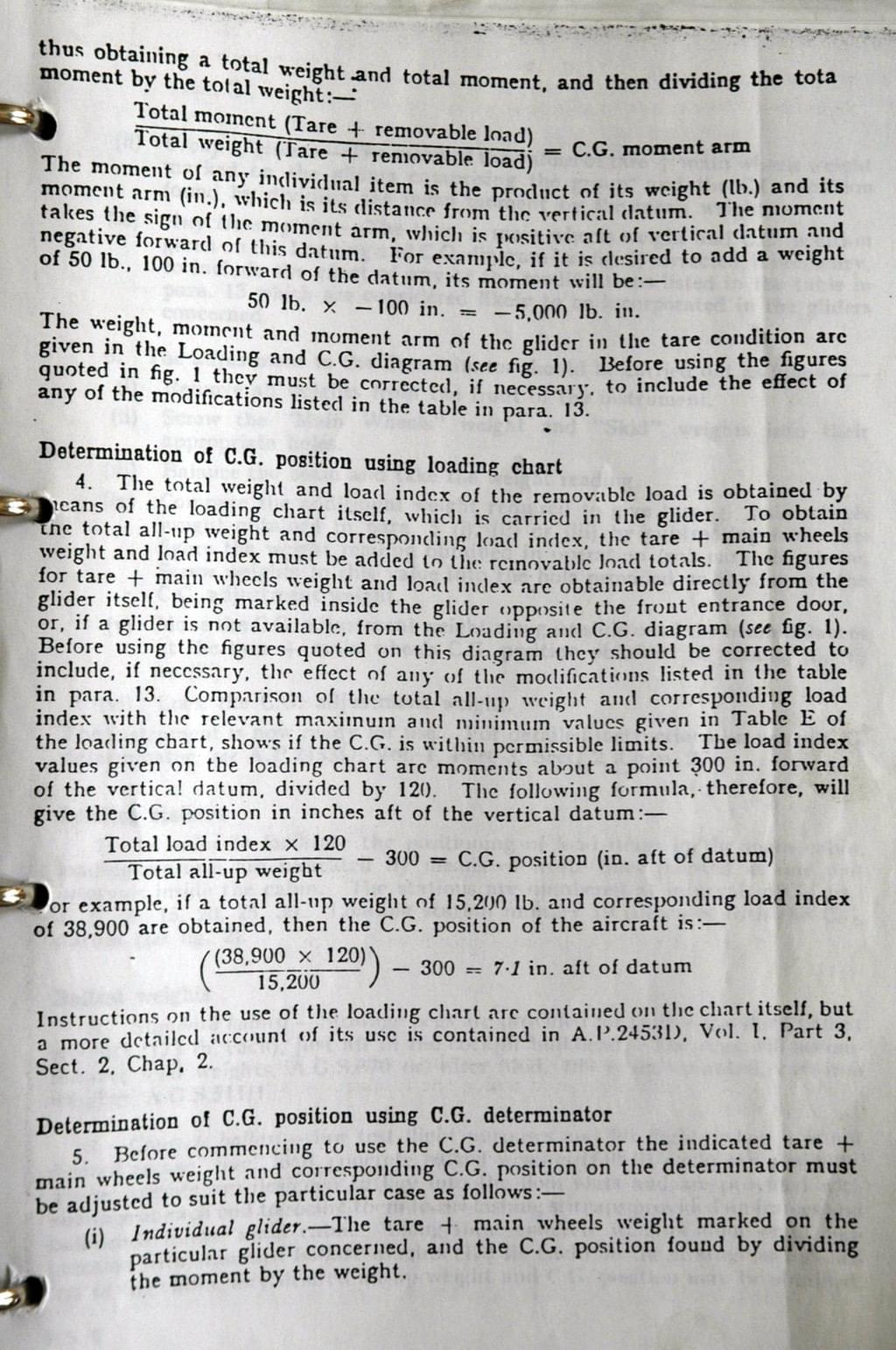

  • Horsa_Plans 62

    My Album Horsa_Plans 62

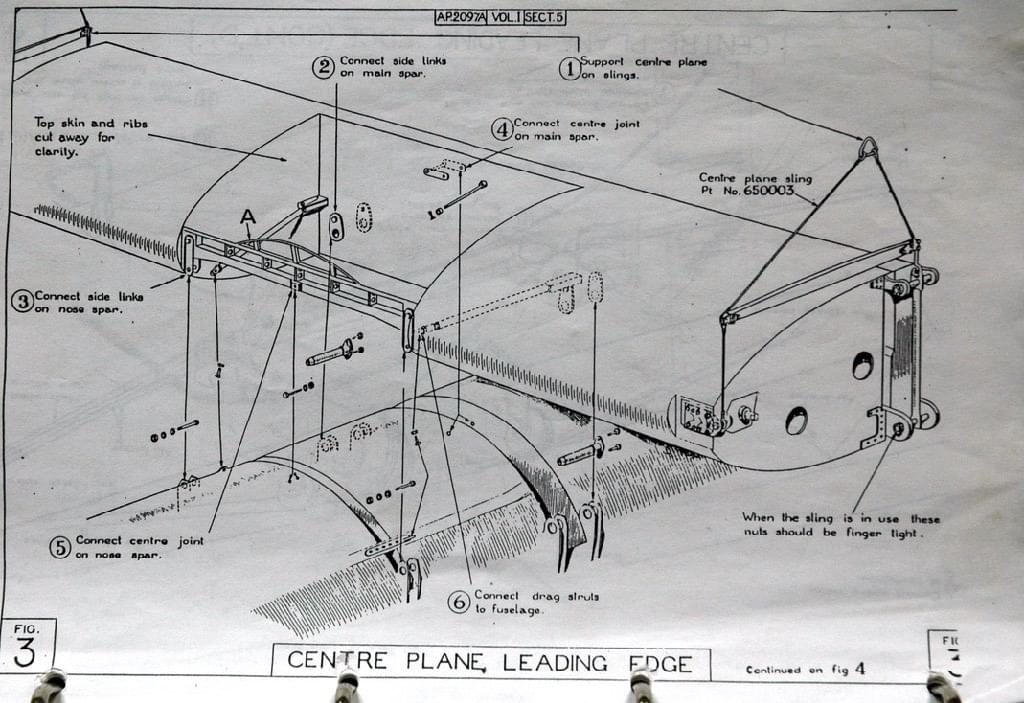

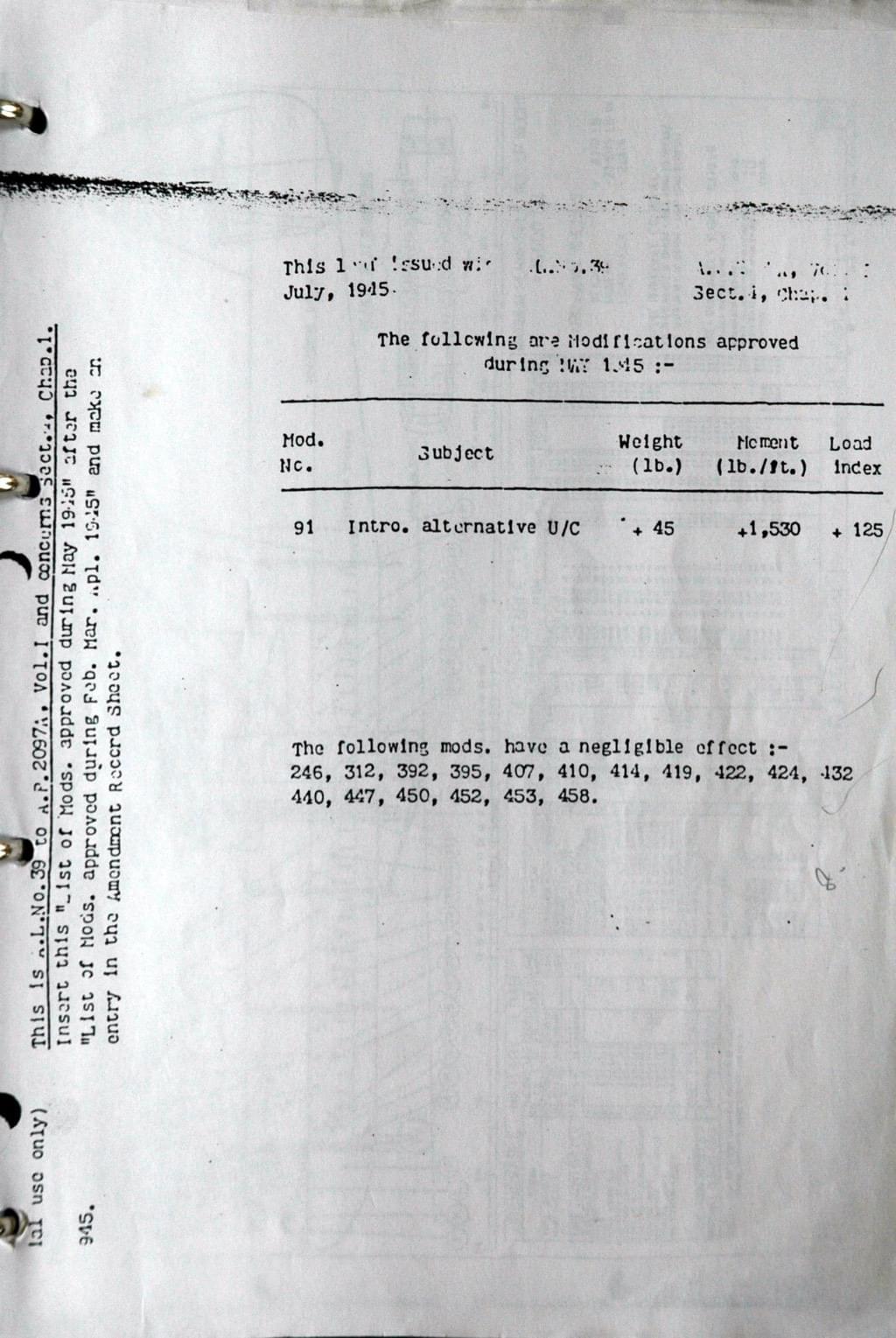

  • Horsa_Plans 69

    My Album Horsa_Plans 69

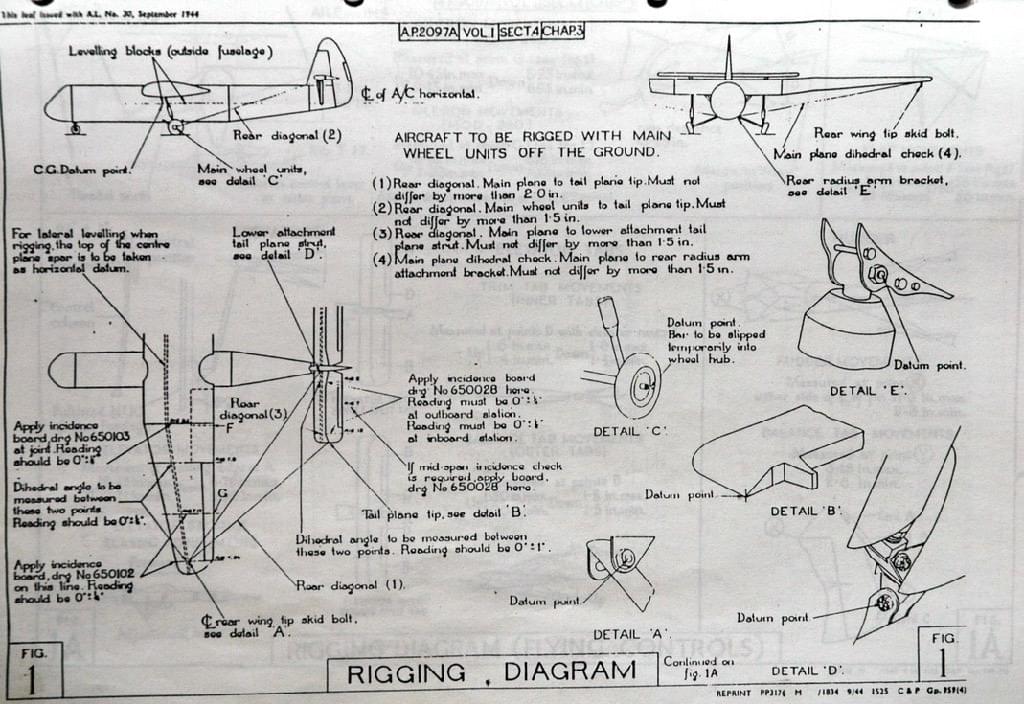

  • Horsa_Plans 78

    My Album Horsa_Plans 78

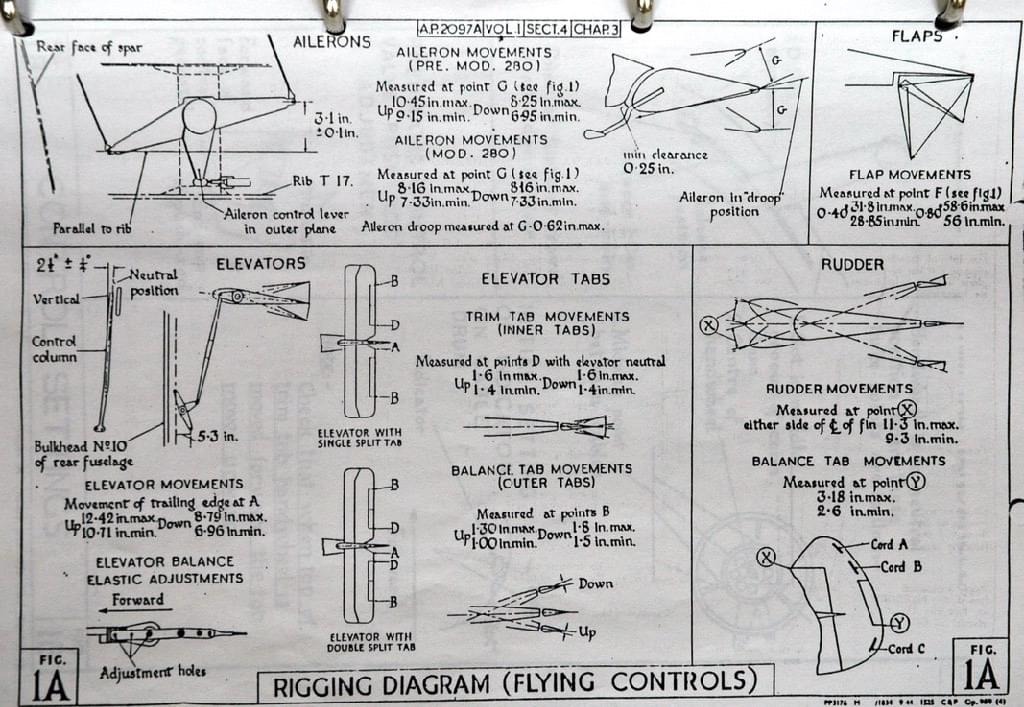

  • Horsa_Plans 79

    My Album Horsa_Plans 79

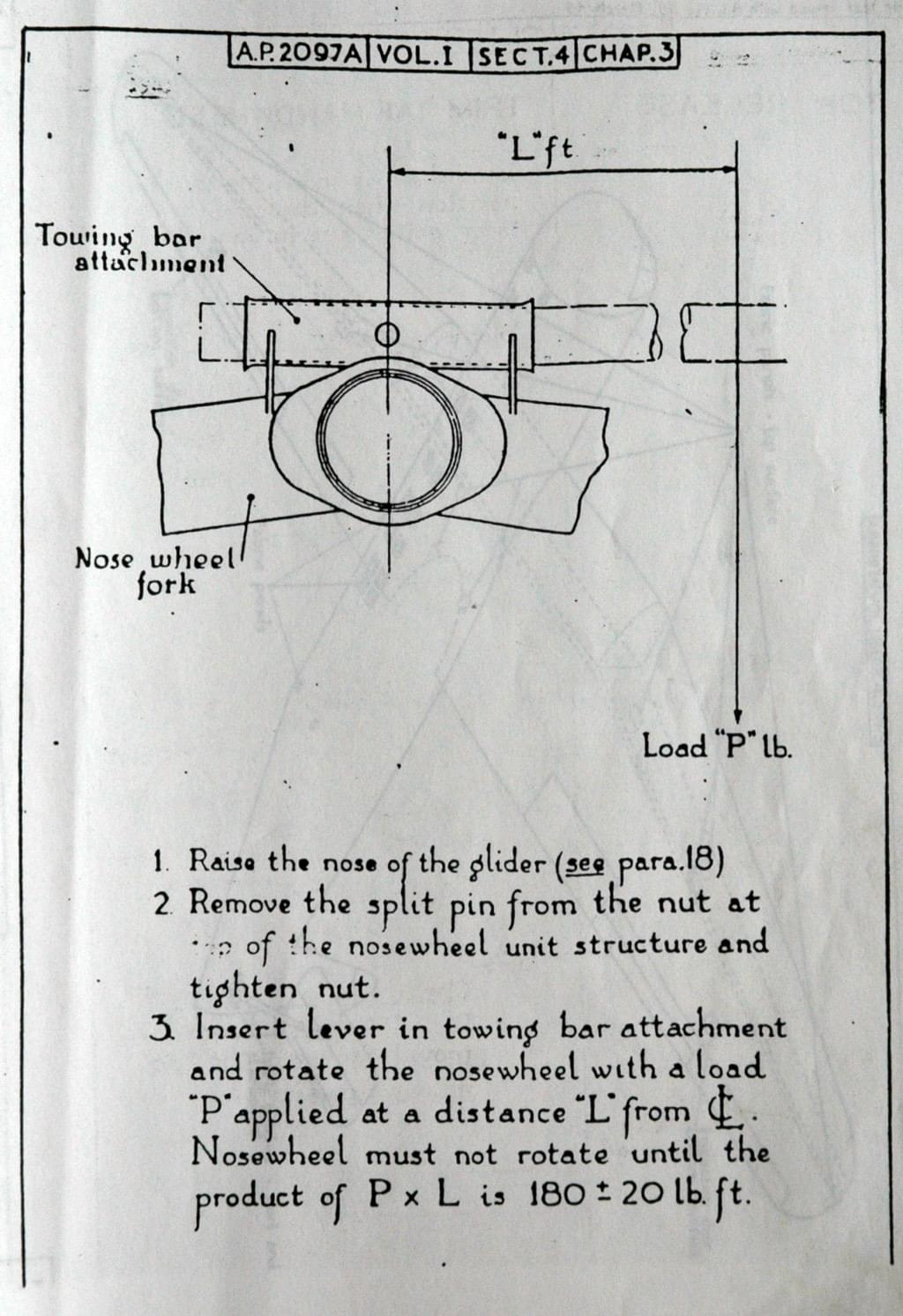

  • Horsa_Plans 81

    My Album Horsa_Plans 81

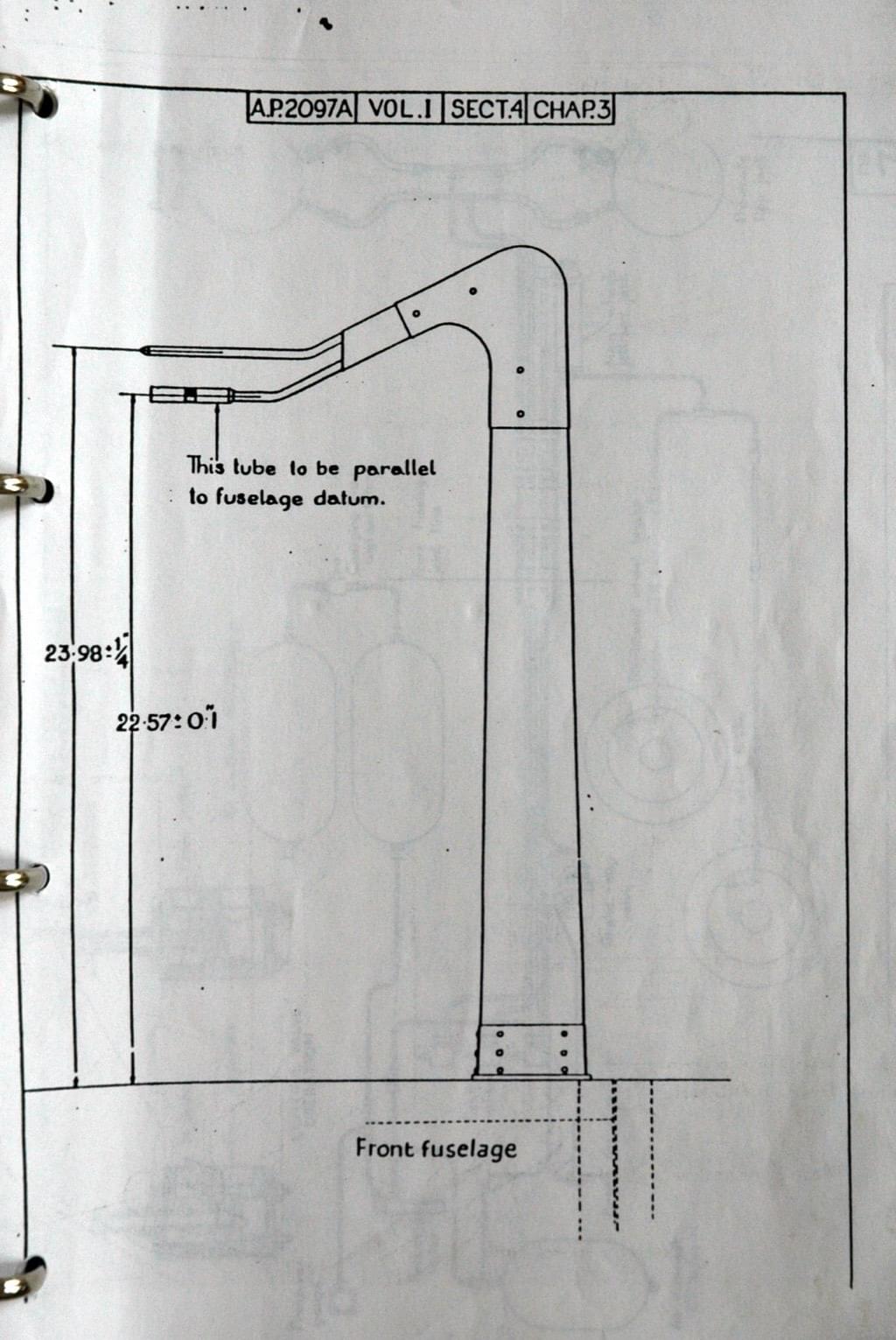

  • Horsa_Plans 82

    My Album Horsa_Plans 82

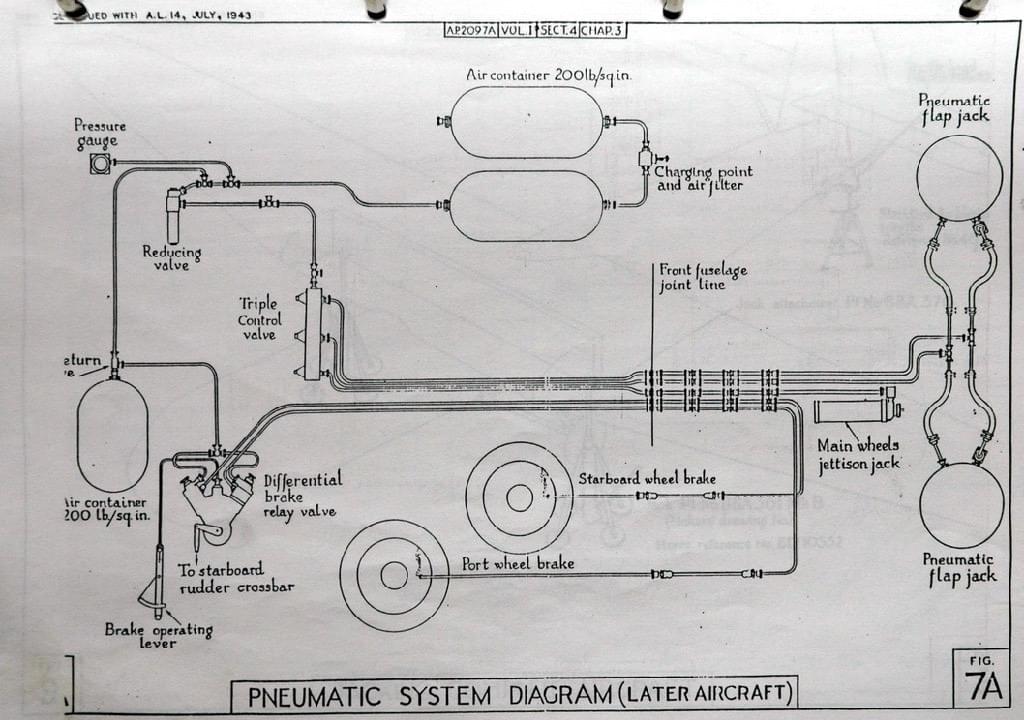

  • Horsa_Plans 83

    My Album Horsa_Plans 83

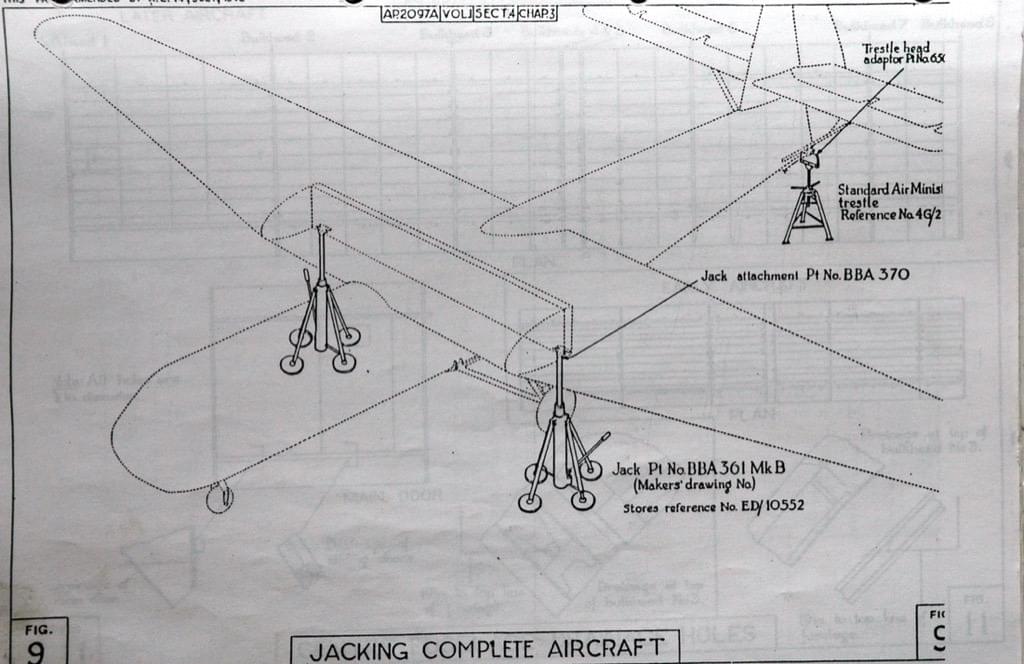

  • Horsa_Plans 84

    My Album Horsa_Plans 84

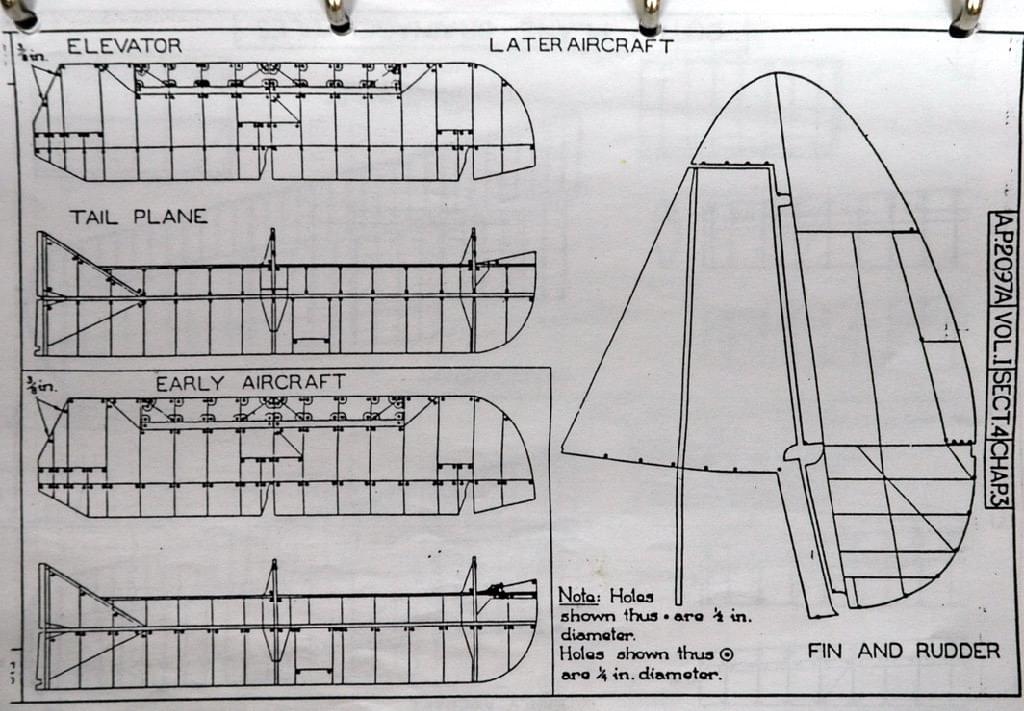

  • Horsa_Plans 85

    My Album Horsa_Plans 85

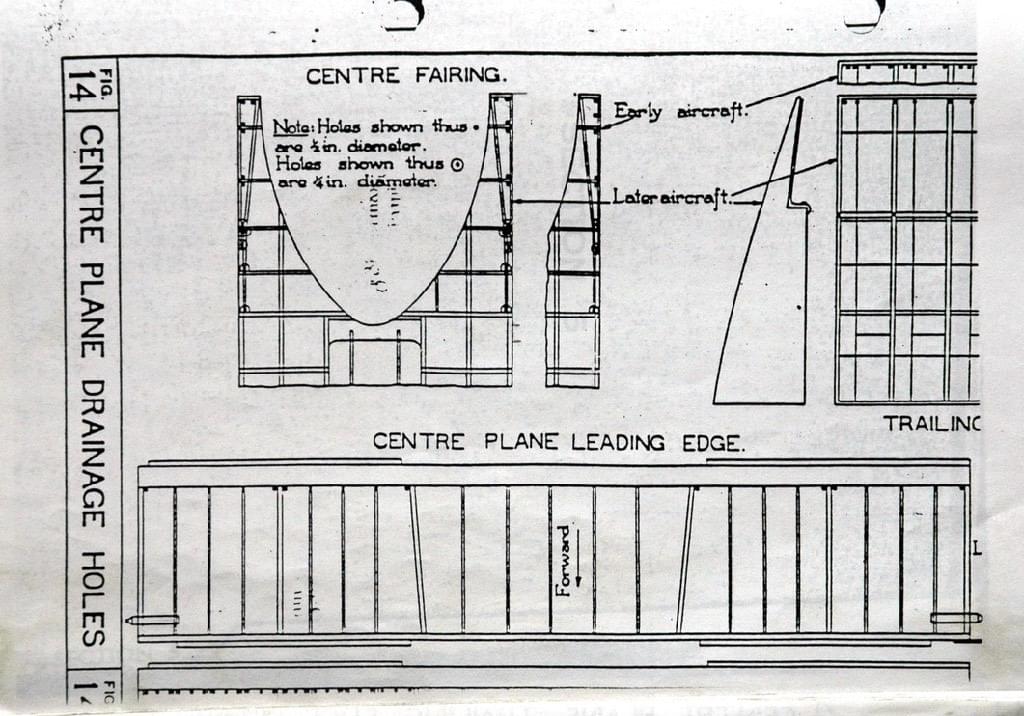

  • Horsa_Plans 86

    My Album Horsa_Plans 86

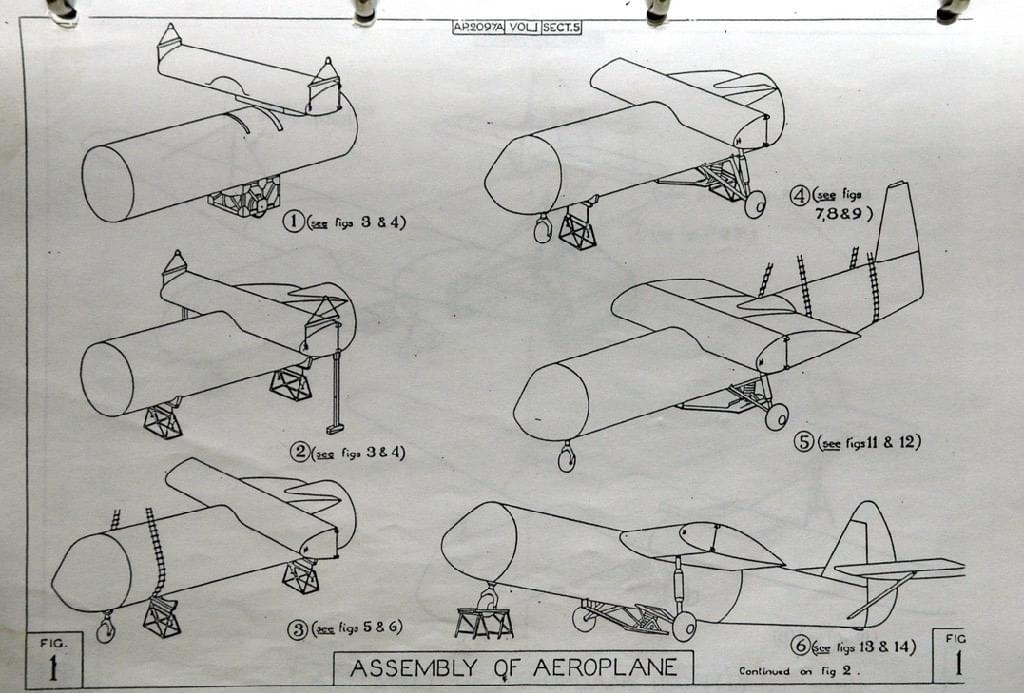

  • Horsa_Plans 87

    My Album Horsa_Plans 87

  • Horsa_Plans 88

    My Album Horsa_Plans 88

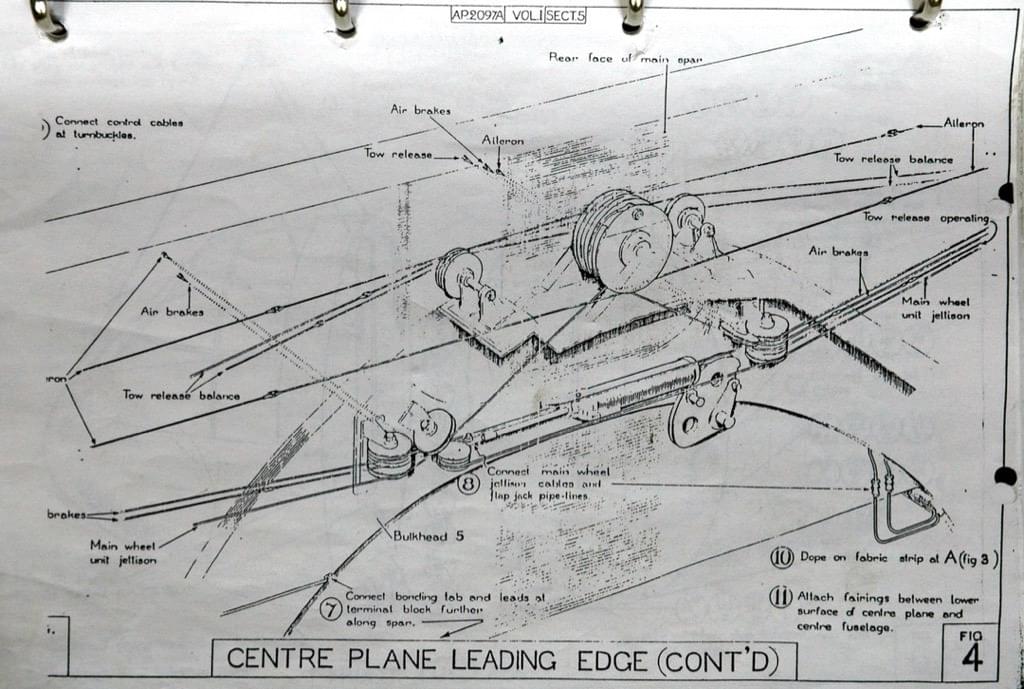

  • Horsa_Plans 89

    My Album Horsa_Plans 89

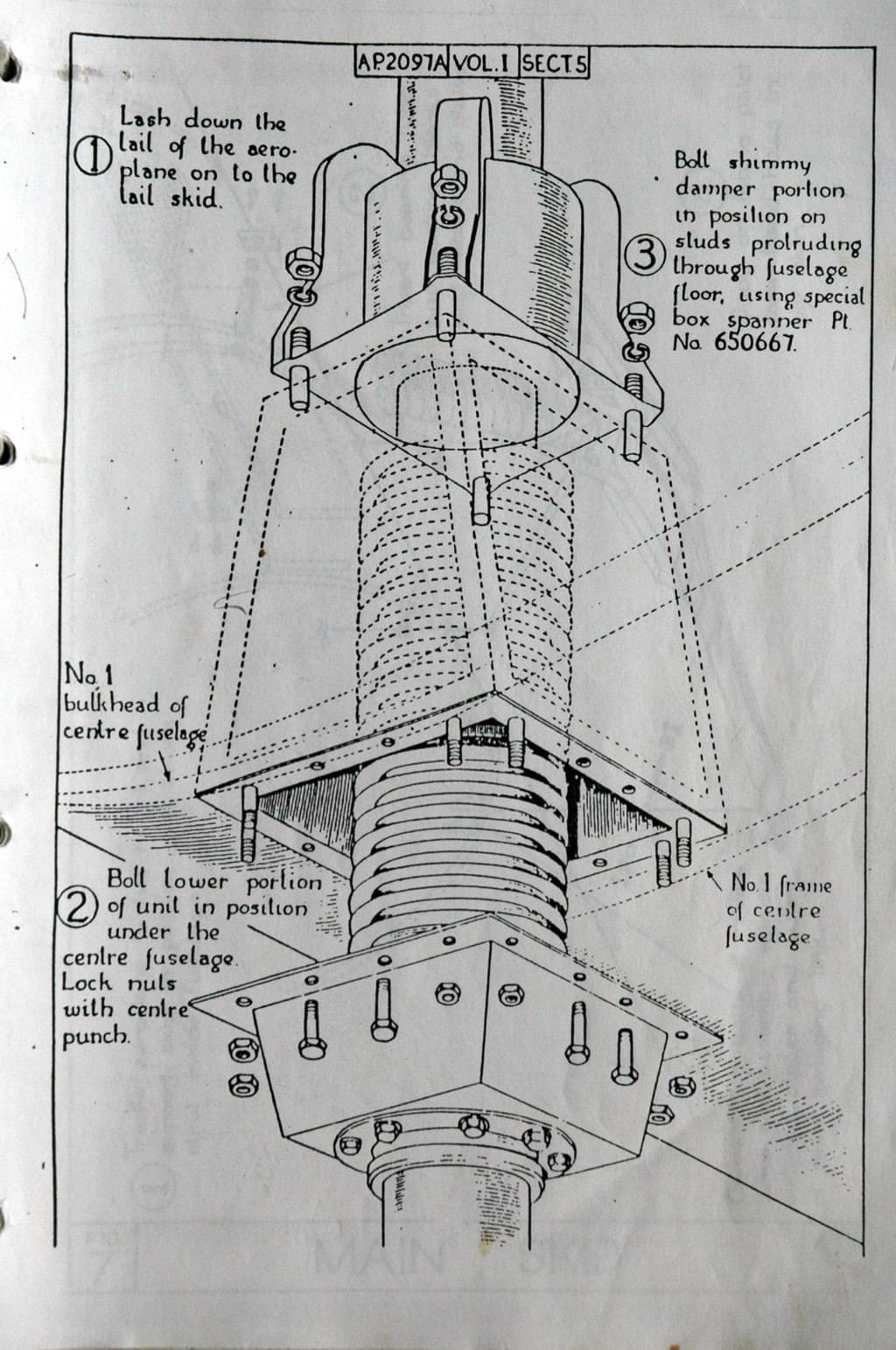

  • Horsa_Plans 90

    My Album Horsa_Plans 90

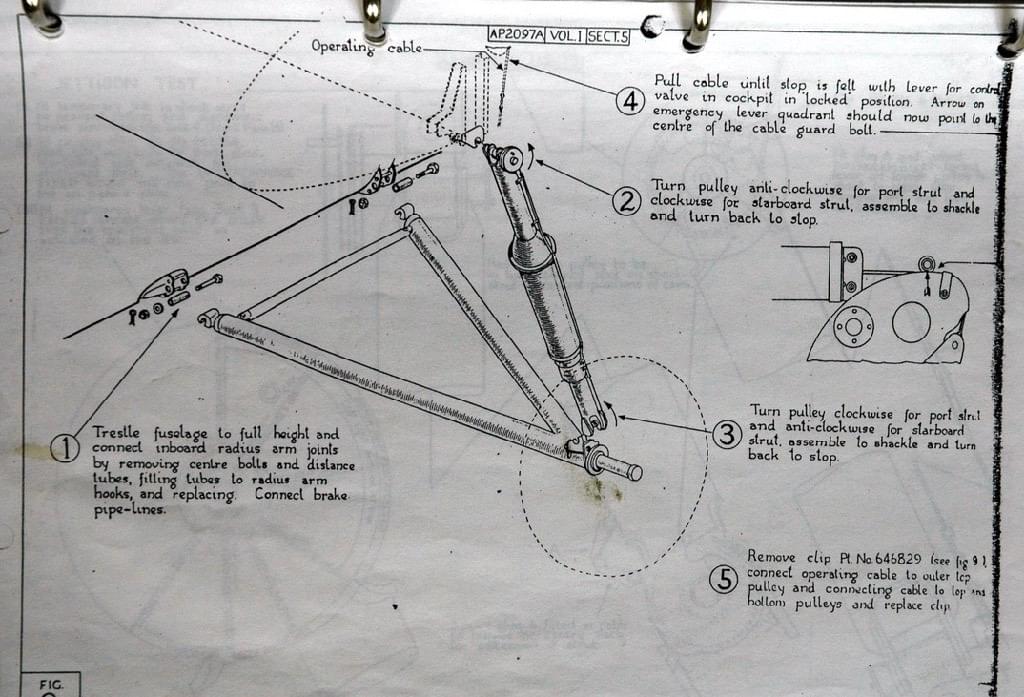

  • Horsa_Plans 91

    My Album Horsa_Plans 91

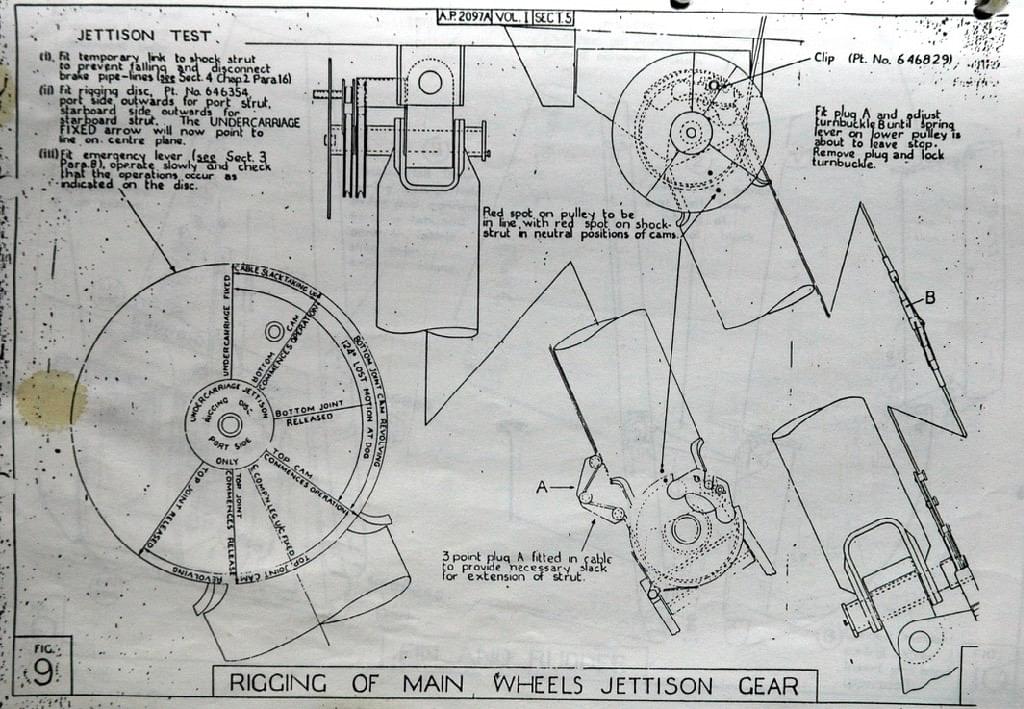

  • Horsa_Plans 92

    My Album Horsa_Plans 92

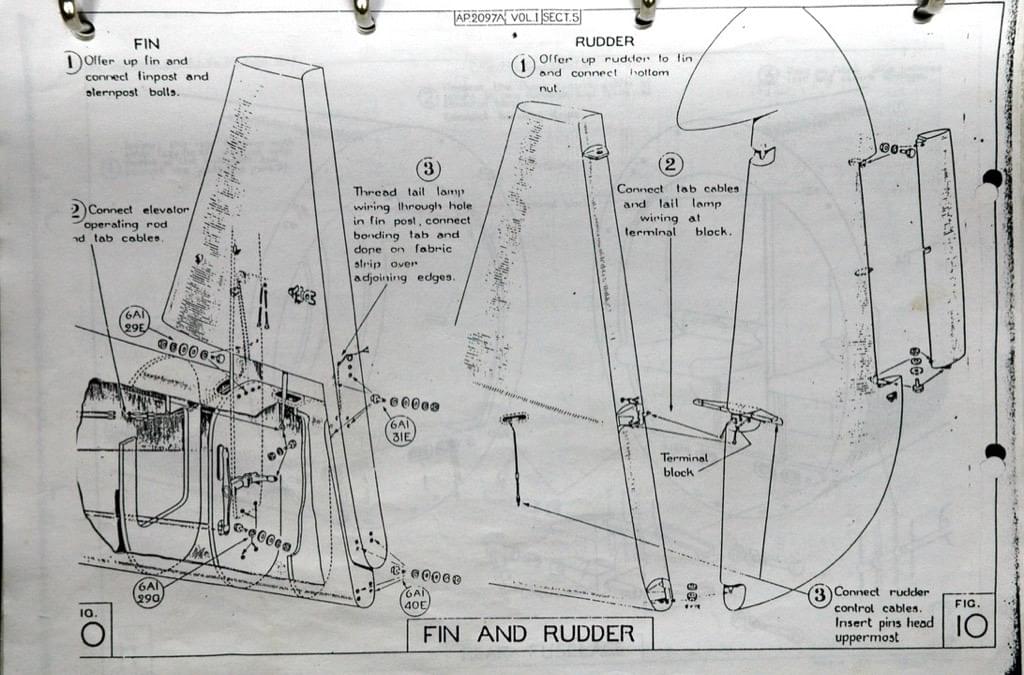

  • Horsa_Plans 93

    My Album Horsa_Plans 93

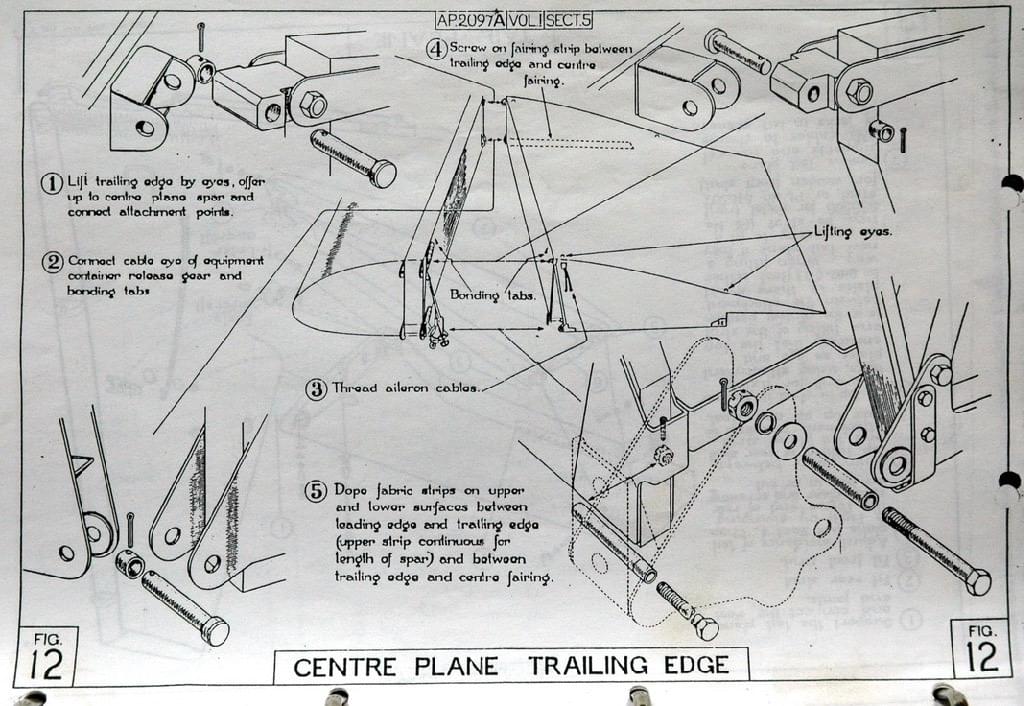

  • Horsa_Plans 94

    My Album Horsa_Plans 94

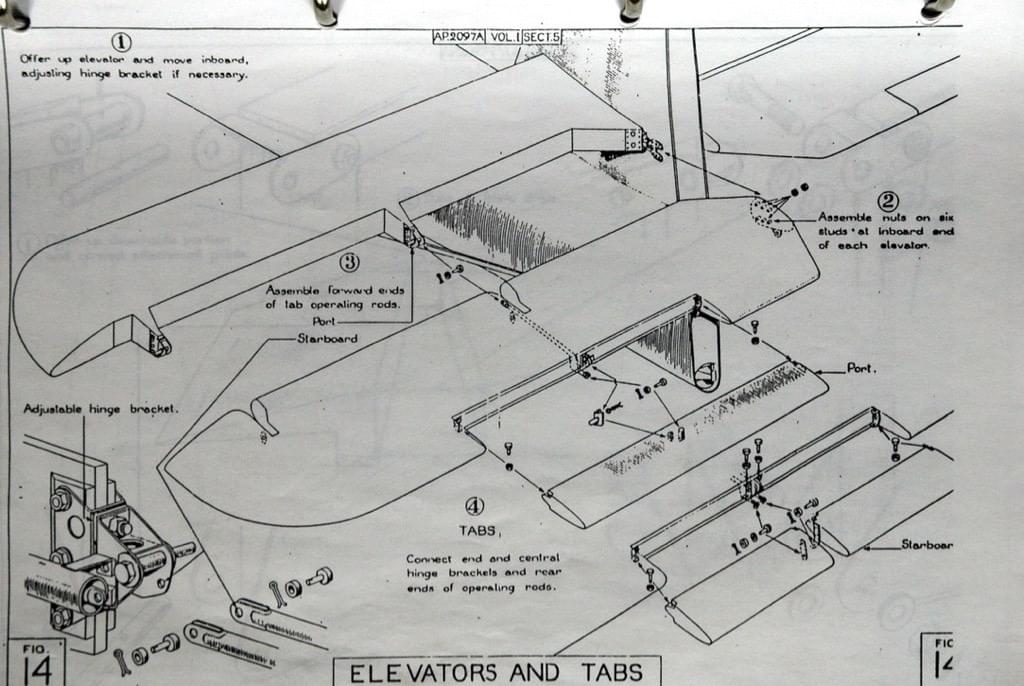

  • Horsa_Plans 95

    My Album Horsa_Plans 95

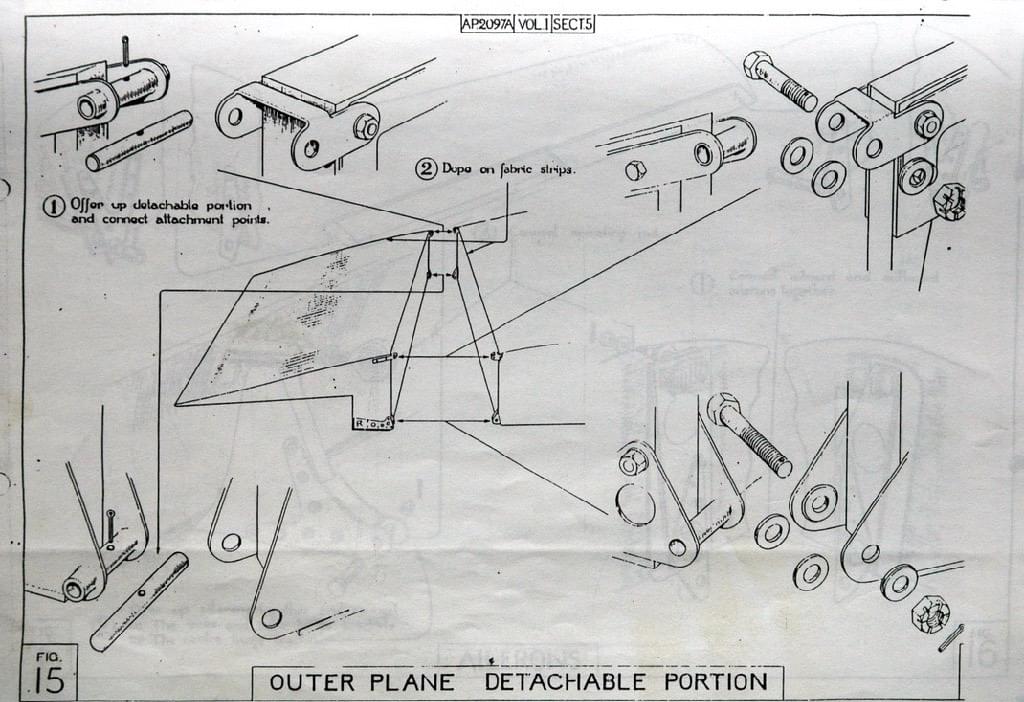

  • Horsa_Plans 96

    My Album Horsa_Plans 96

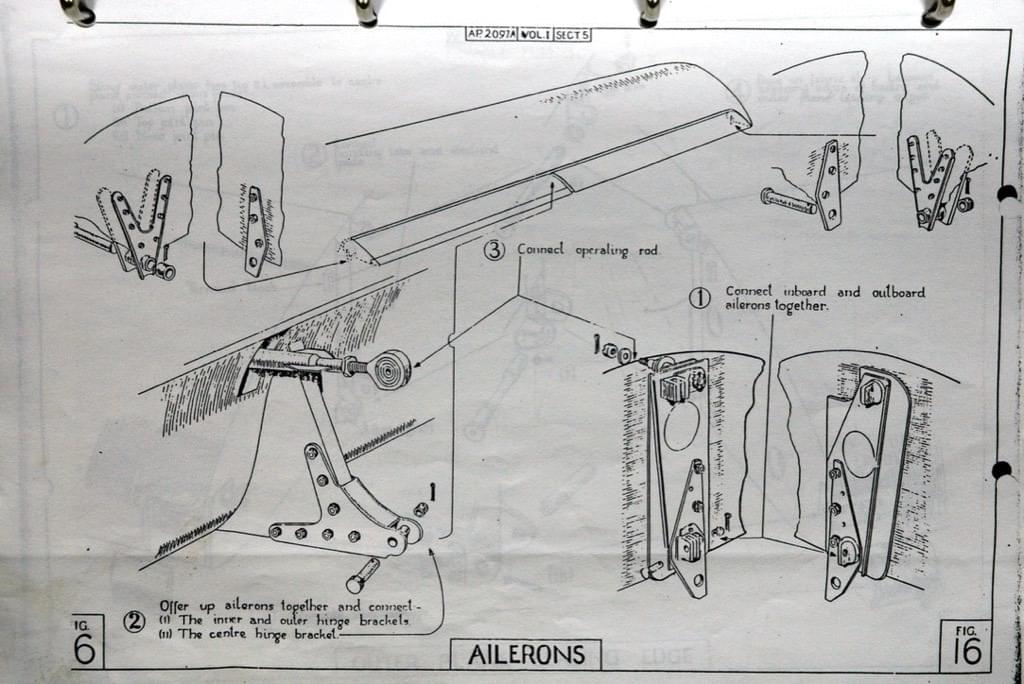

  • Horsa_Plans 97

    My Album Horsa_Plans 97

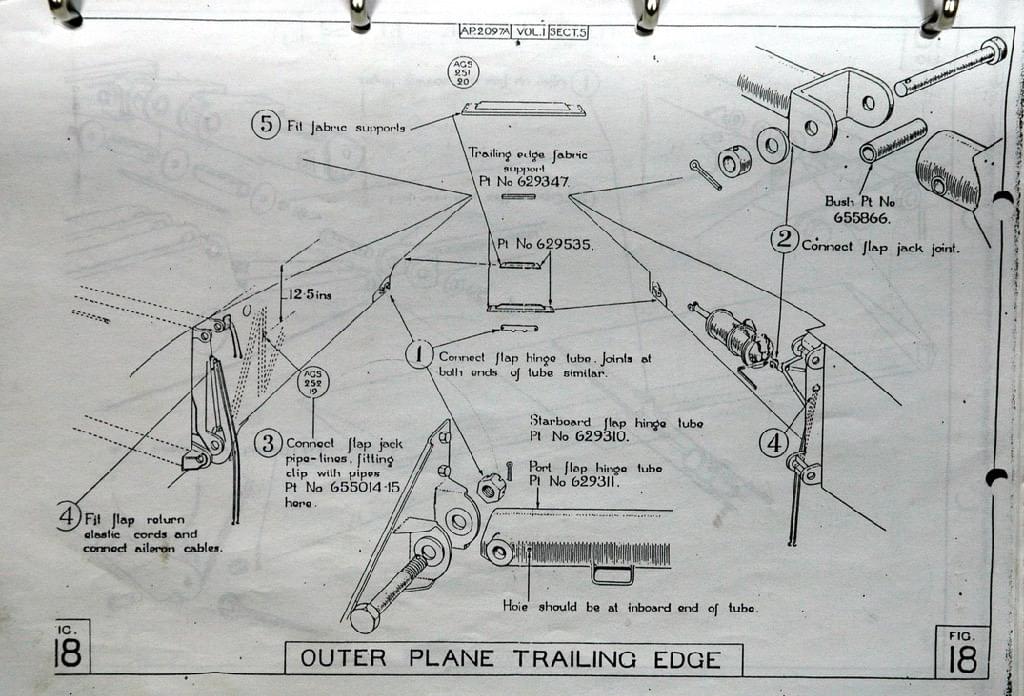

  • Horsa_Plans 99

    My Album Horsa_Plans 99

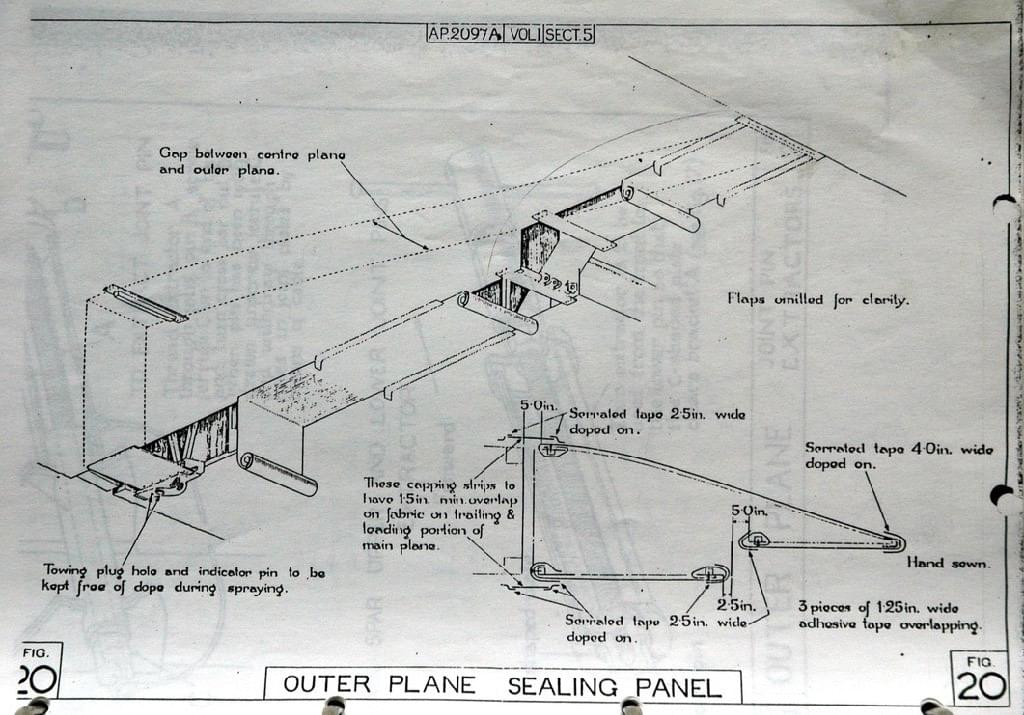

  • Horsa_Plans 101

    My Album Horsa_Plans 101

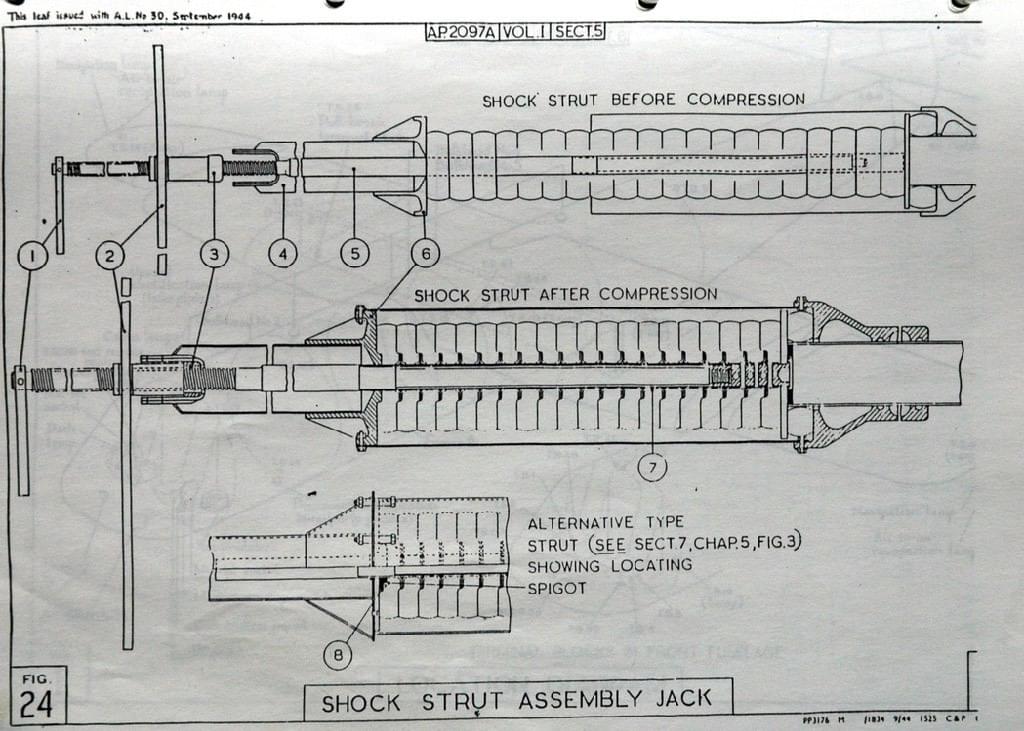

  • Horsa_Plans 102

    My Album Horsa_Plans 102

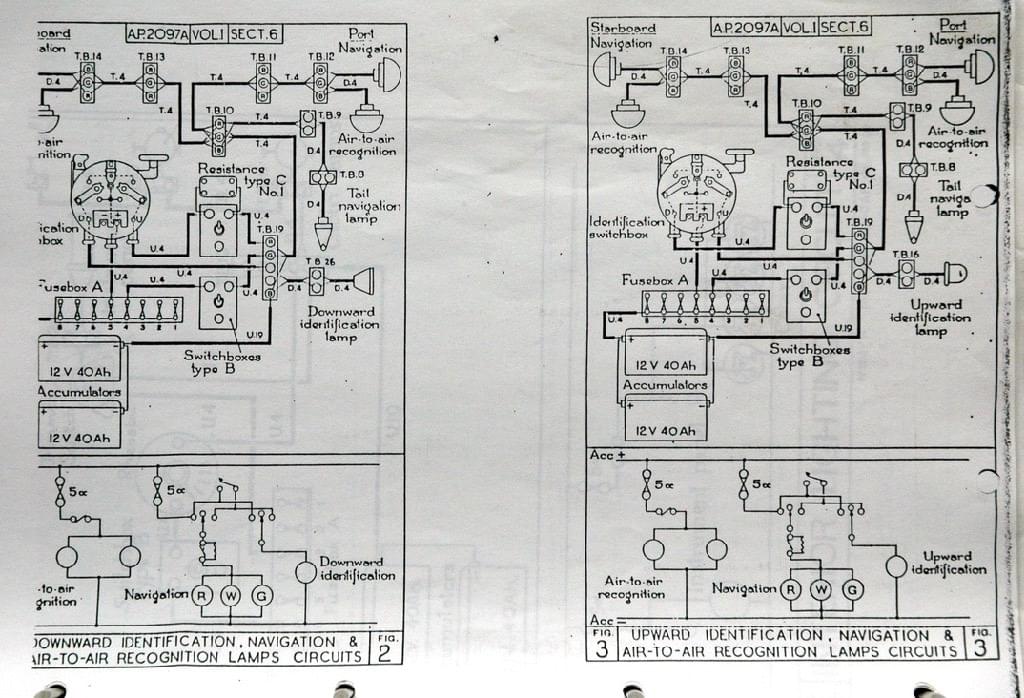

  • Horsa_Plans 103

    My Album Horsa_Plans 103

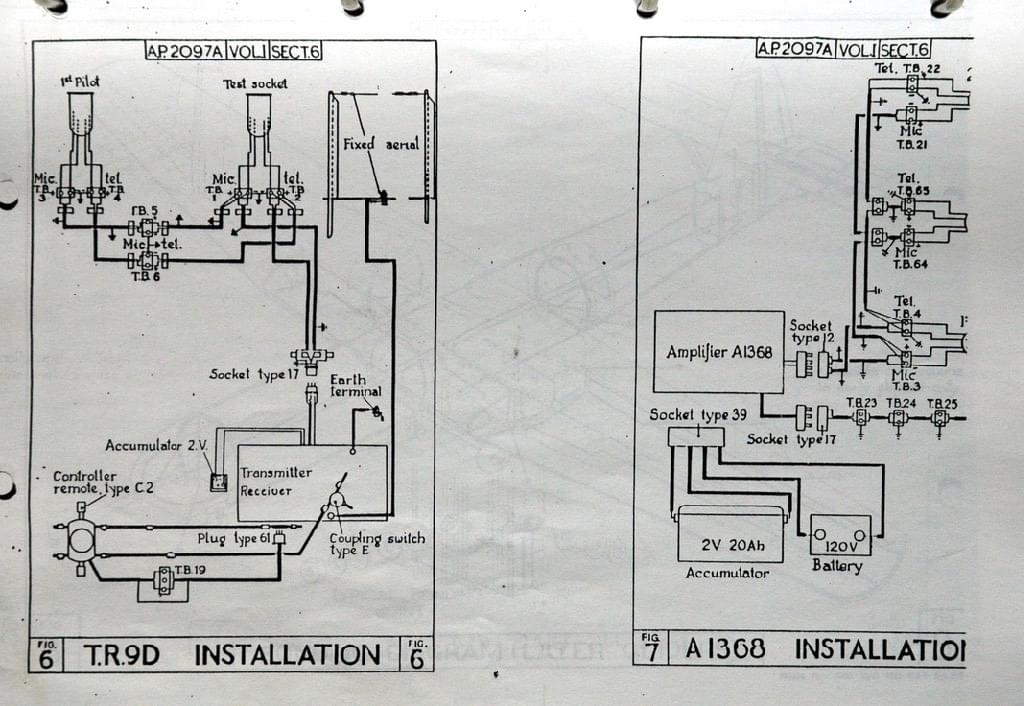

  • Horsa_Plans 104

    My Album Horsa_Plans 104

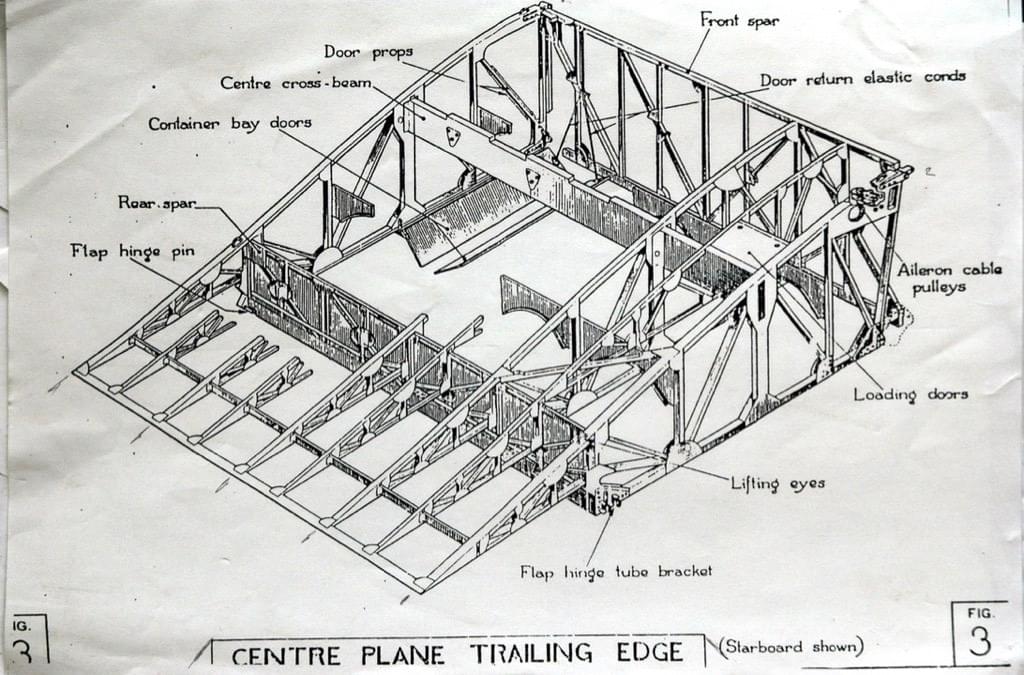

  • Horsa_Plans 105

    My Album Horsa_Plans 105

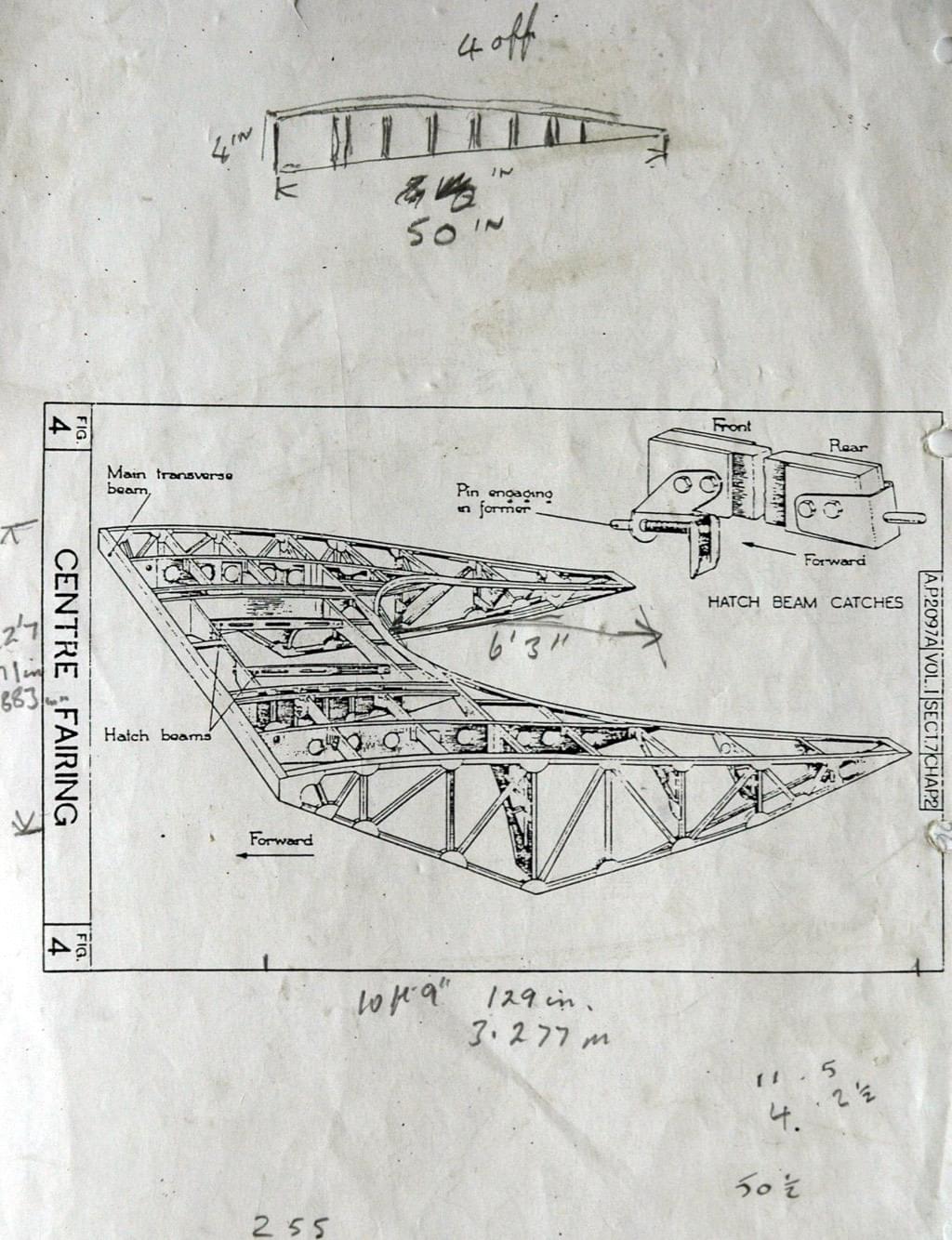

  • Horsa_Plans 106

    My Album Horsa_Plans 106

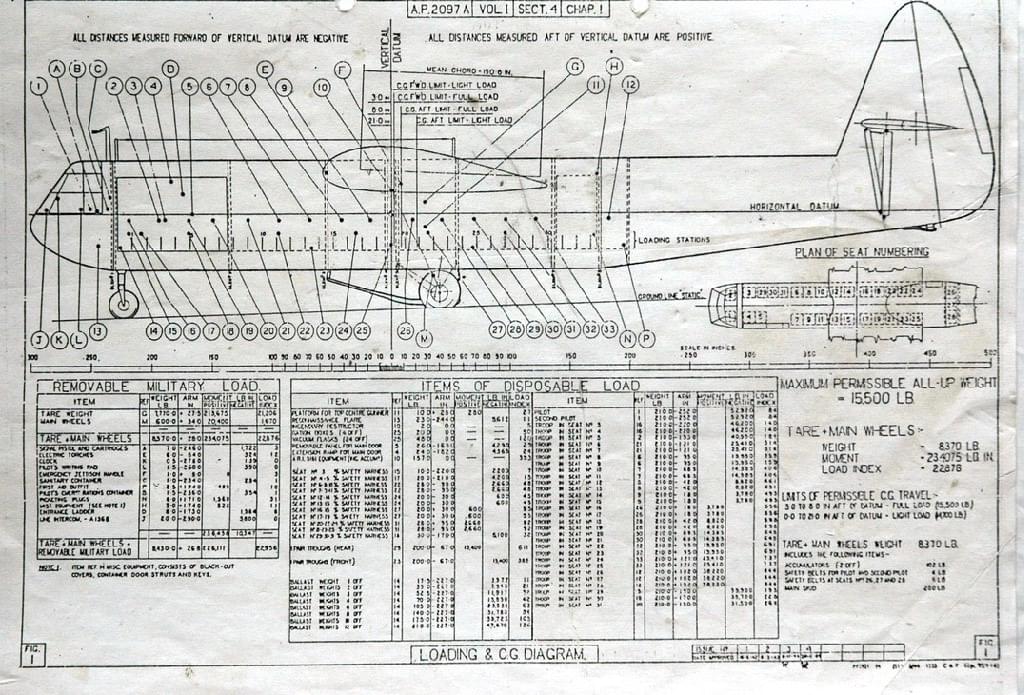

  • Horsa_Plans 107

    My Album Horsa_Plans 107

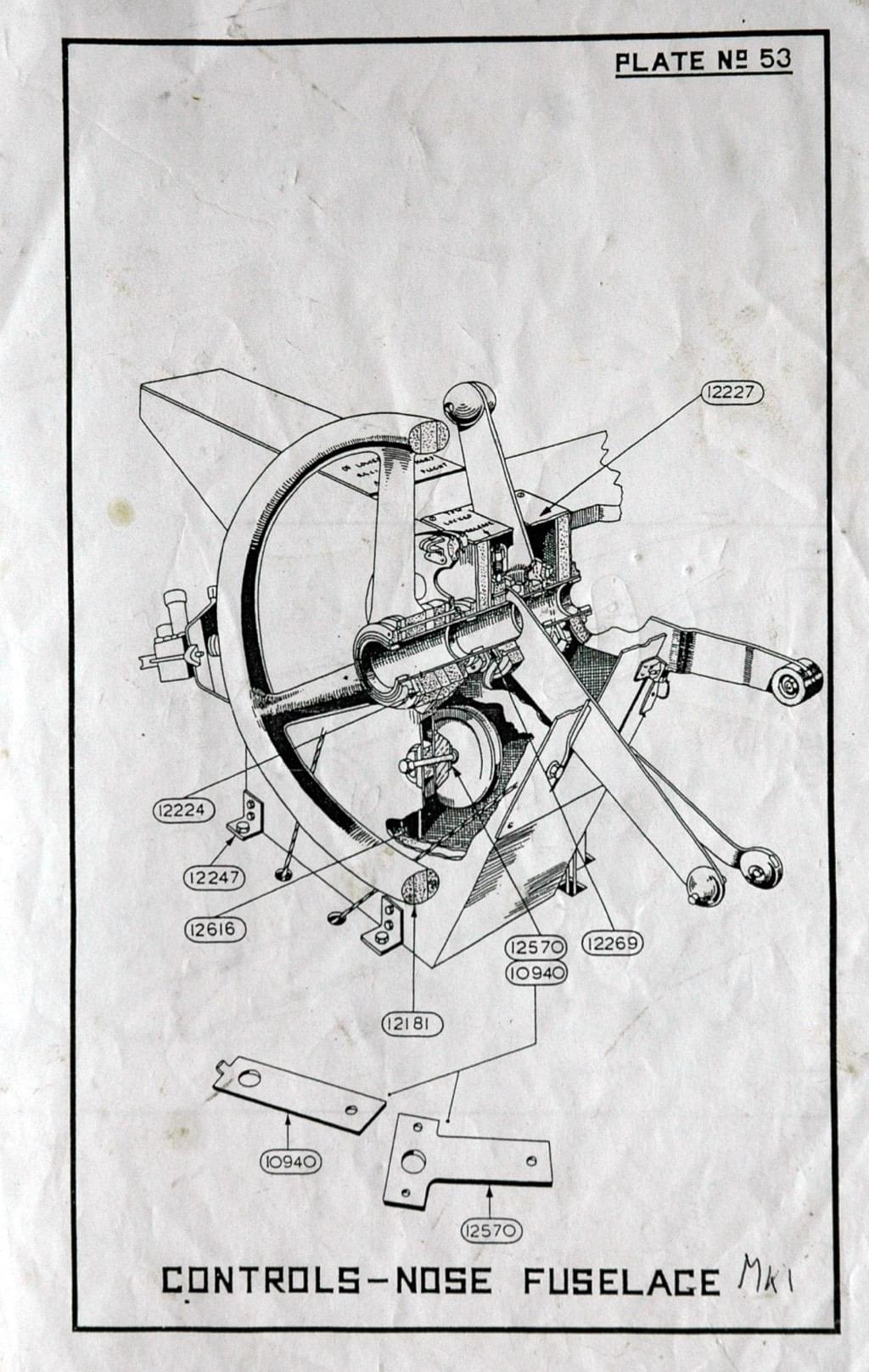

  • Horsa_Plans 108

    My Album Horsa_Plans 108

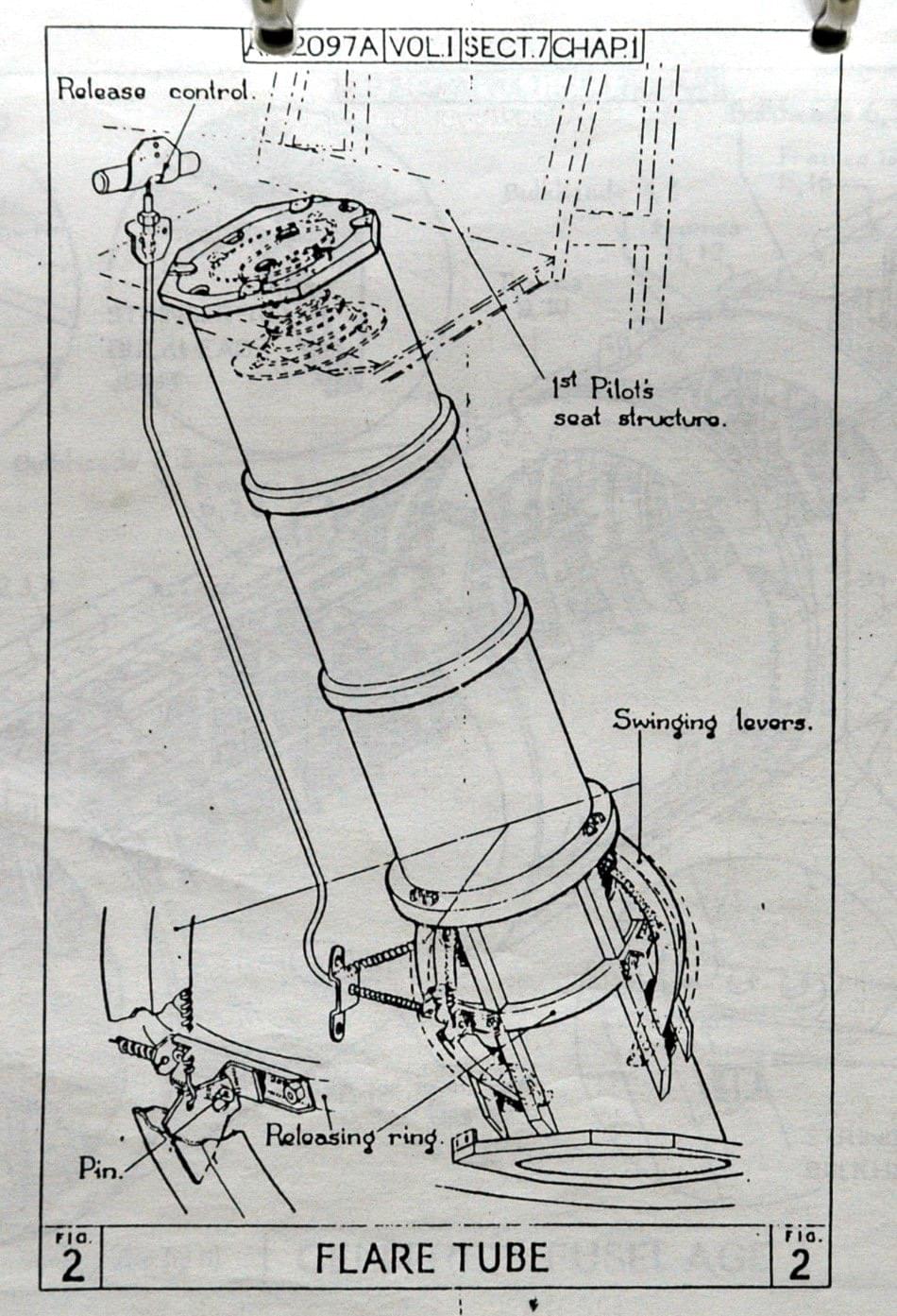

  • Horsa_Plans 109

    My Album Horsa_Plans 109

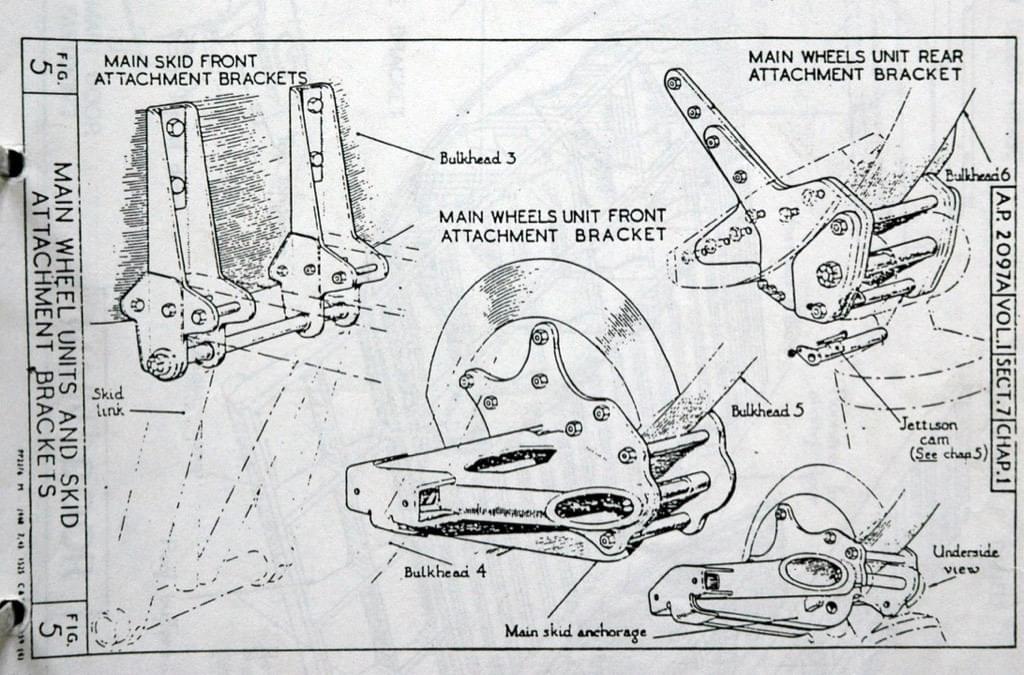

  • Horsa_Plans 110

    My Album Horsa_Plans 110

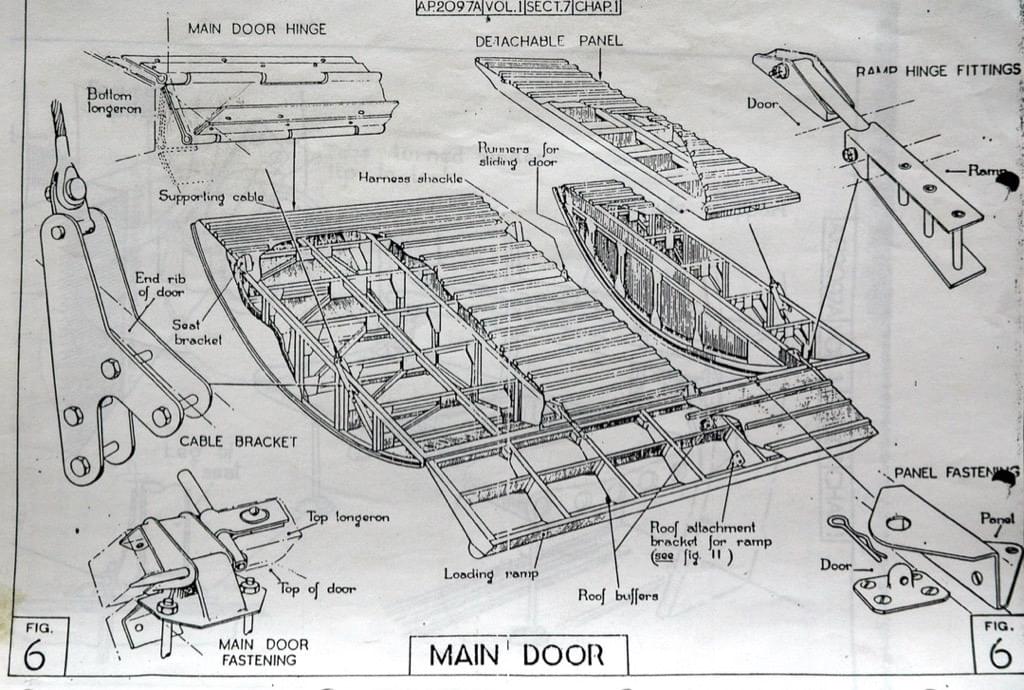

  • Horsa_Plans 111

    My Album Horsa_Plans 111

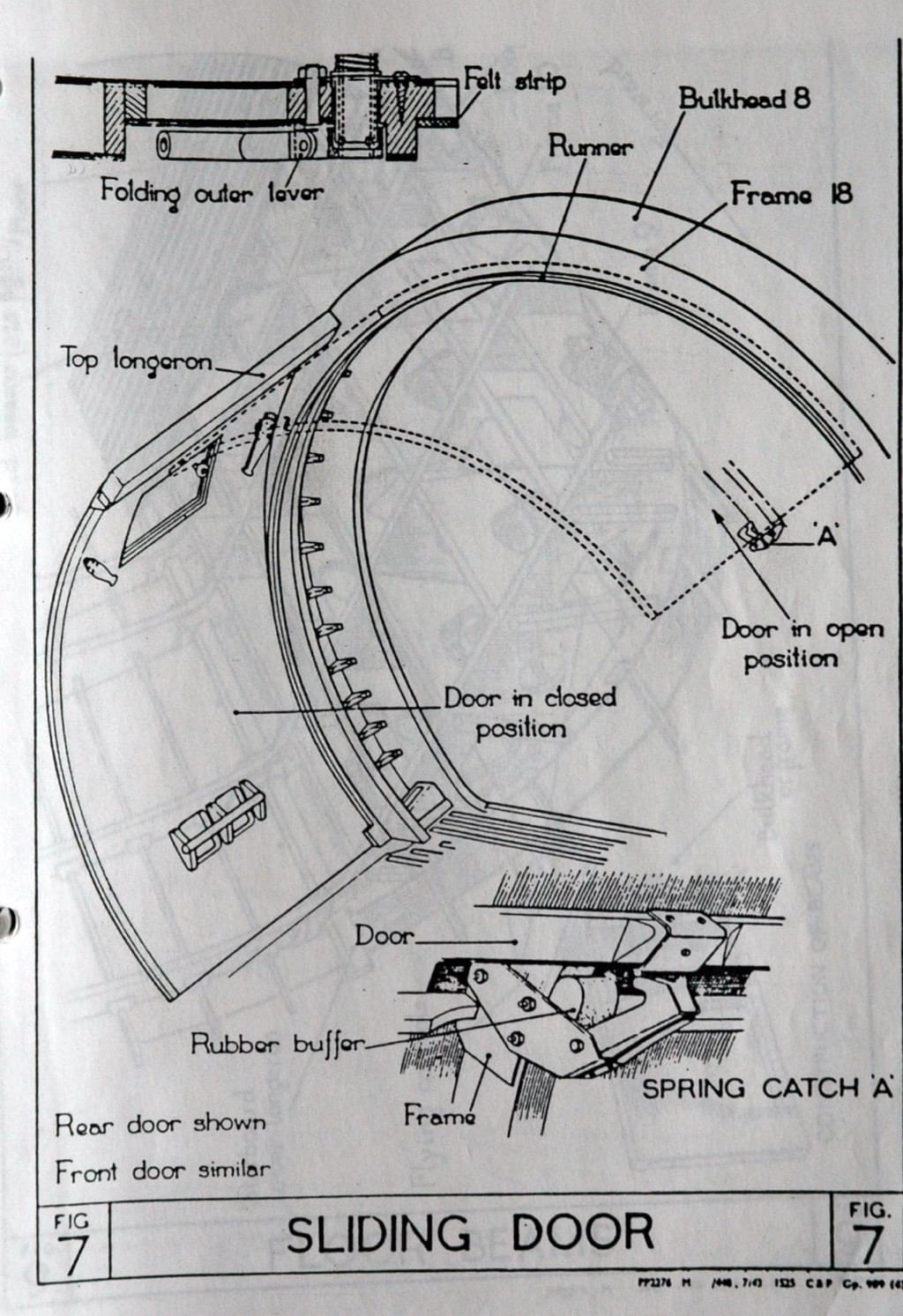

  • Horsa_Plans 112

    My Album Horsa_Plans 112

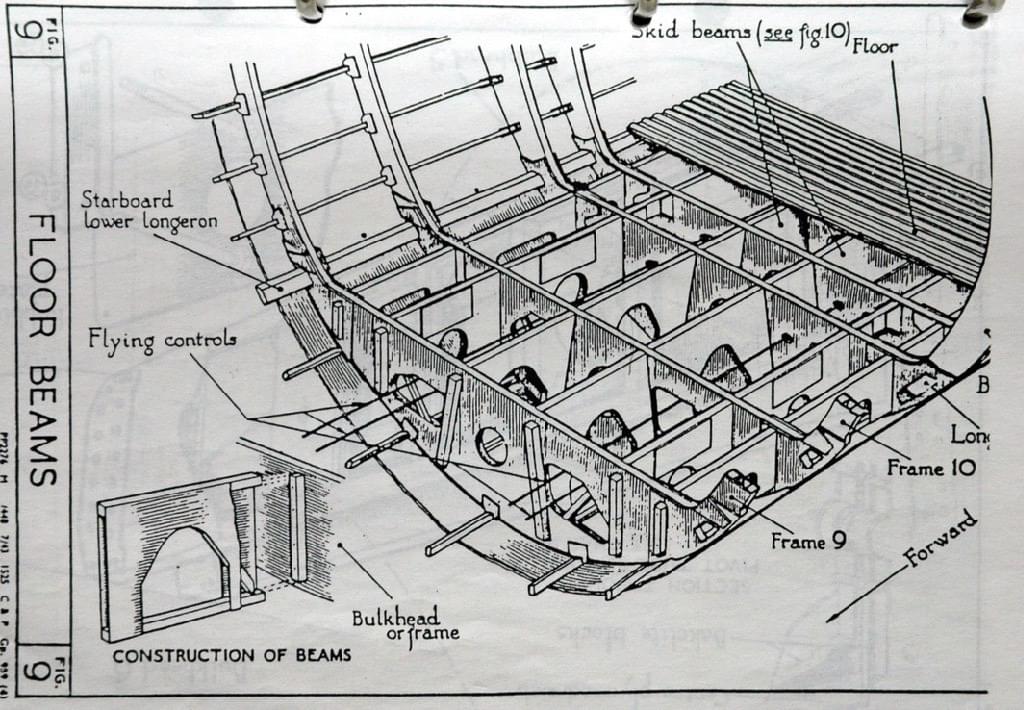

  • Horsa_Plans 113

    My Album Horsa_Plans 113

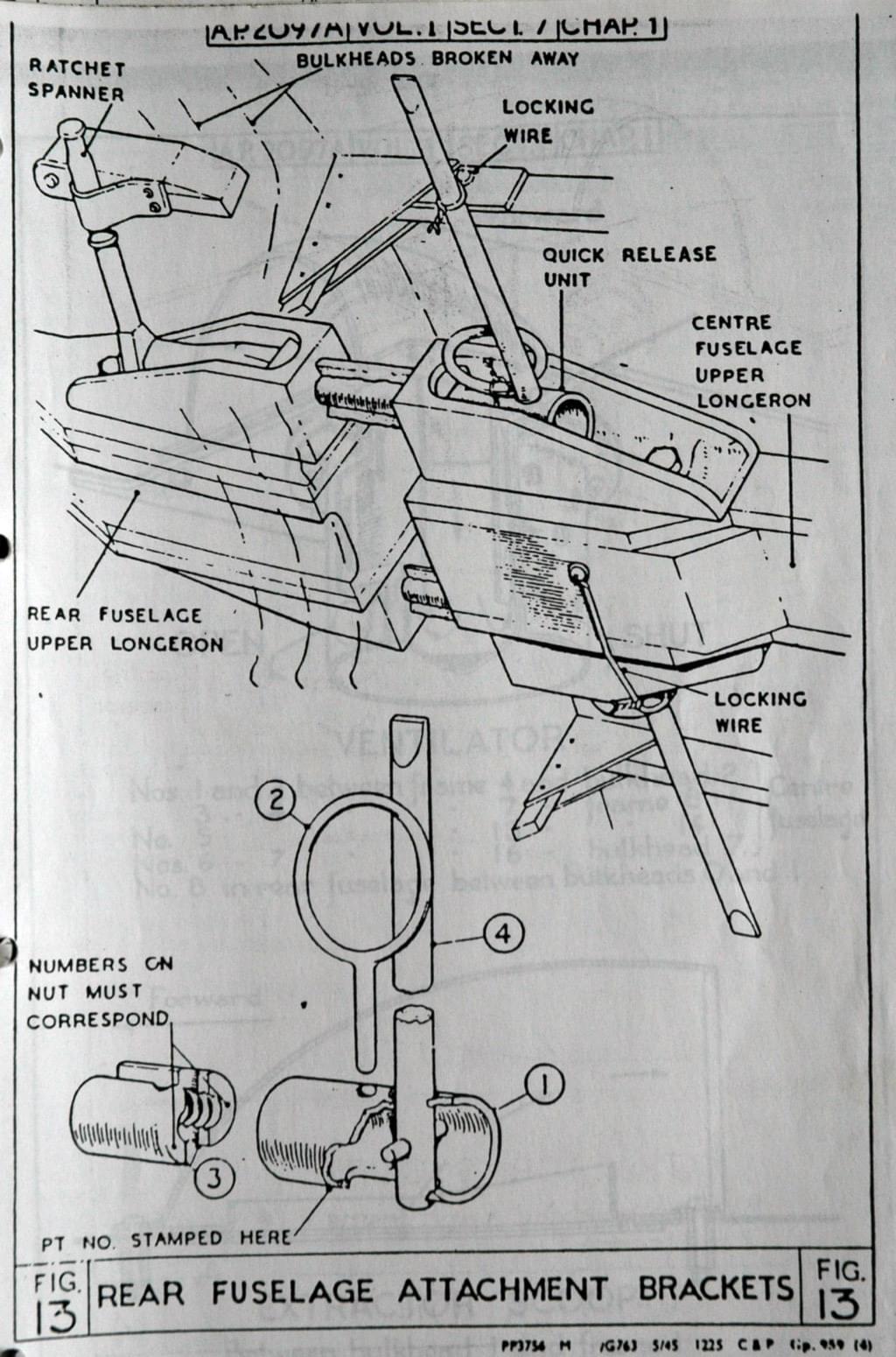

  • Horsa_Plans 114

    My Album Horsa_Plans 114

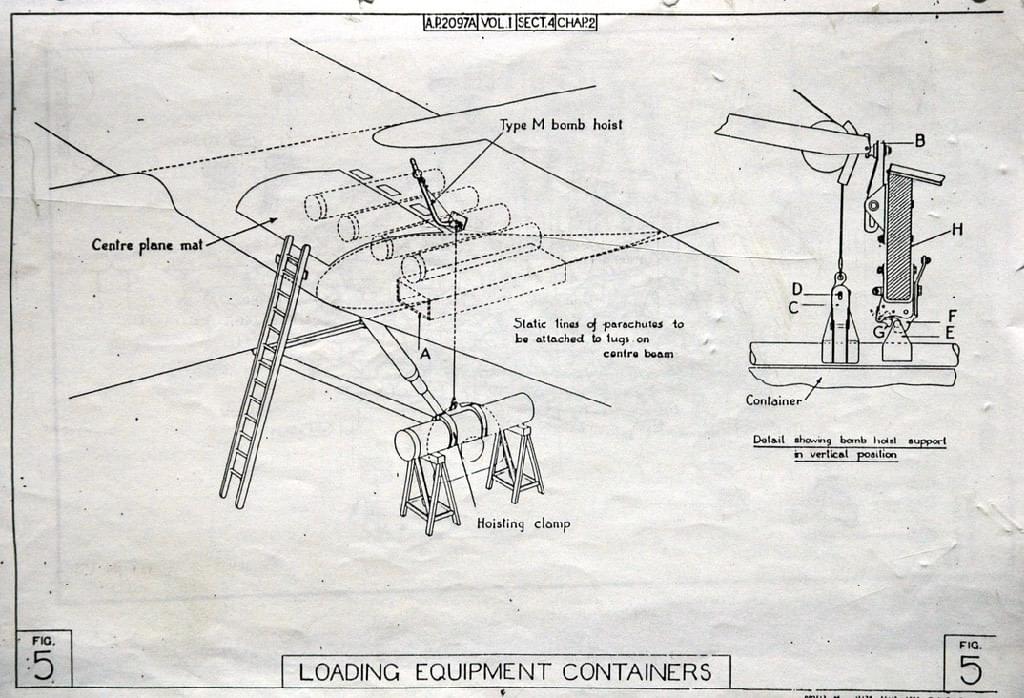

  • Horsa_Plans 115

    My Album Horsa_Plans 115

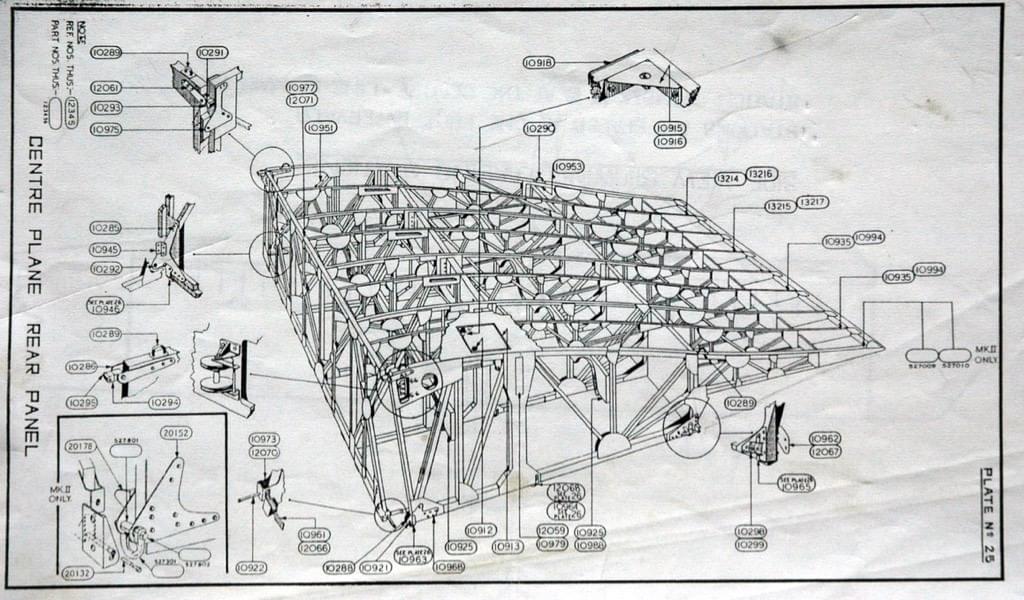

  • Horsa_Plans 116

    My Album Horsa_Plans 116

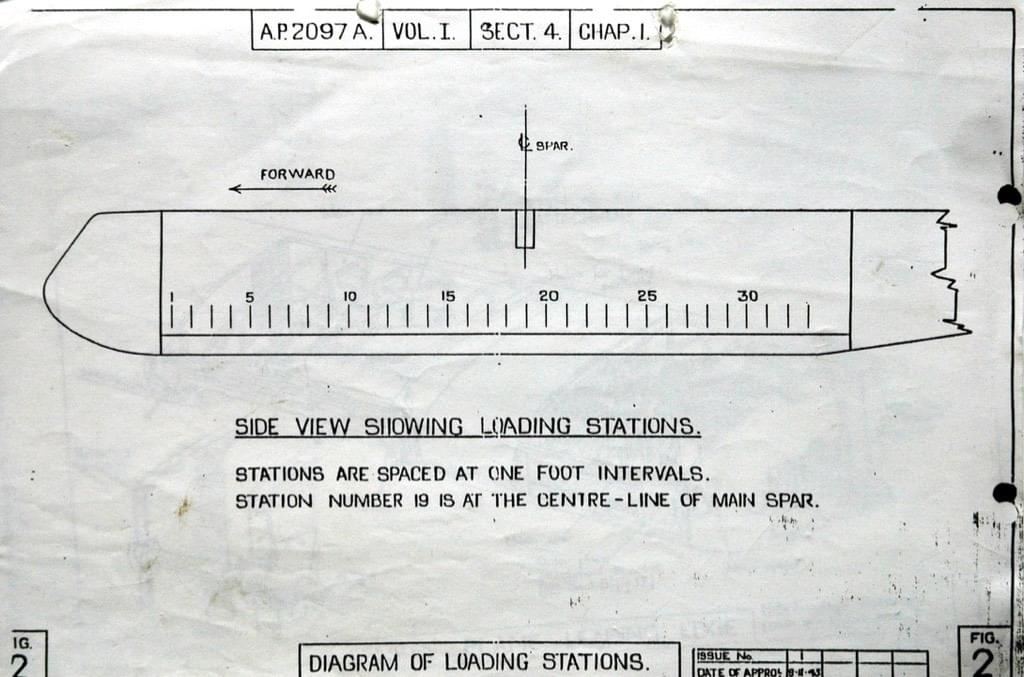

  • Horsa_Plans 117

    My Album Horsa_Plans 117

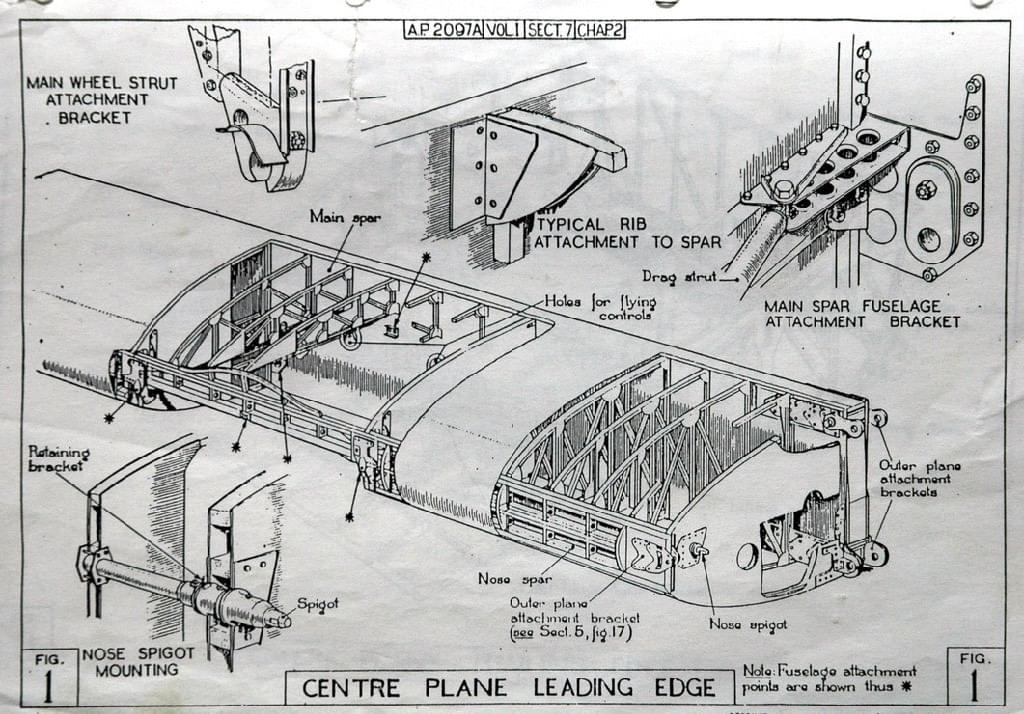

  • Horsa_Plans 118

    My Album Horsa_Plans 118

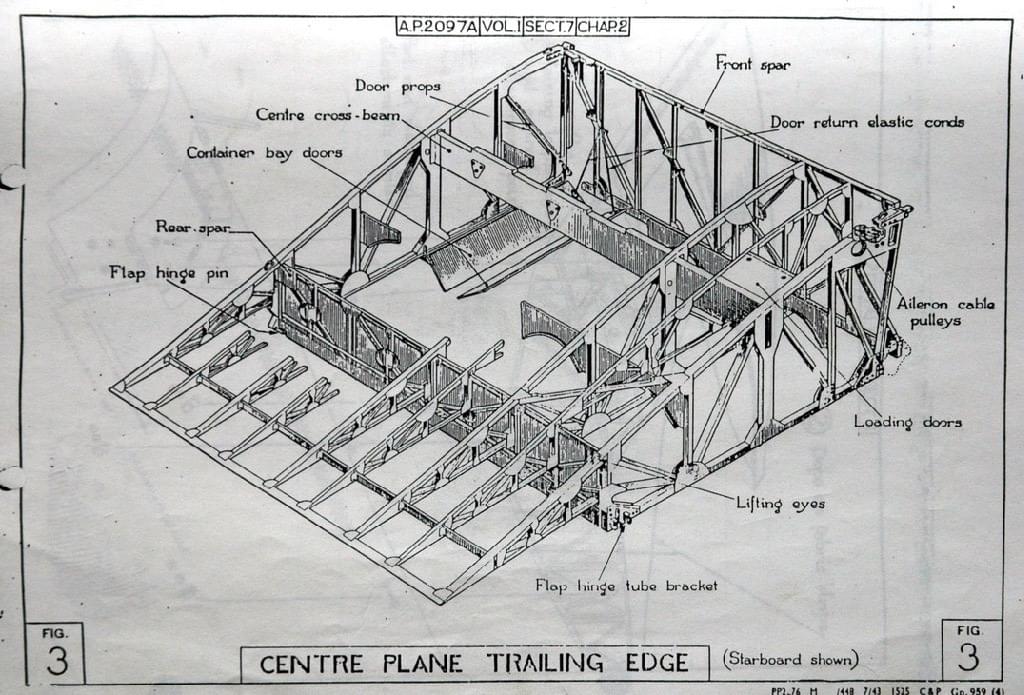

  • Horsa_Plans 119

    My Album Horsa_Plans 119

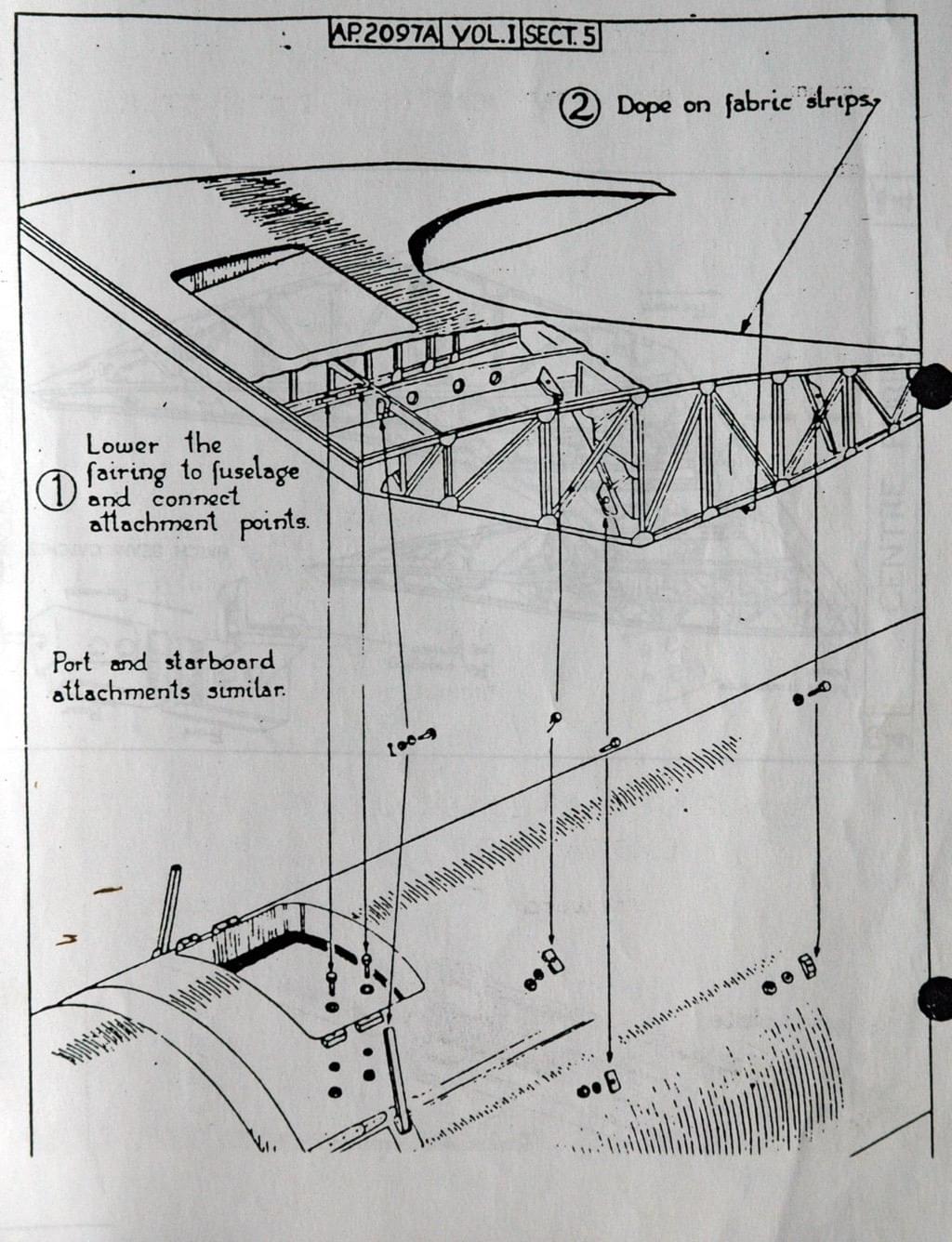

  • Horsa_Plans 120

    My Album Horsa_Plans 120

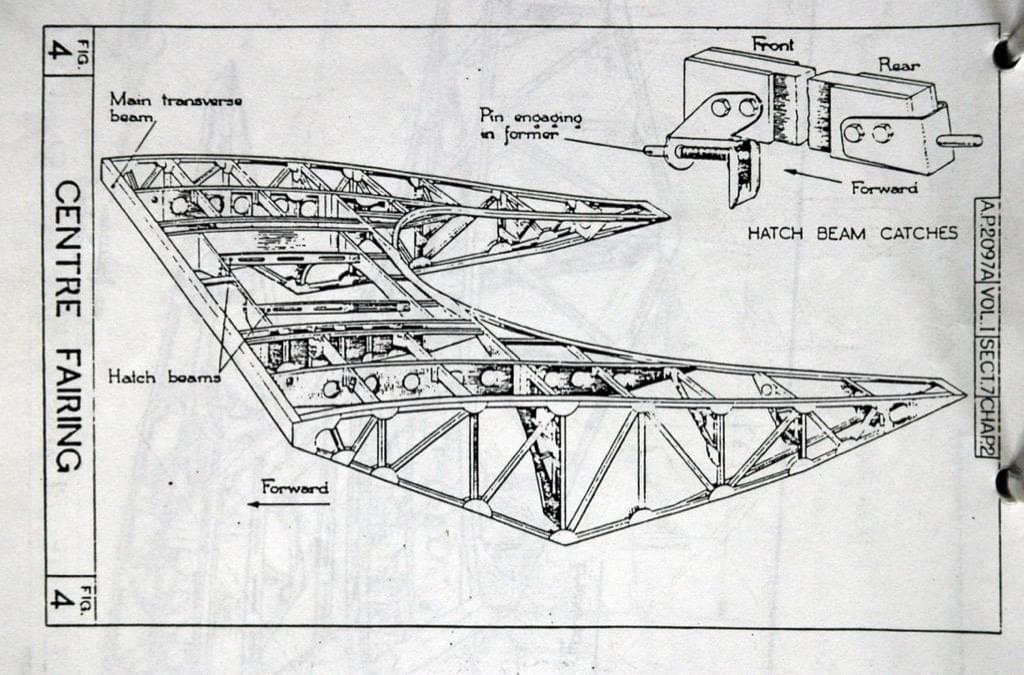

  • Horsa_Plans 121

    My Album Horsa_Plans 121

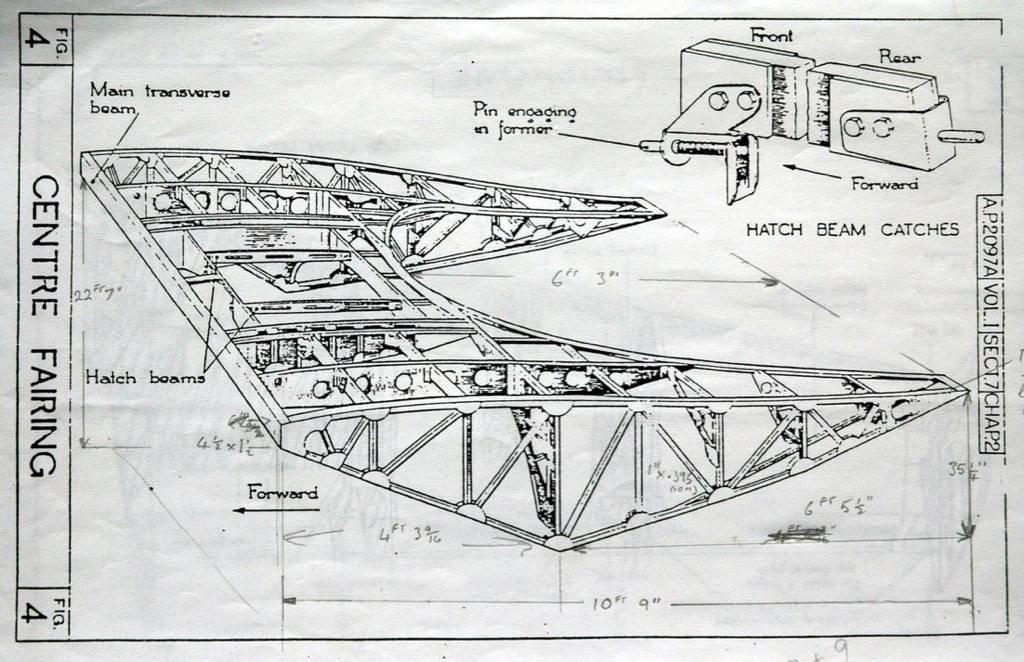

  • Horsa_Plans 122

    My Album Horsa_Plans 122

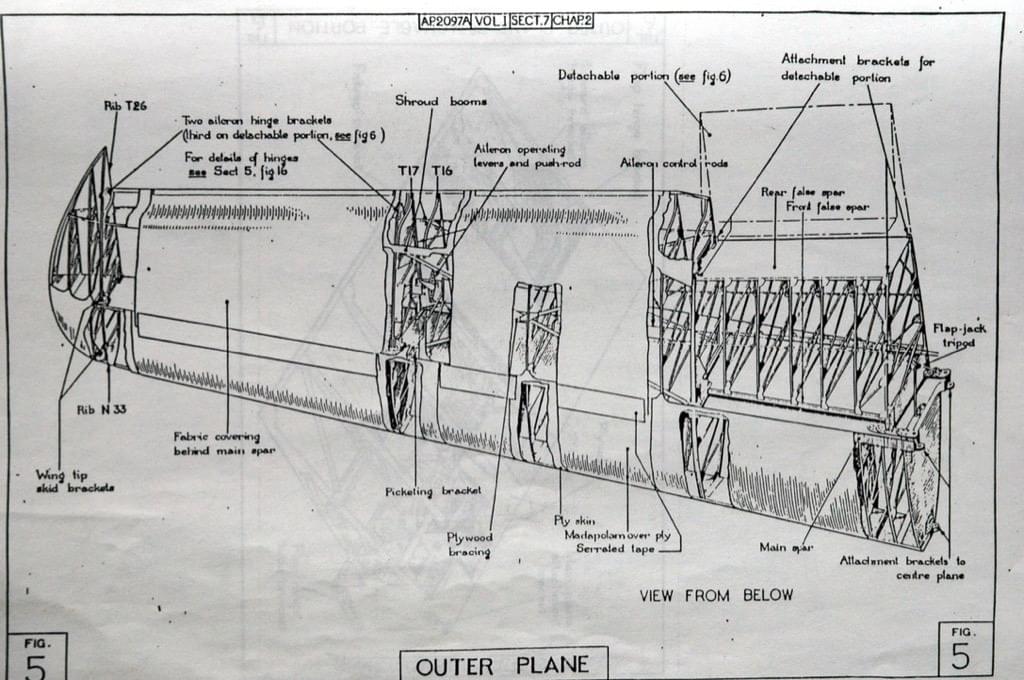

  • Horsa_Plans 123

    My Album Horsa_Plans 123

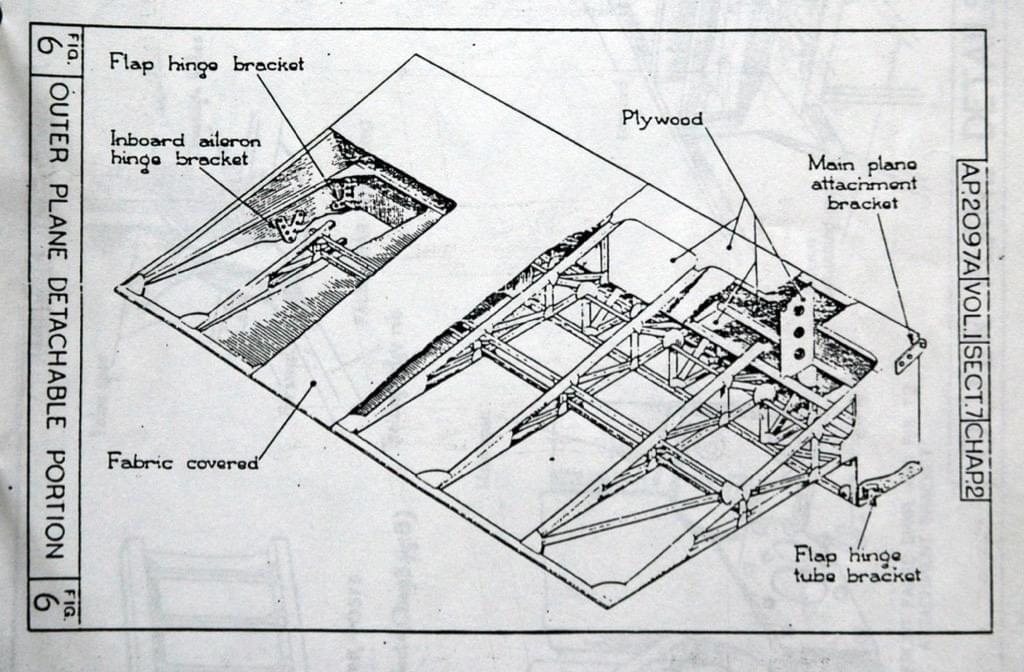

  • Horsa_Plans 124

    My Album Horsa_Plans 124

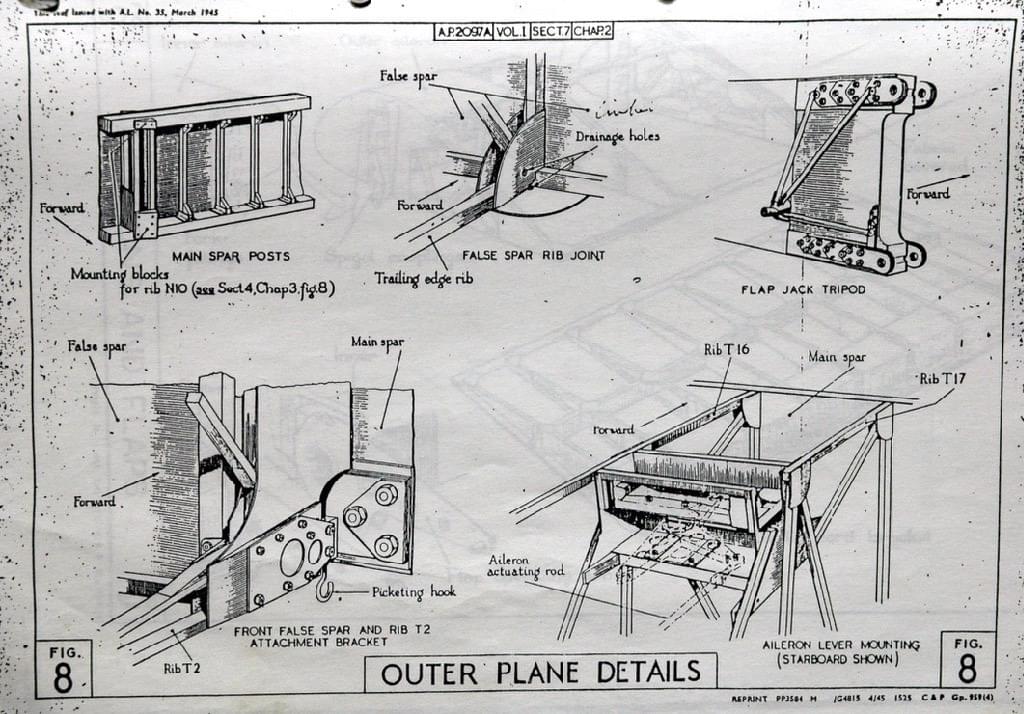

  • Horsa_Plans 125

    My Album Horsa_Plans 125

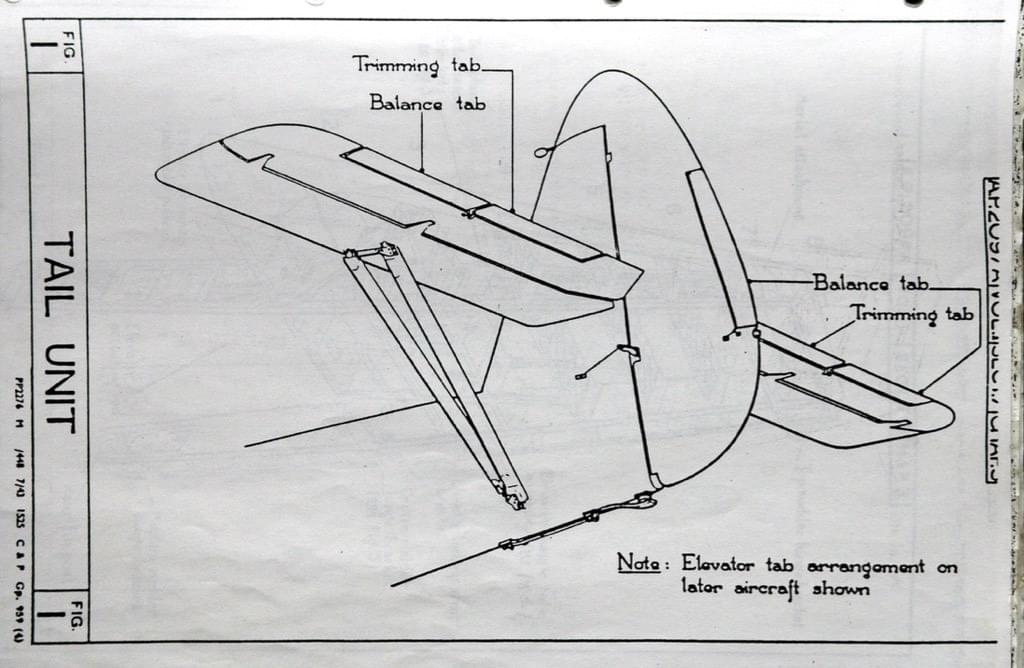

  • Horsa_Plans 126

    My Album Horsa_Plans 126

  • Horsa_Plans 127

    My Album Horsa_Plans 127

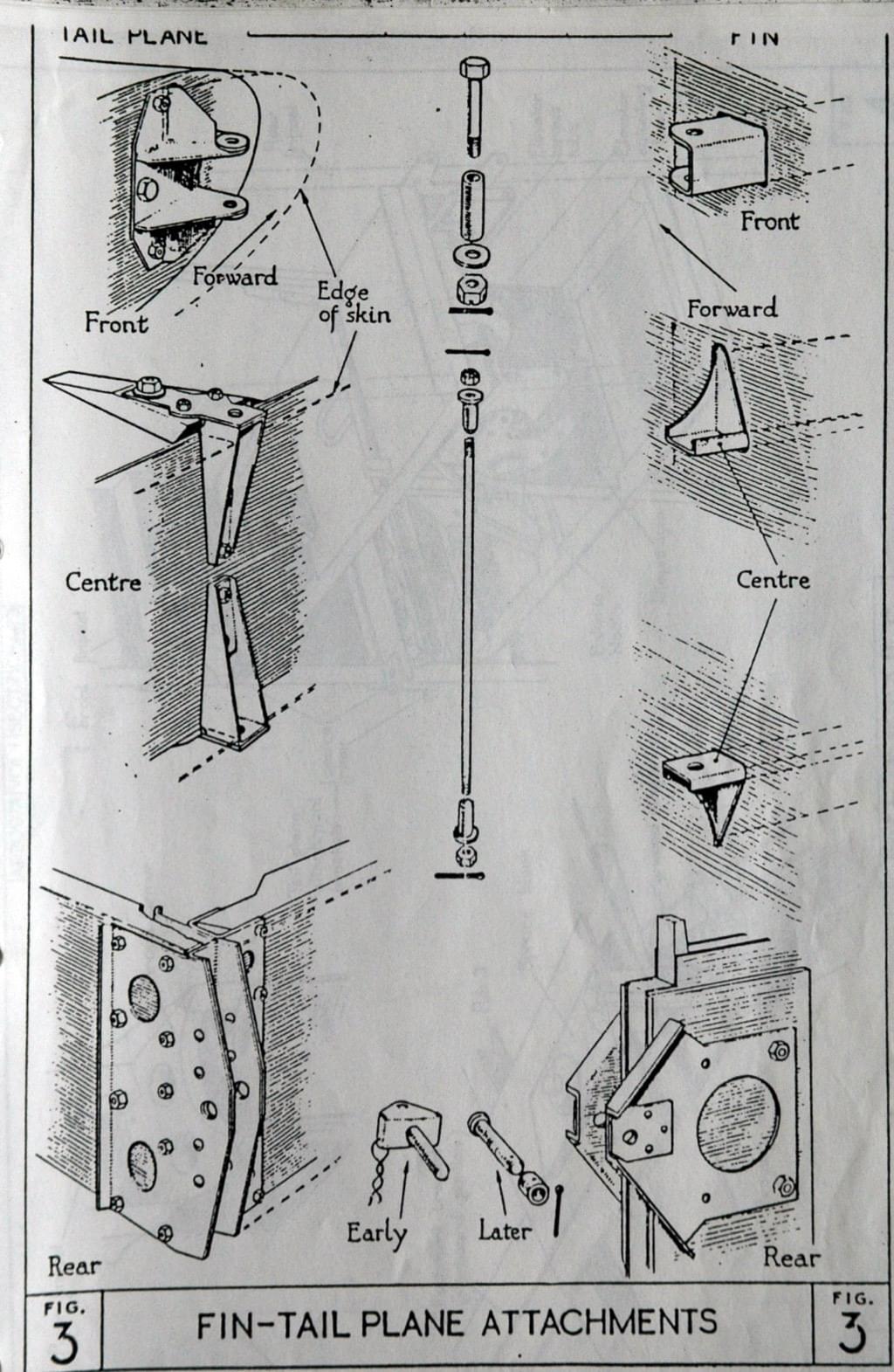

  • Horsa_Plans 128

    My Album Horsa_Plans 128

  • Horsa_Plans 129

    My Album Horsa_Plans 129

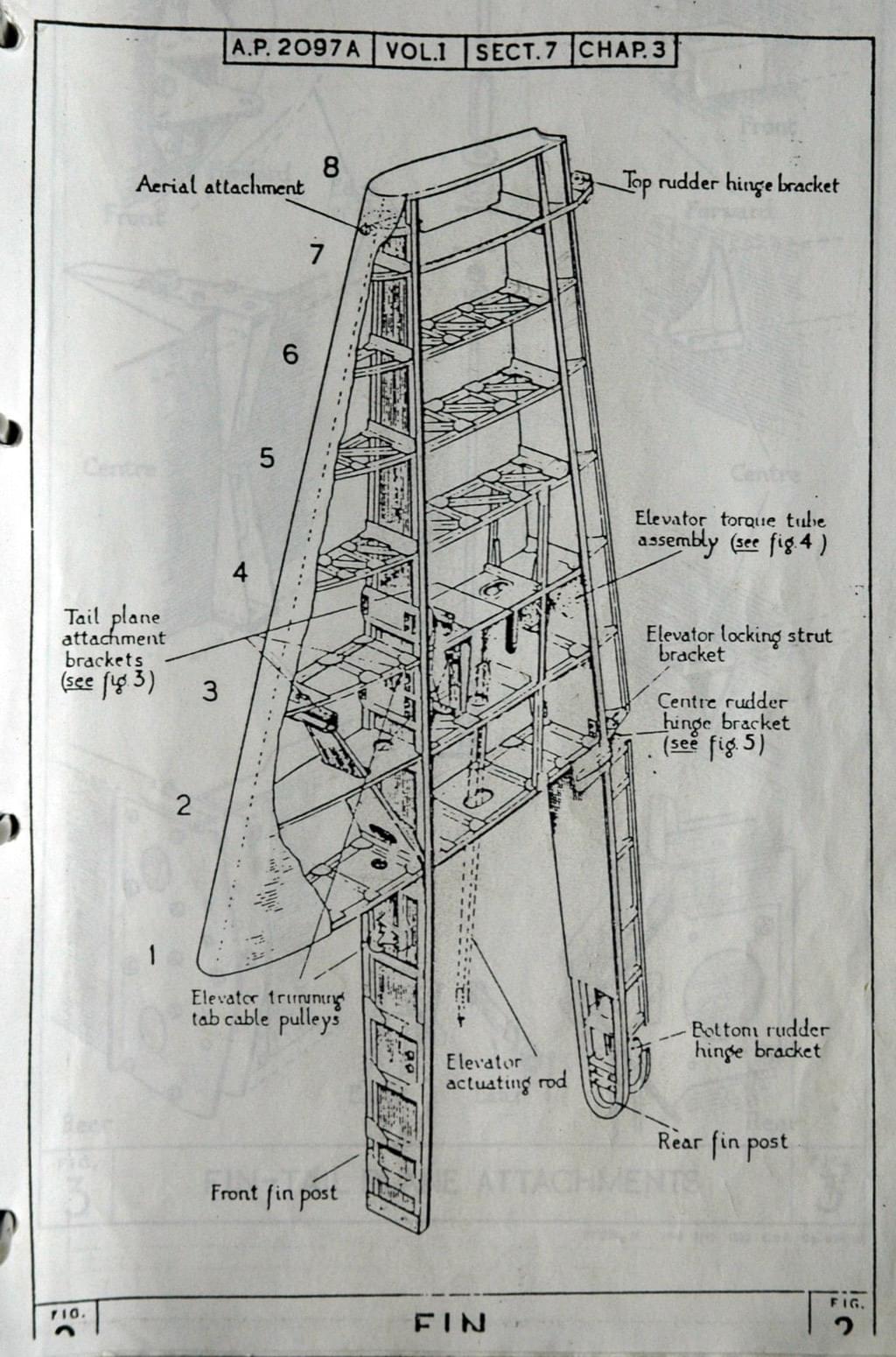

  • Horsa_Plans 130

    My Album Horsa_Plans 130

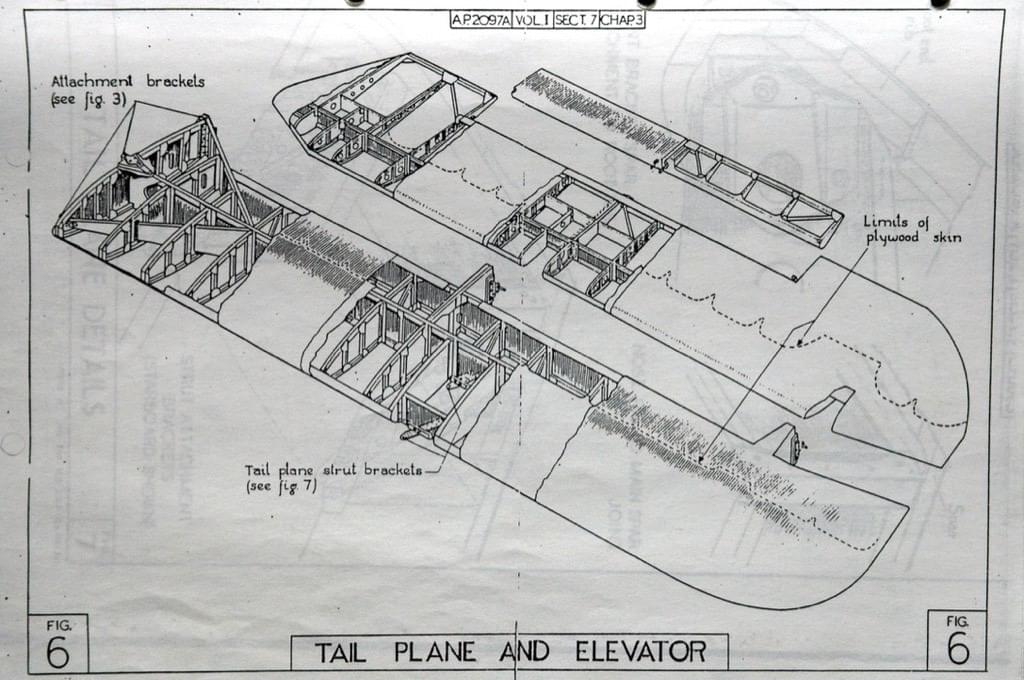

  • Horsa_Plans 131

    My Album Horsa_Plans 131

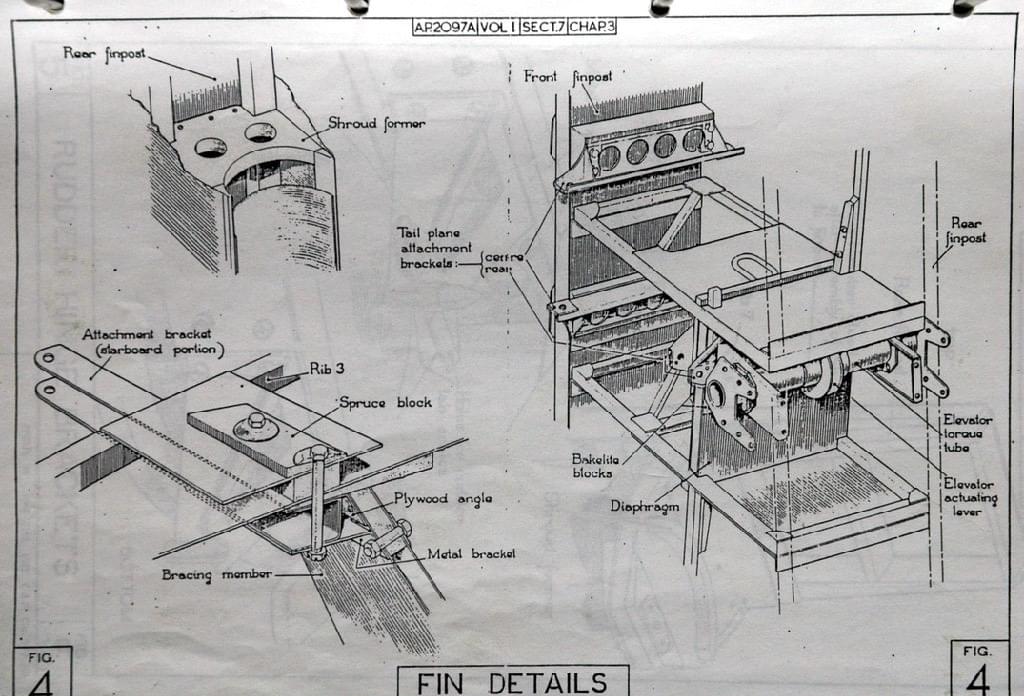

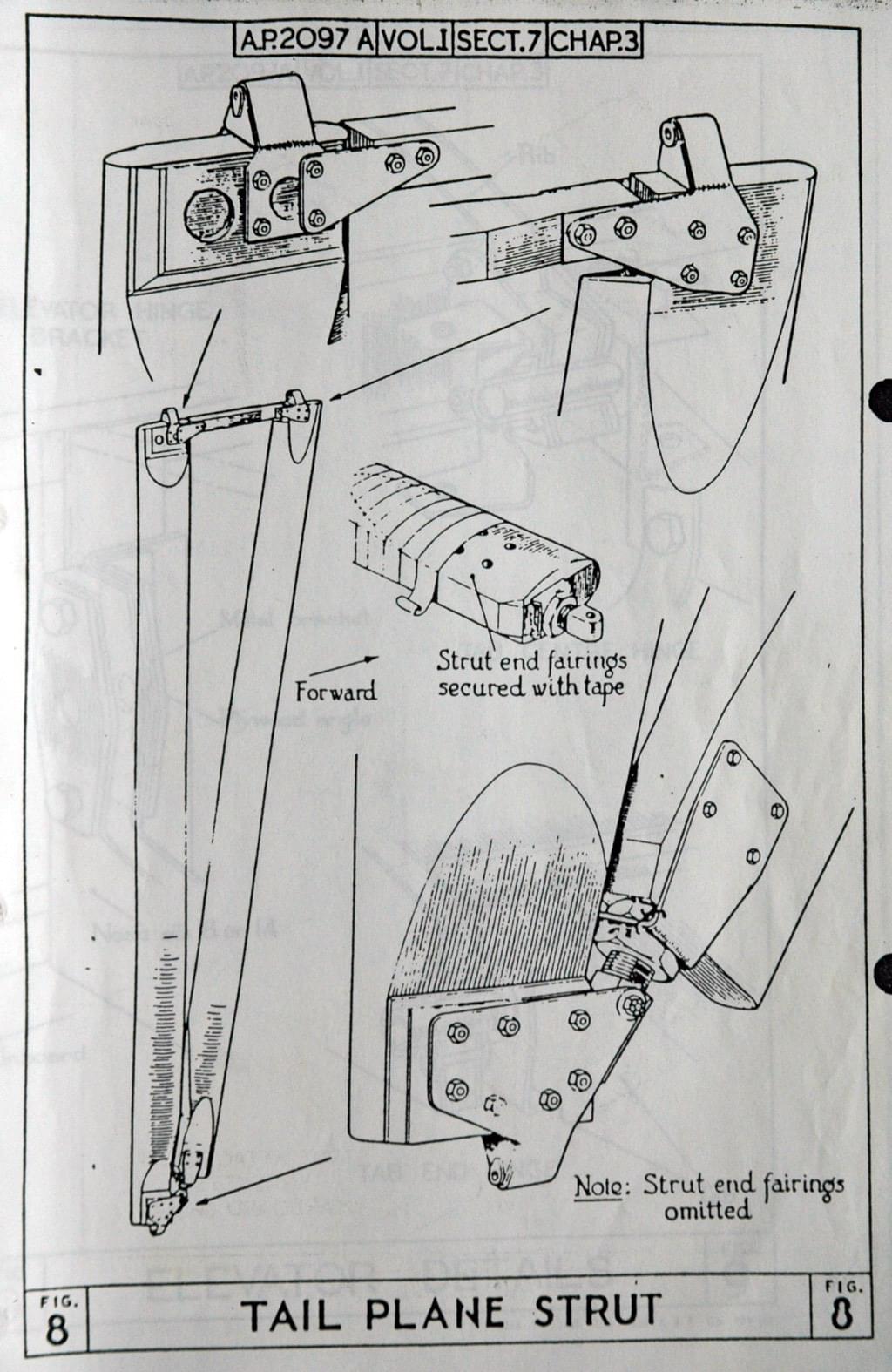

  • Horsa_Plans 132

    My Album Horsa_Plans 132

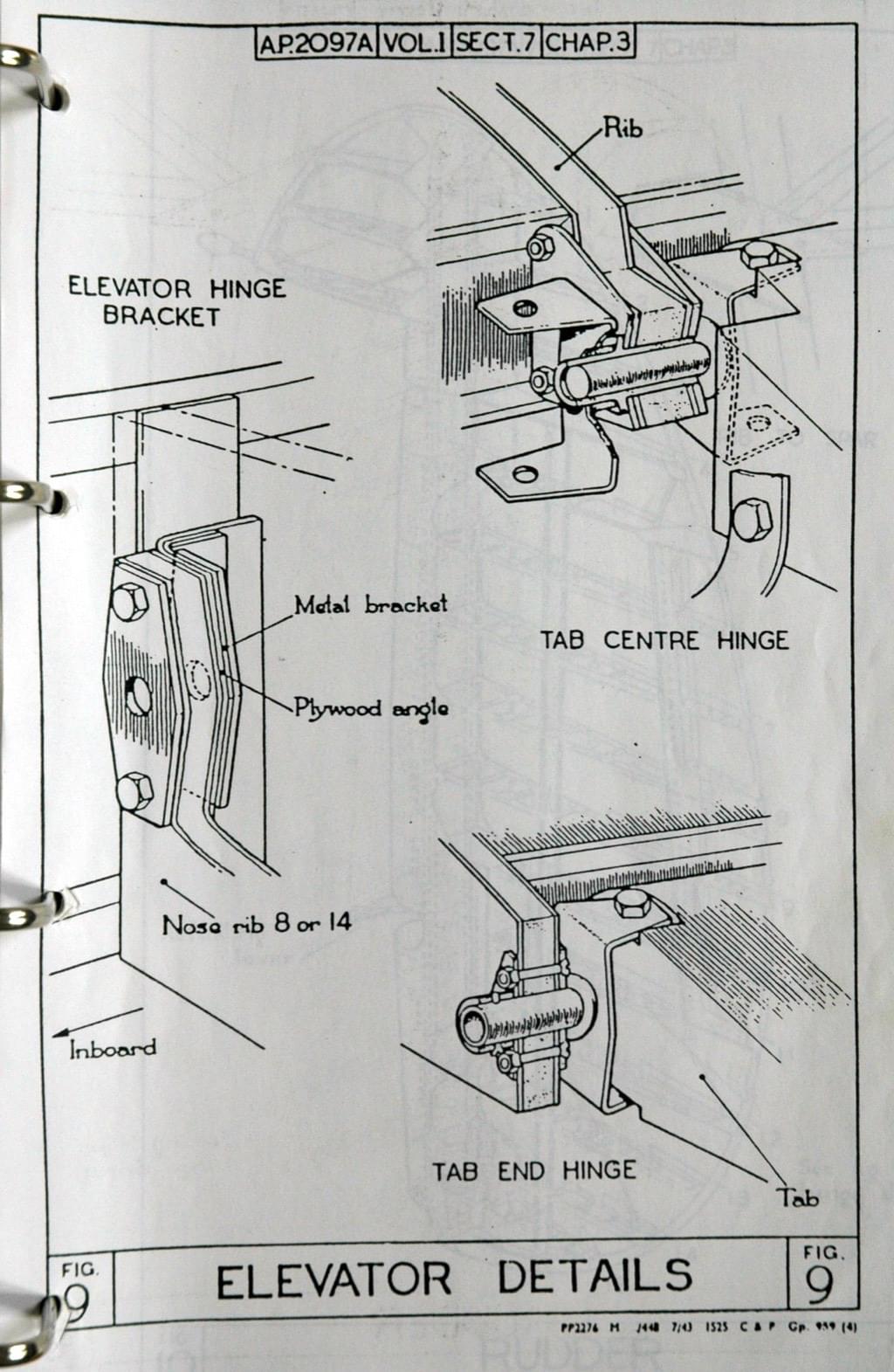

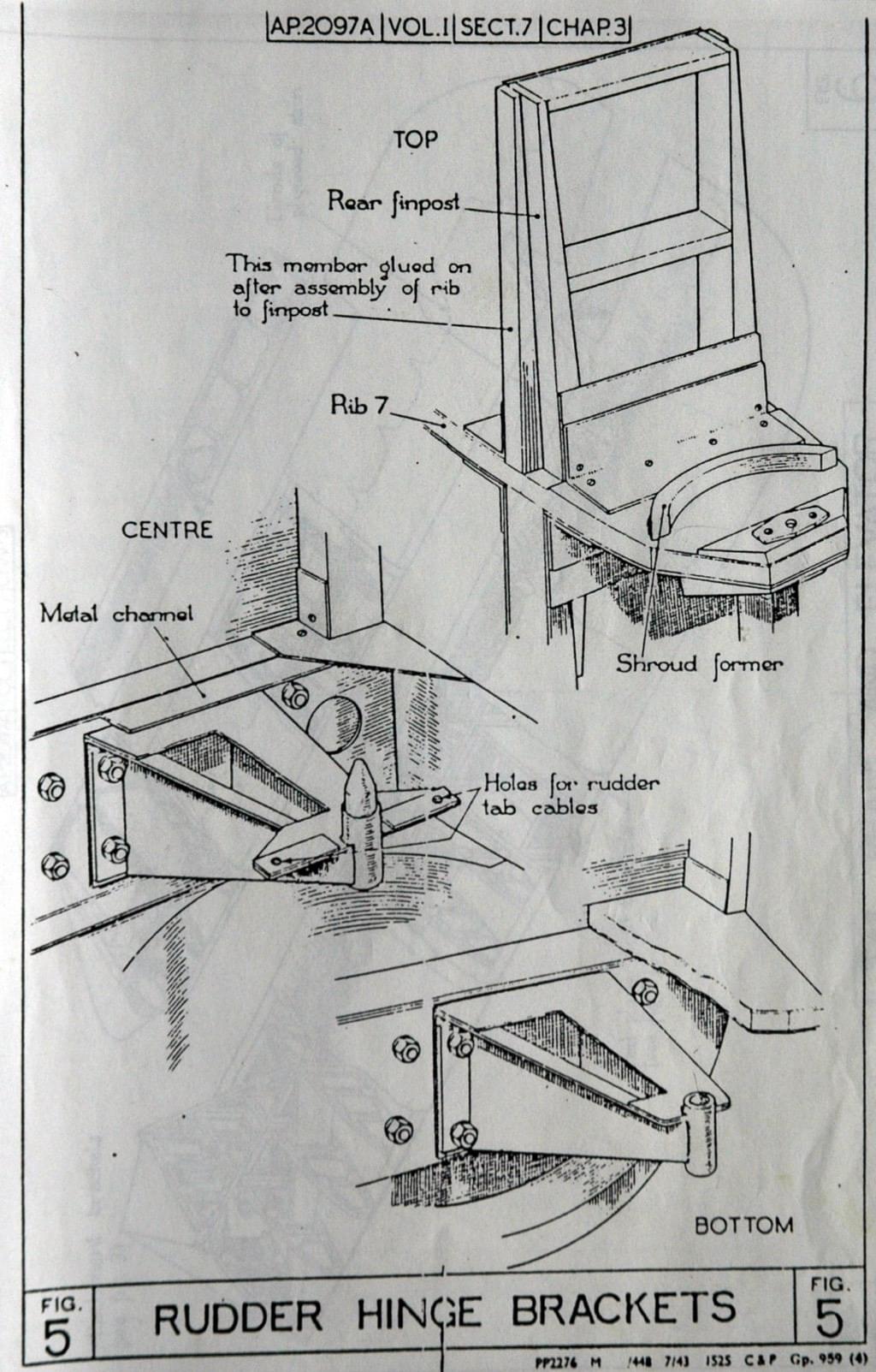

  • Horsa_Plans 133

    My Album Horsa_Plans 133

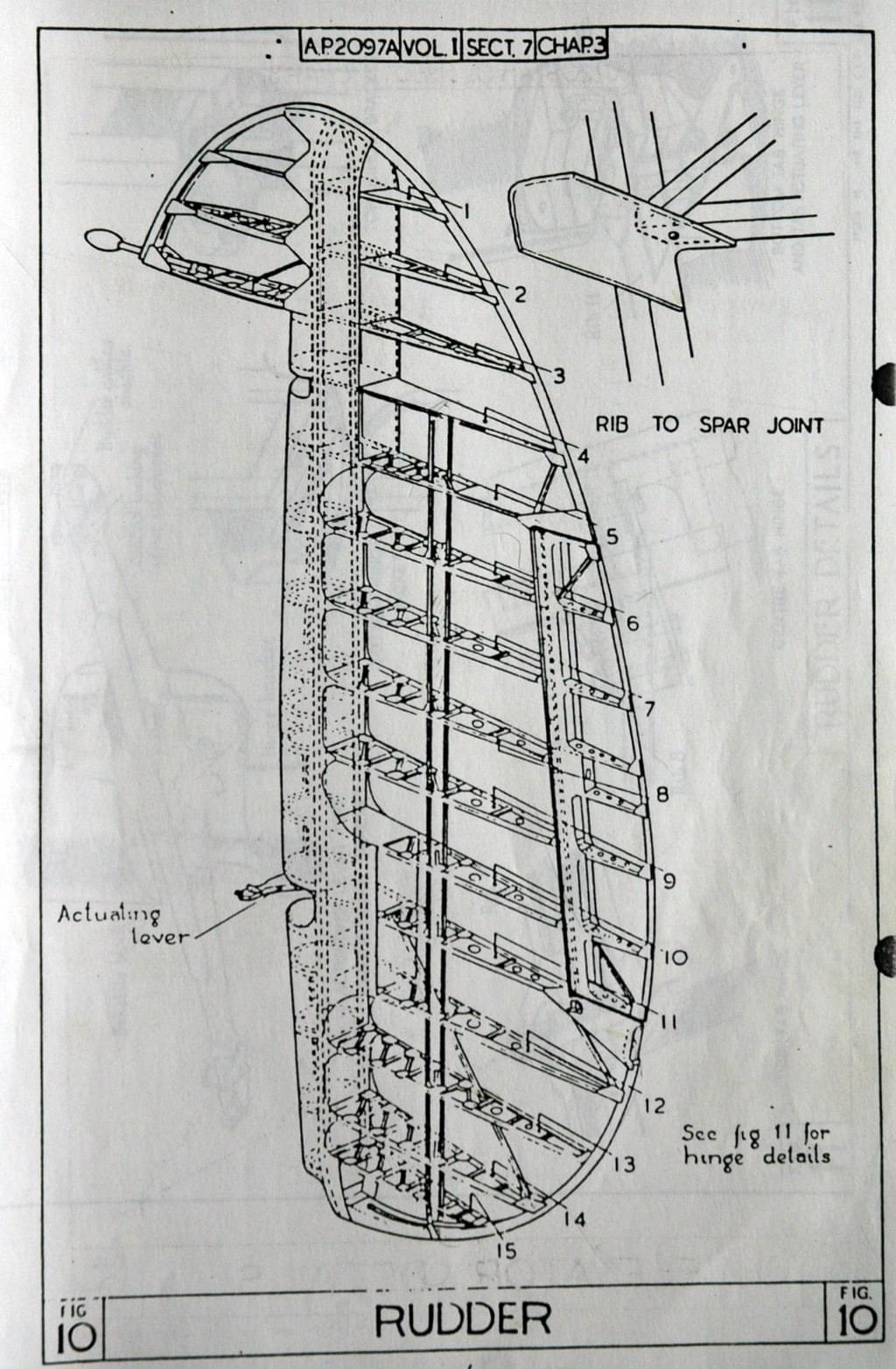

  • Horsa_Plans 134

    My Album Horsa_Plans 134

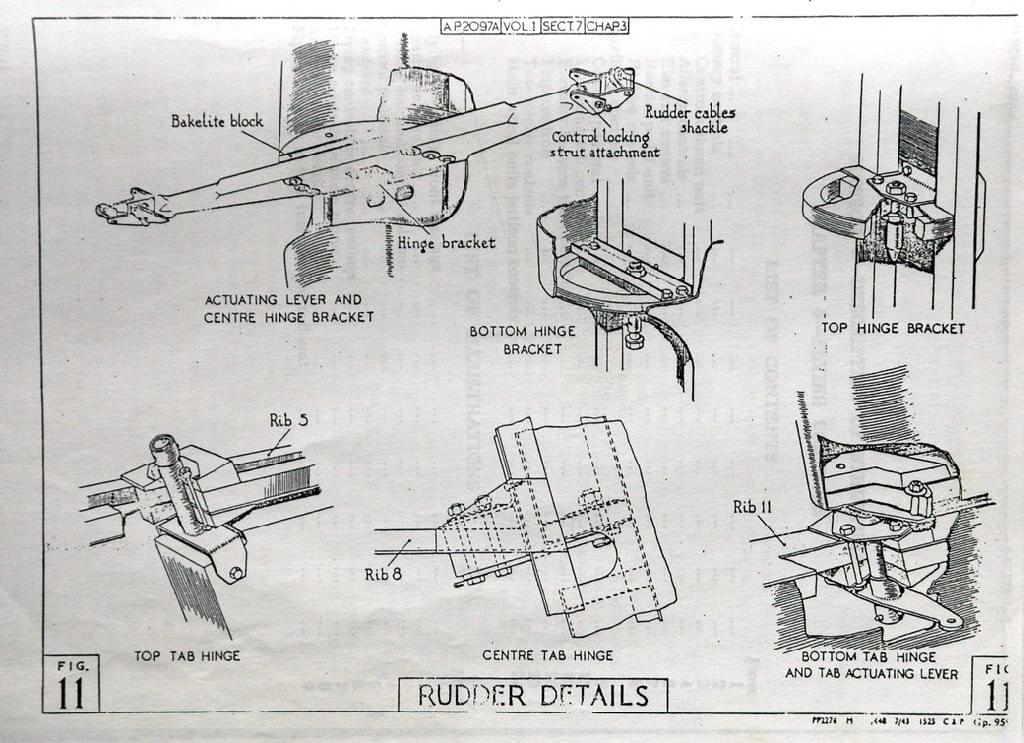

  • Horsa_Plans 135

    My Album Horsa_Plans 135

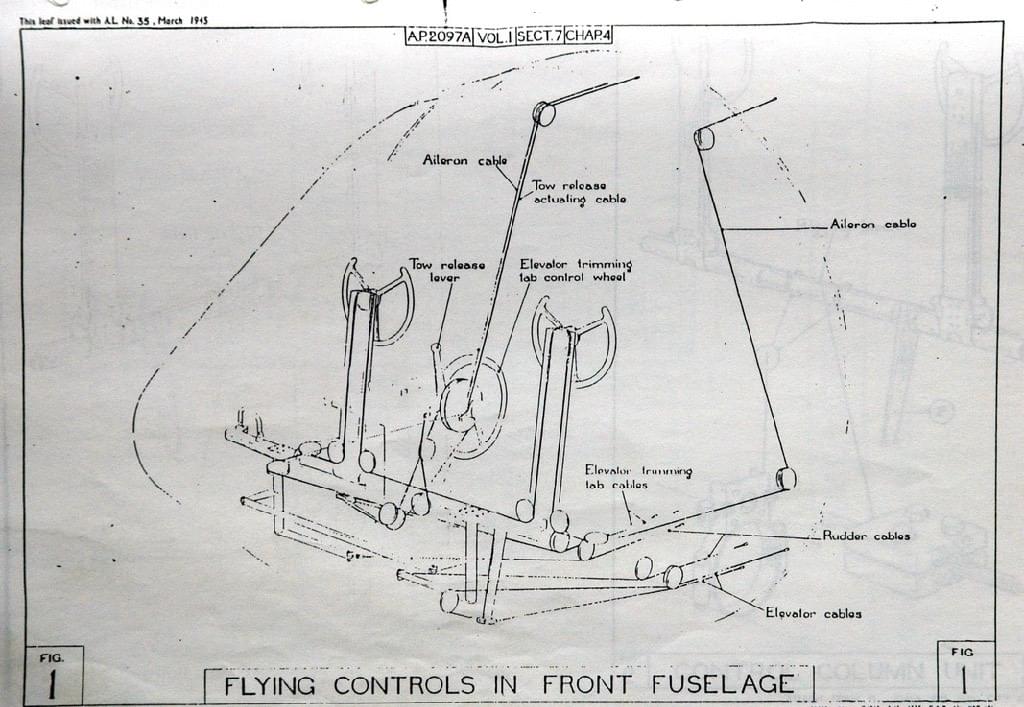

  • Horsa_Plans 136

    My Album Horsa_Plans 136

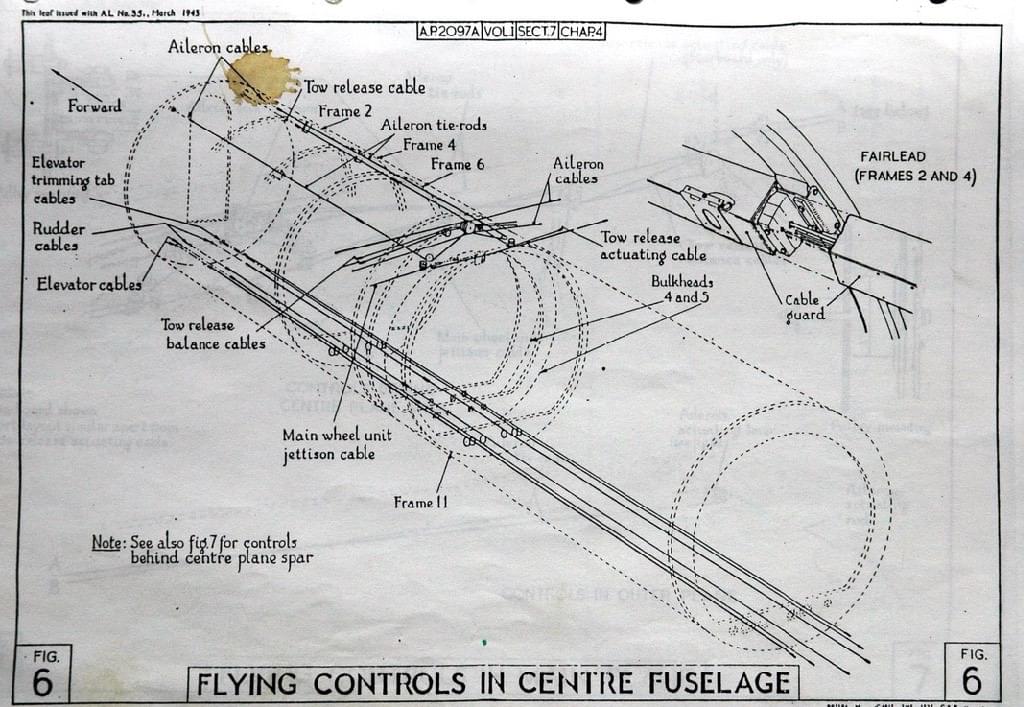

  • Horsa_Plans 137

    My Album Horsa_Plans 137

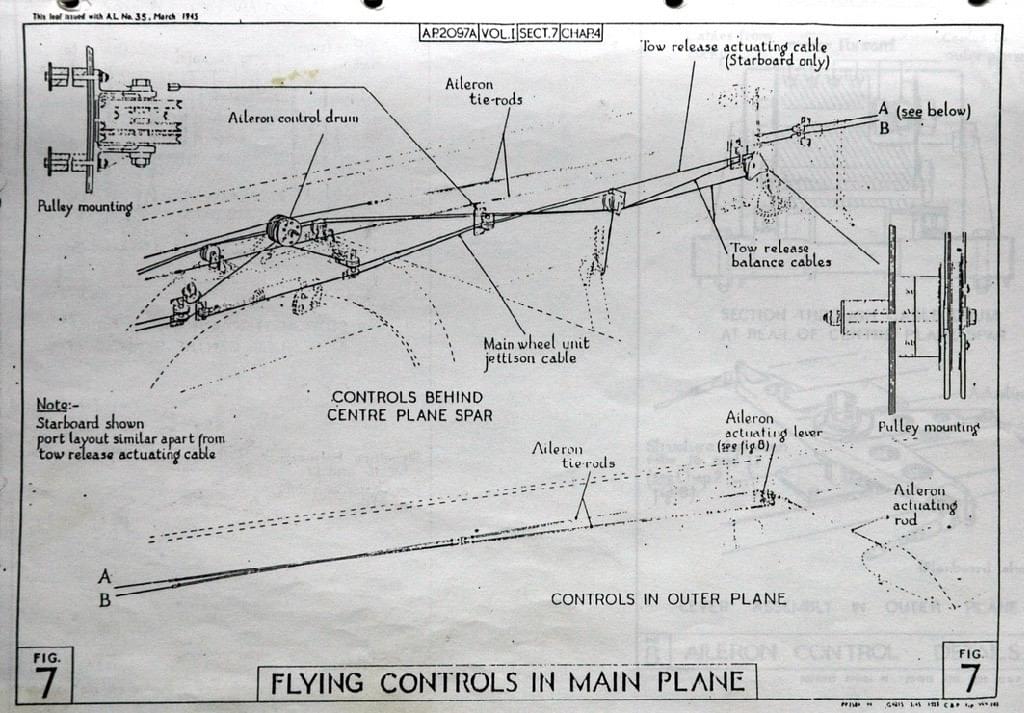

  • Horsa_Plans 138

    My Album Horsa_Plans 138

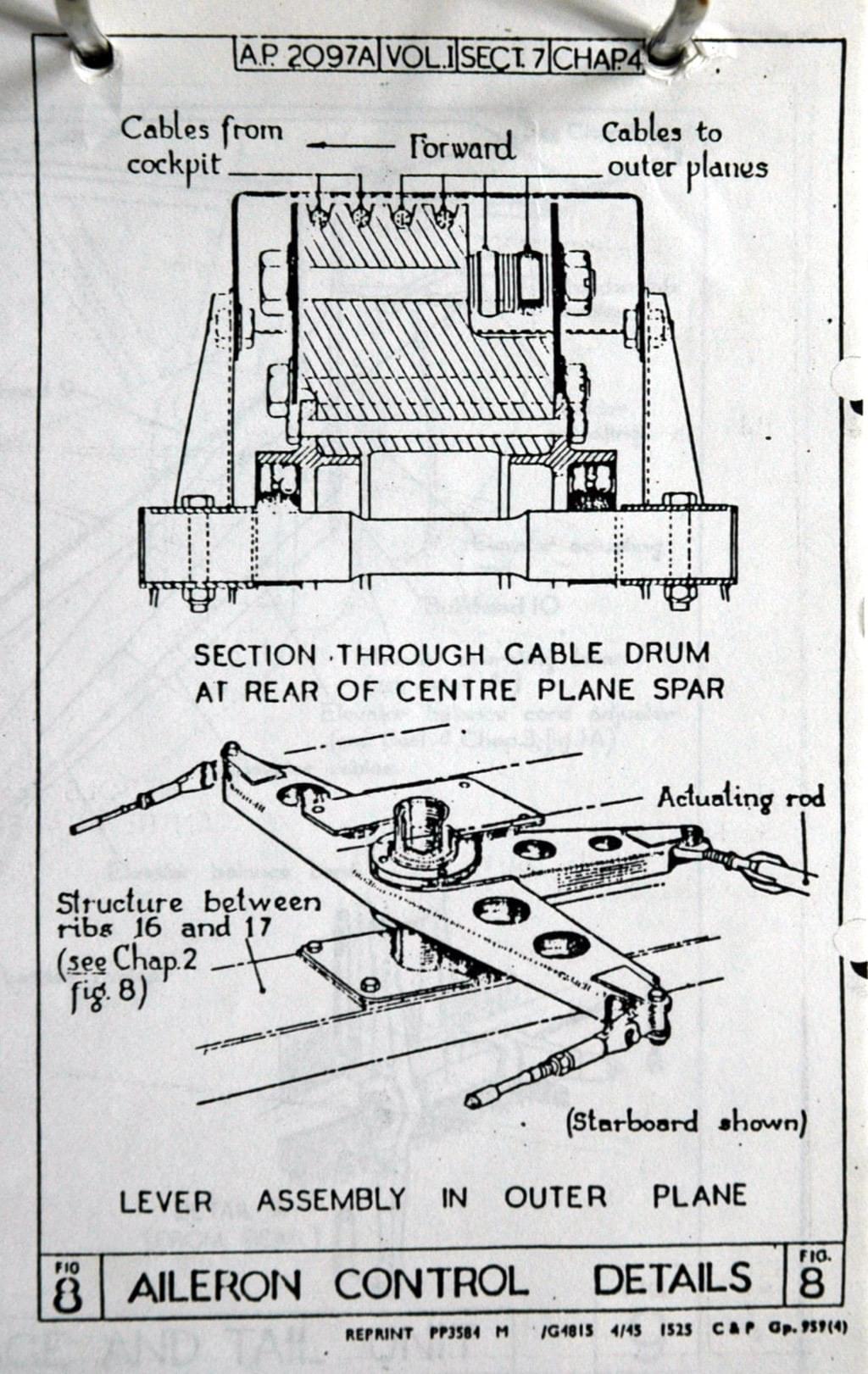

  • Horsa_Plans 139

    My Album Horsa_Plans 139

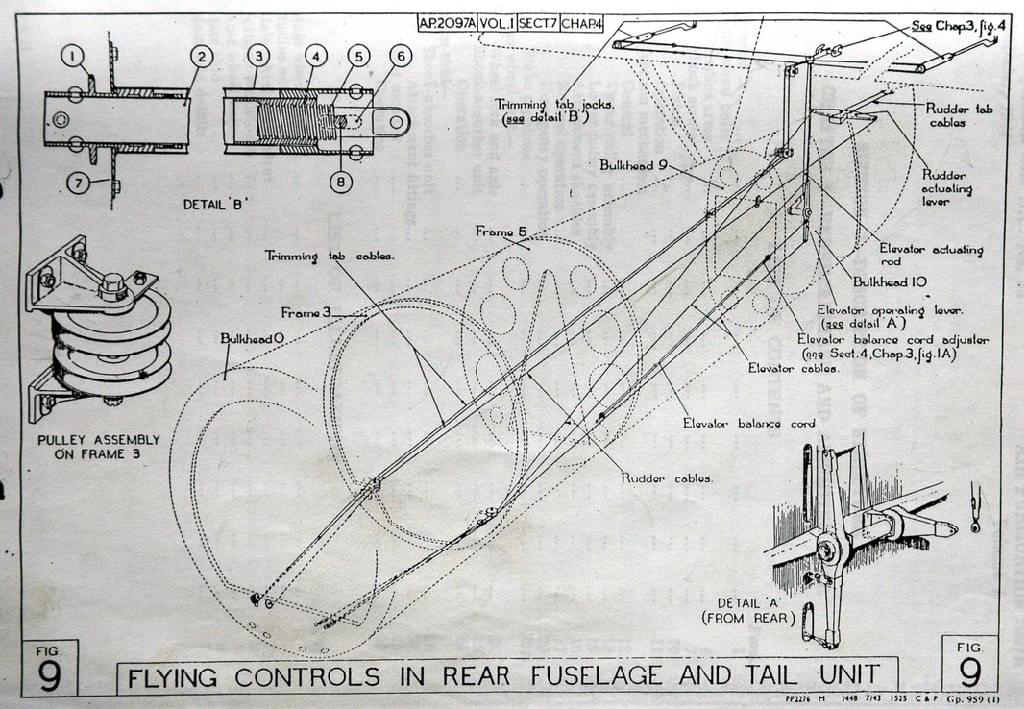

  • Horsa_Plans 140

    My Album Horsa_Plans 140

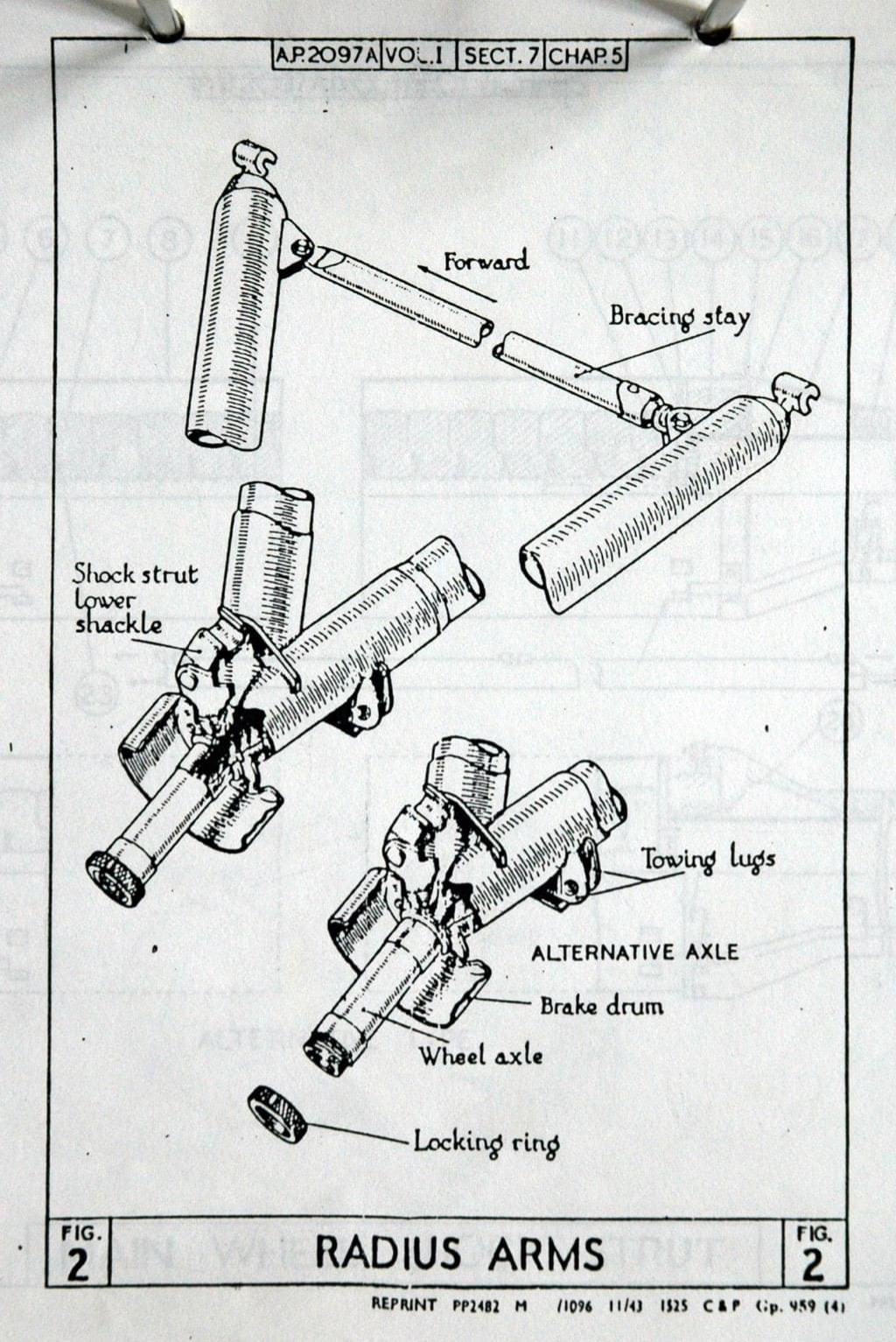

  • Horsa_Plans 141

    My Album Horsa_Plans 141

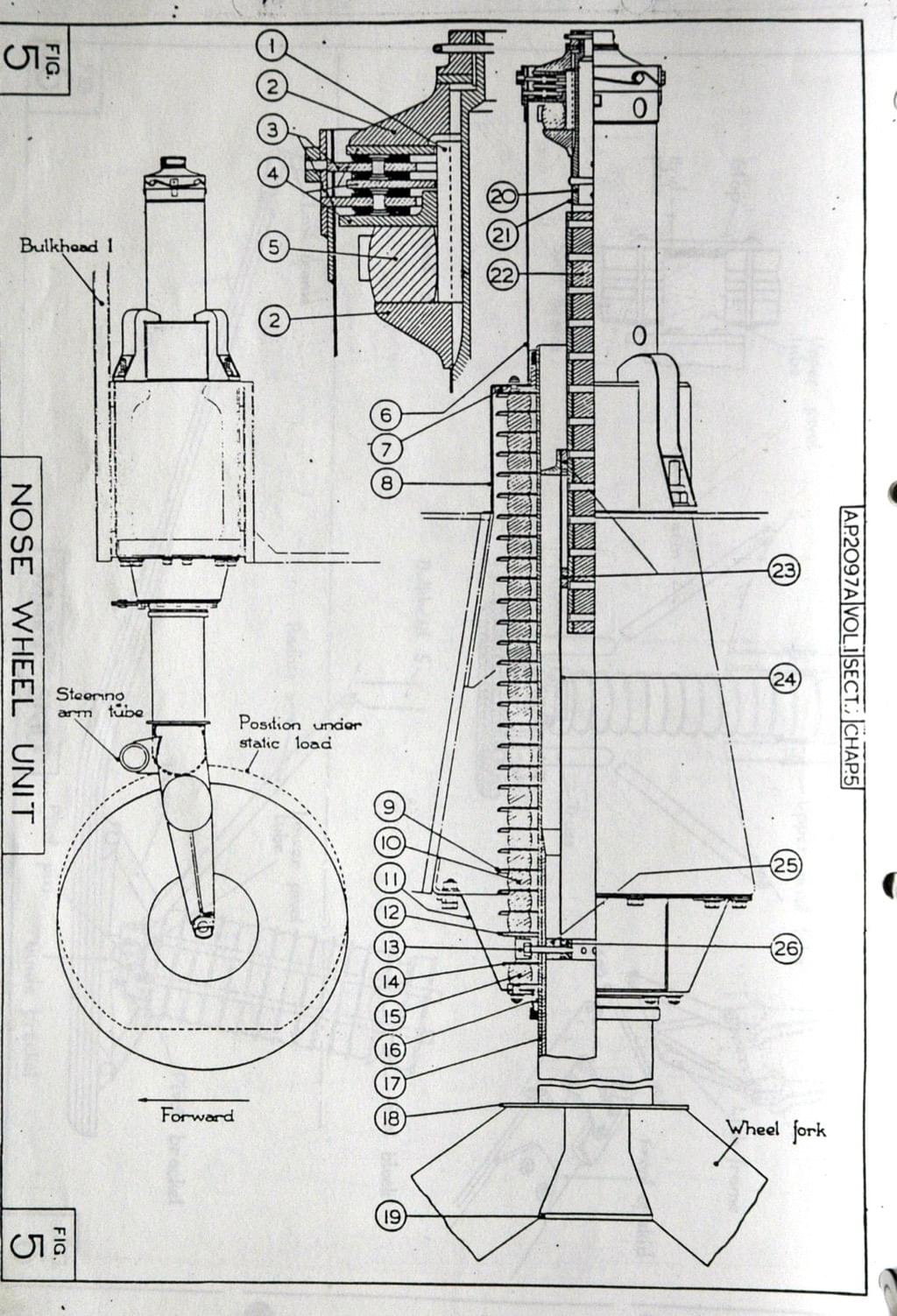

  • Horsa_Plans 142

    My Album Horsa_Plans 142

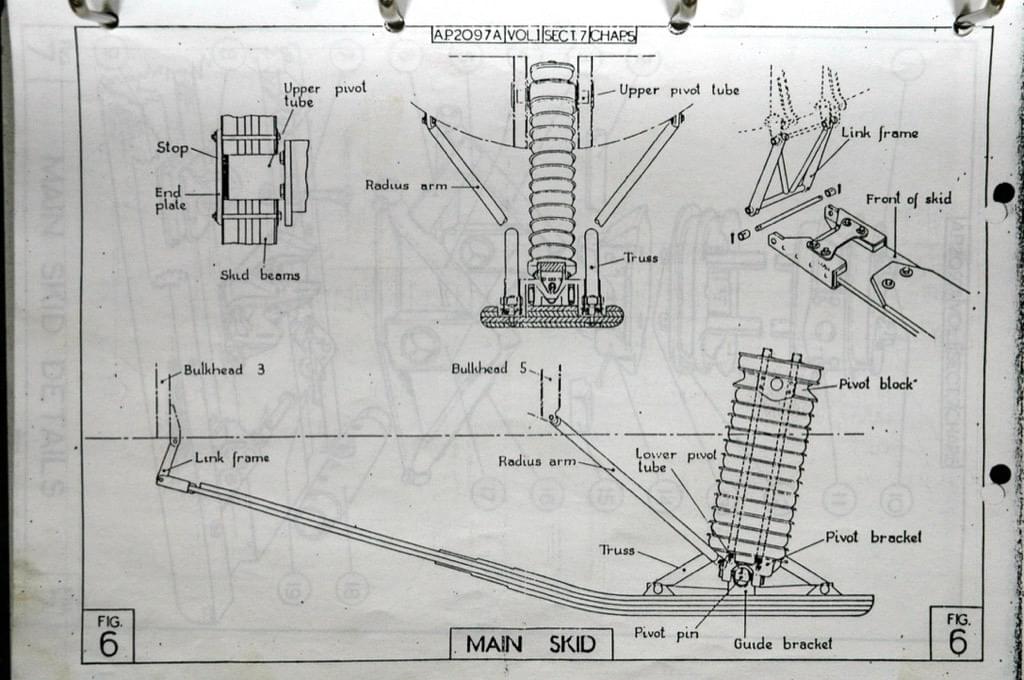

  • Horsa_Plans 143

    My Album Horsa_Plans 143

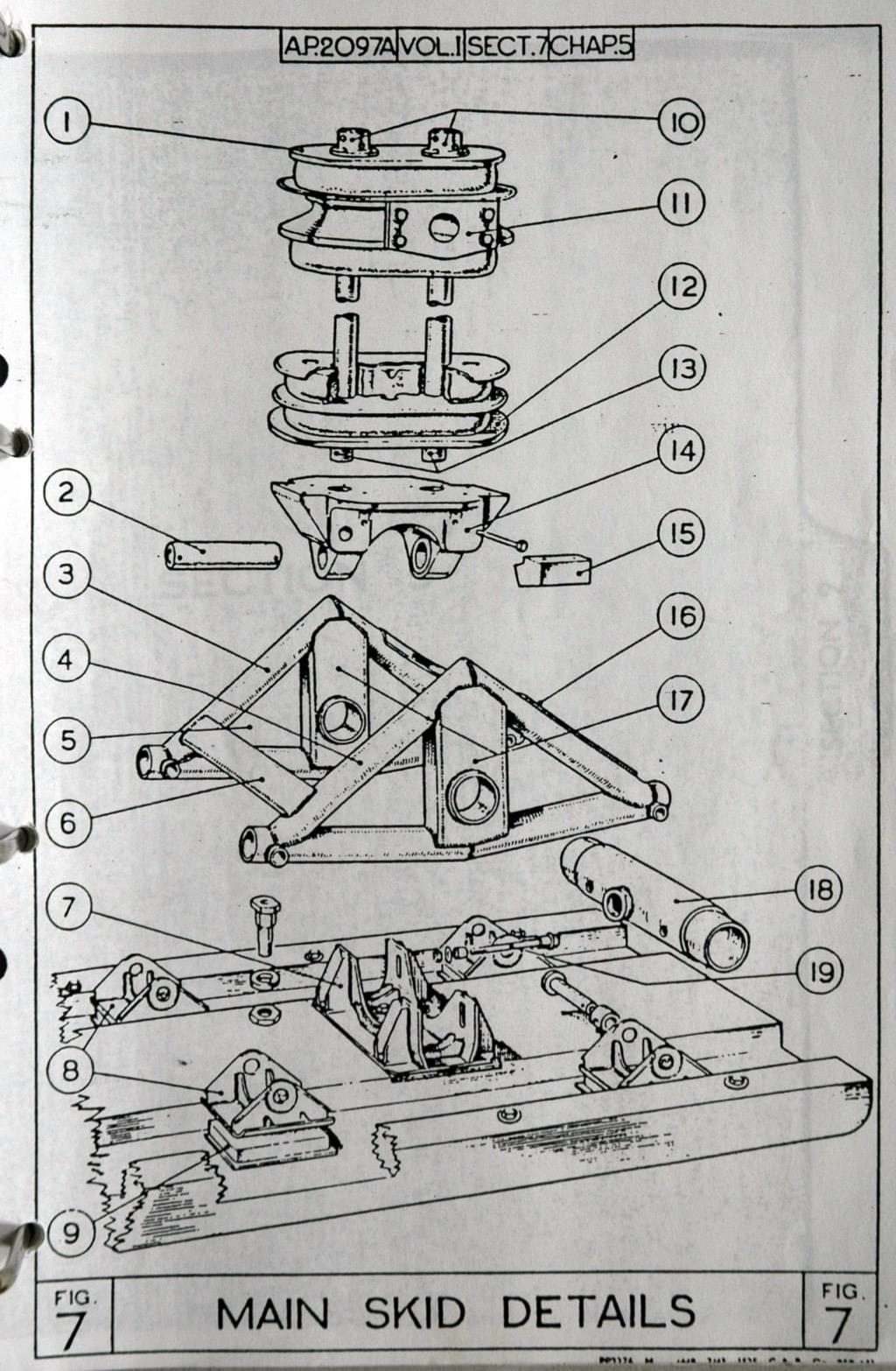

  • Horsa_Plans 144

    My Album Horsa_Plans 144

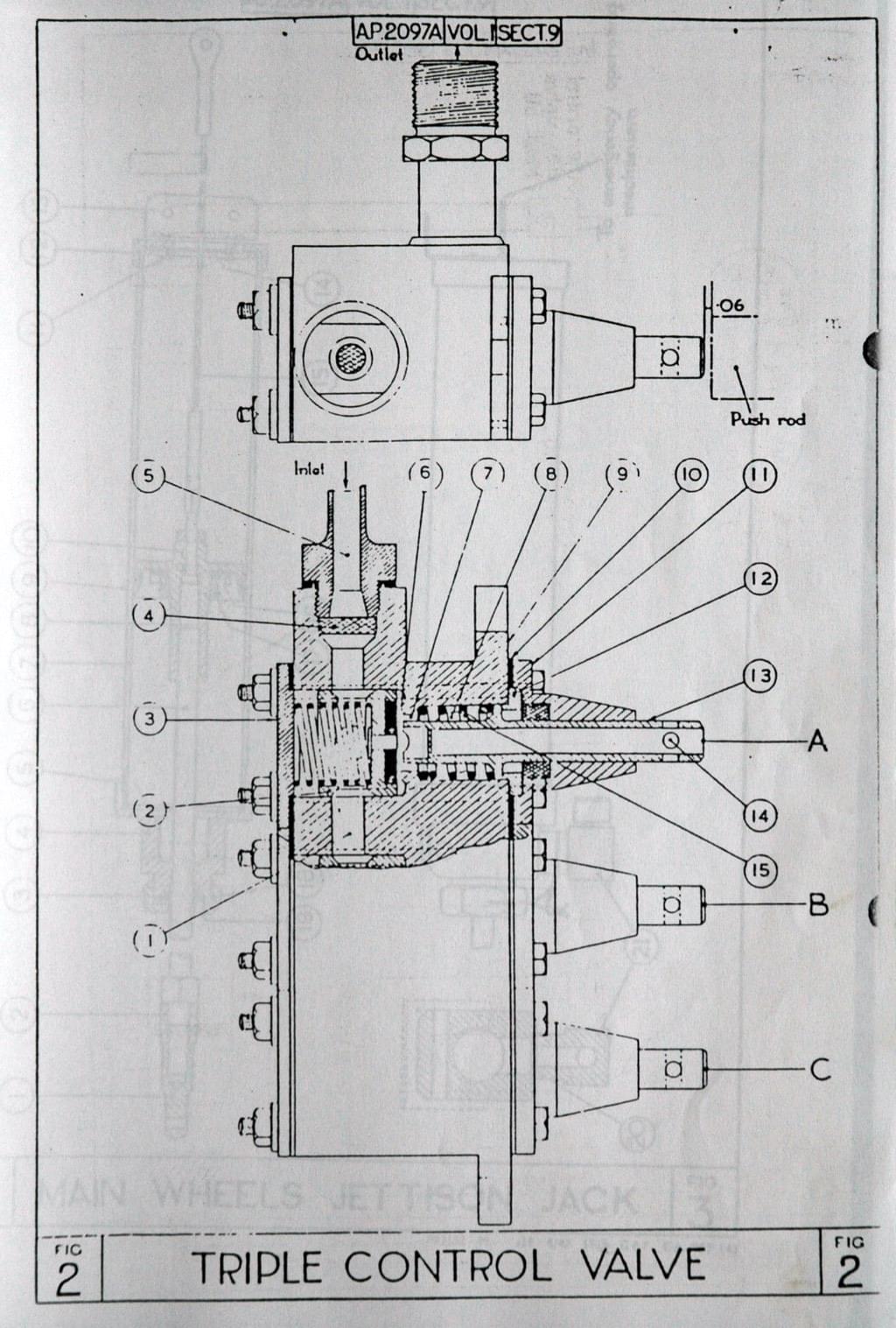

  • Horsa_Plans 145

    My Album Horsa_Plans 145

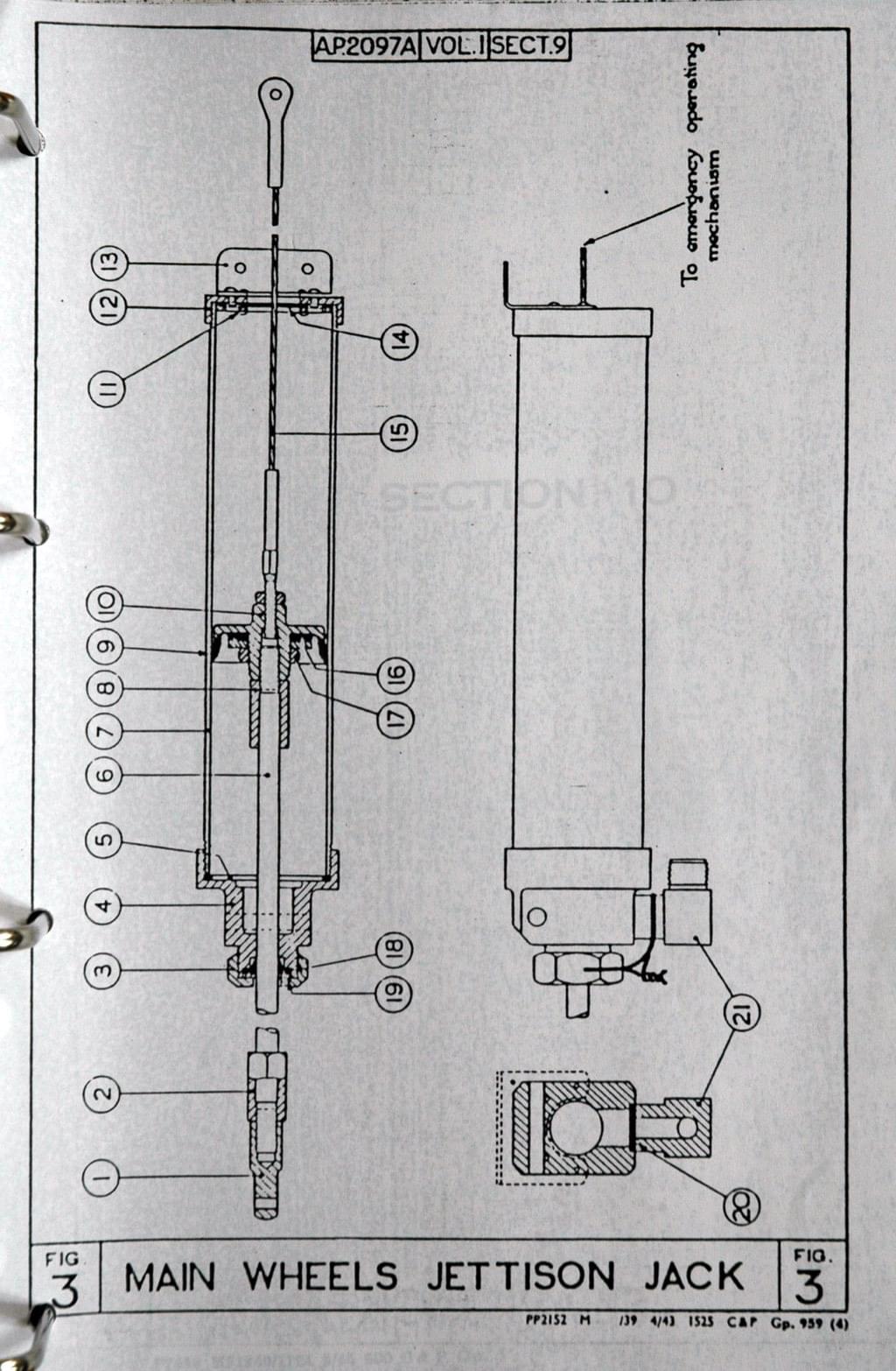

  • Horsa_Plans 146

    My Album Horsa_Plans 146

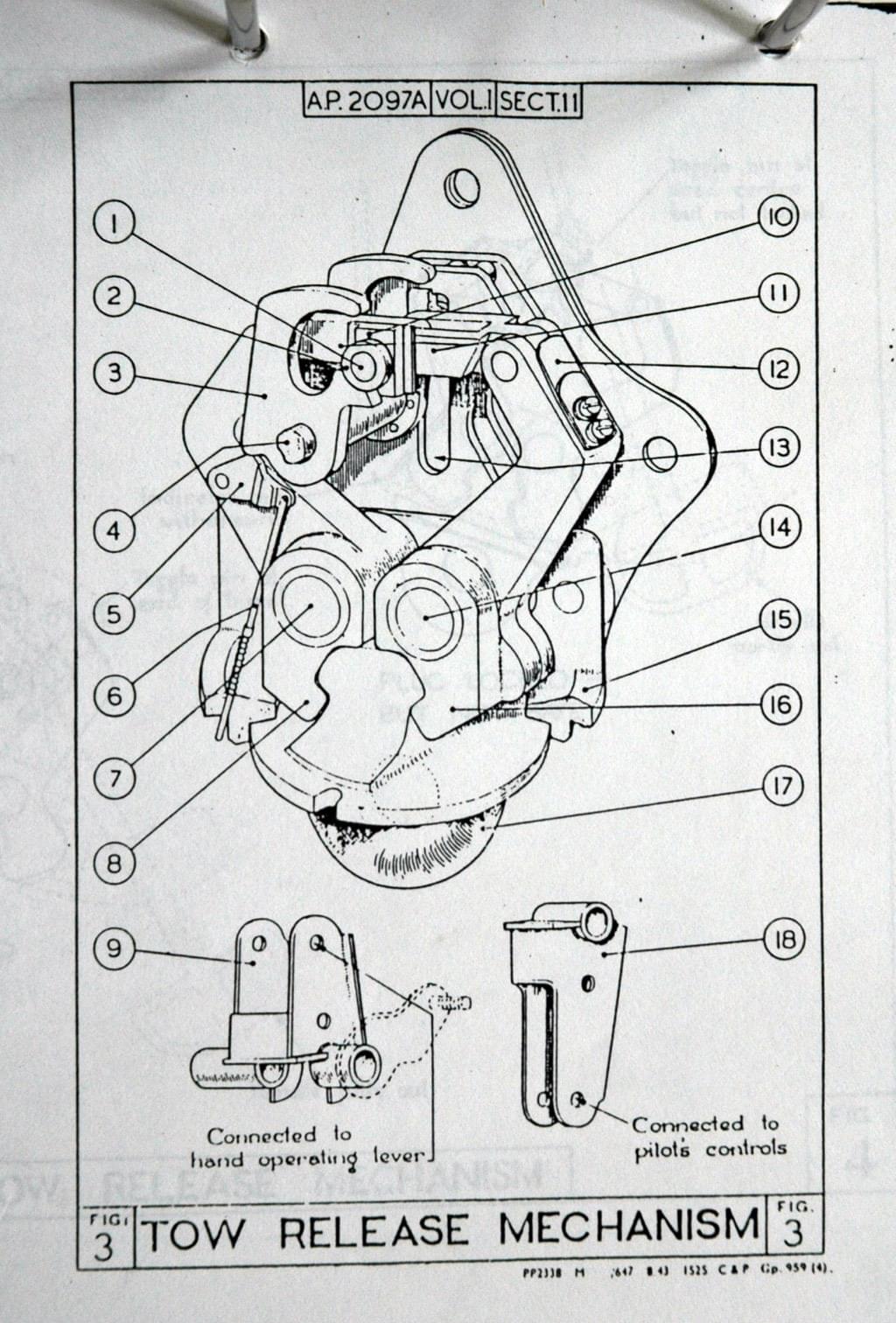

  • Horsa_Plans 147

    My Album Horsa_Plans 147

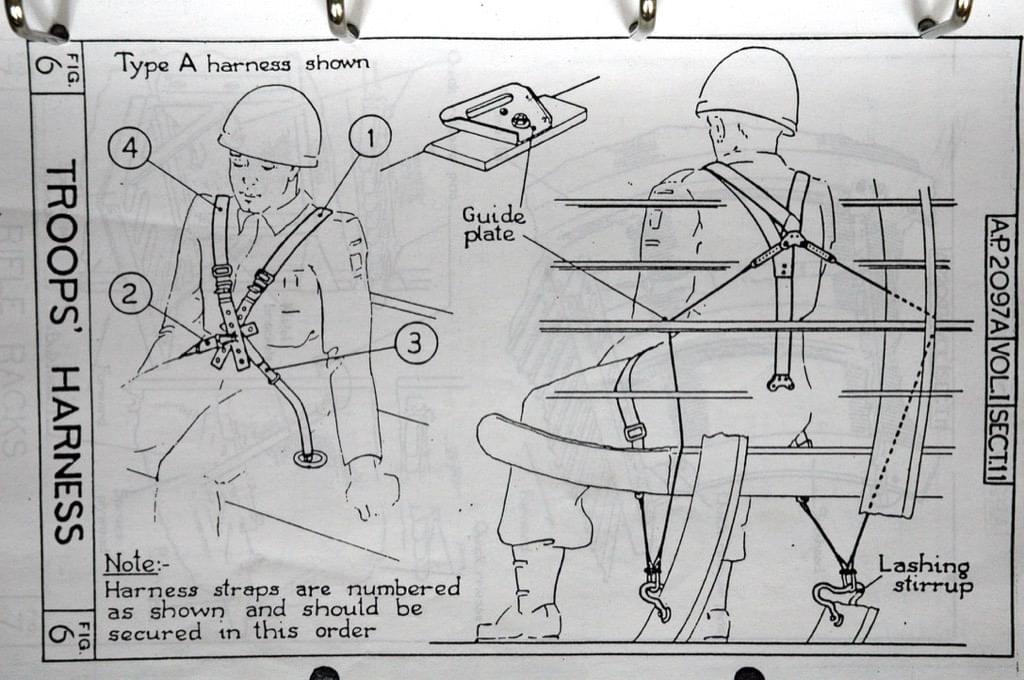

  • Horsa_Plans 148

    My Album Horsa_Plans 148

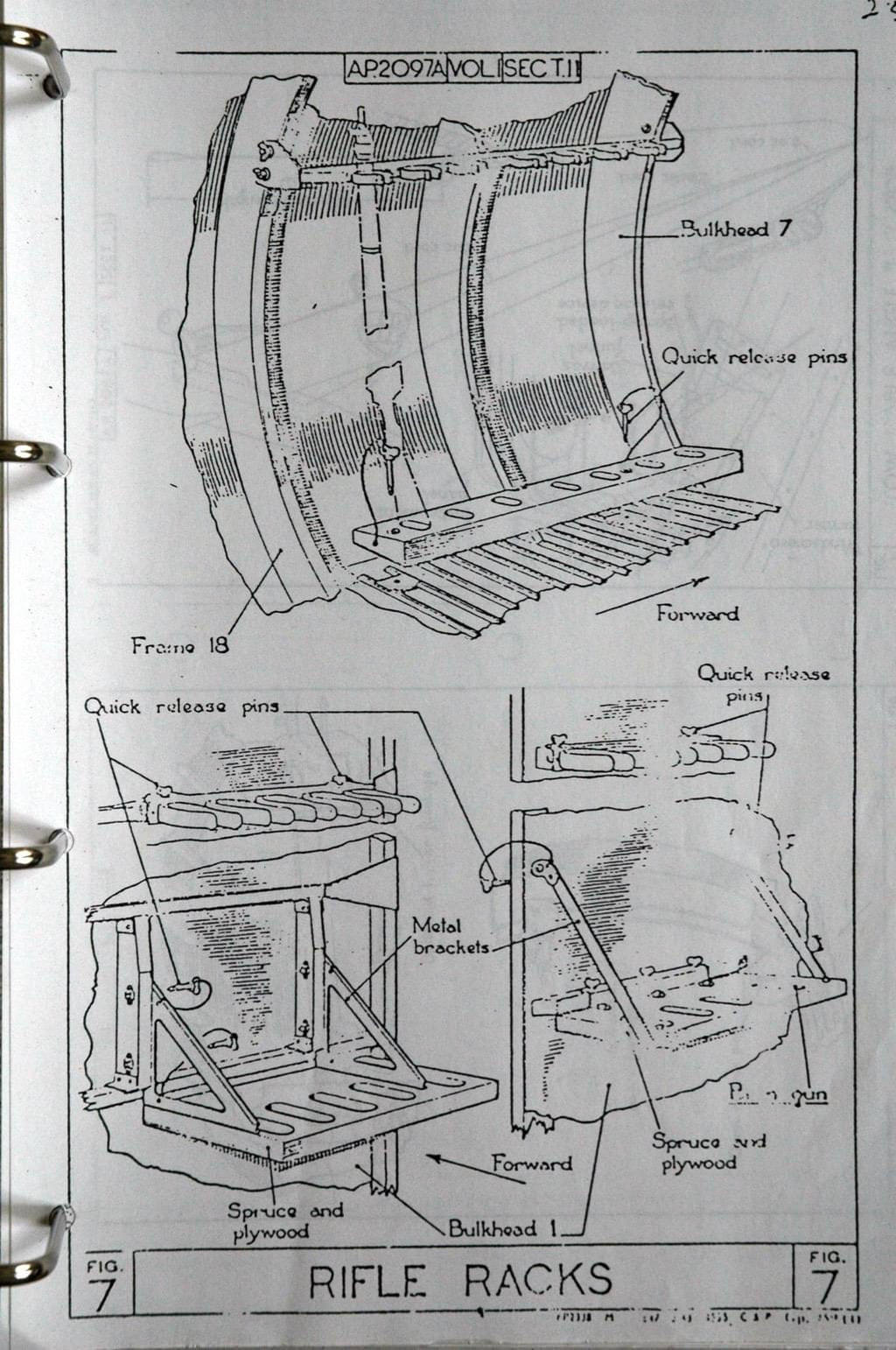

  • Horsa_Plans 149

    My Album Horsa_Plans 149

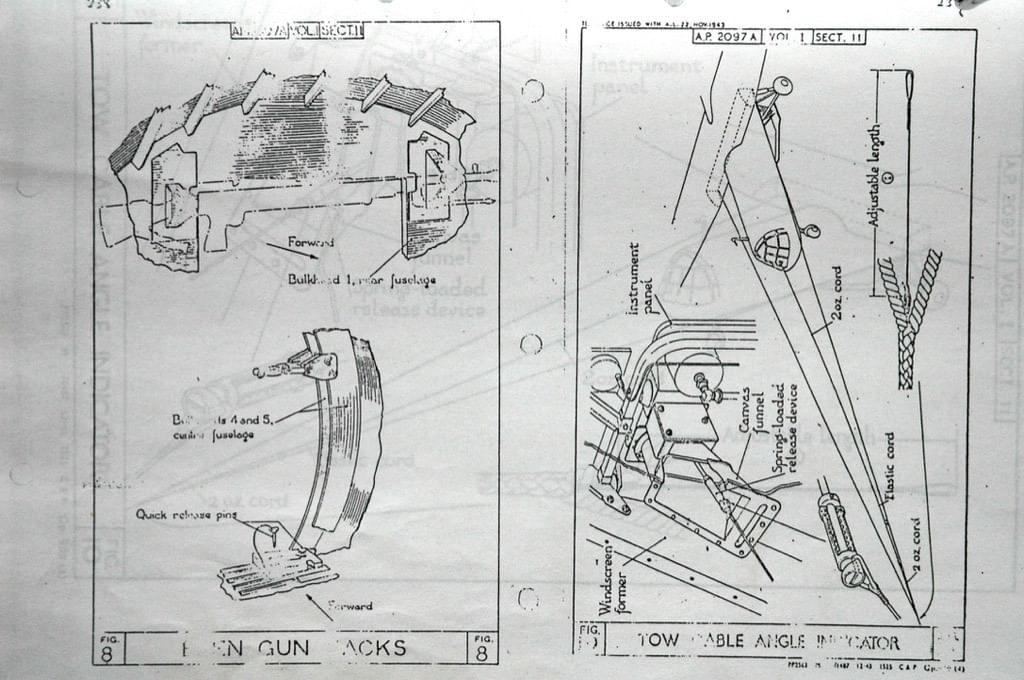

  • Horsa_Plans 150

    My Album Horsa_Plans 150

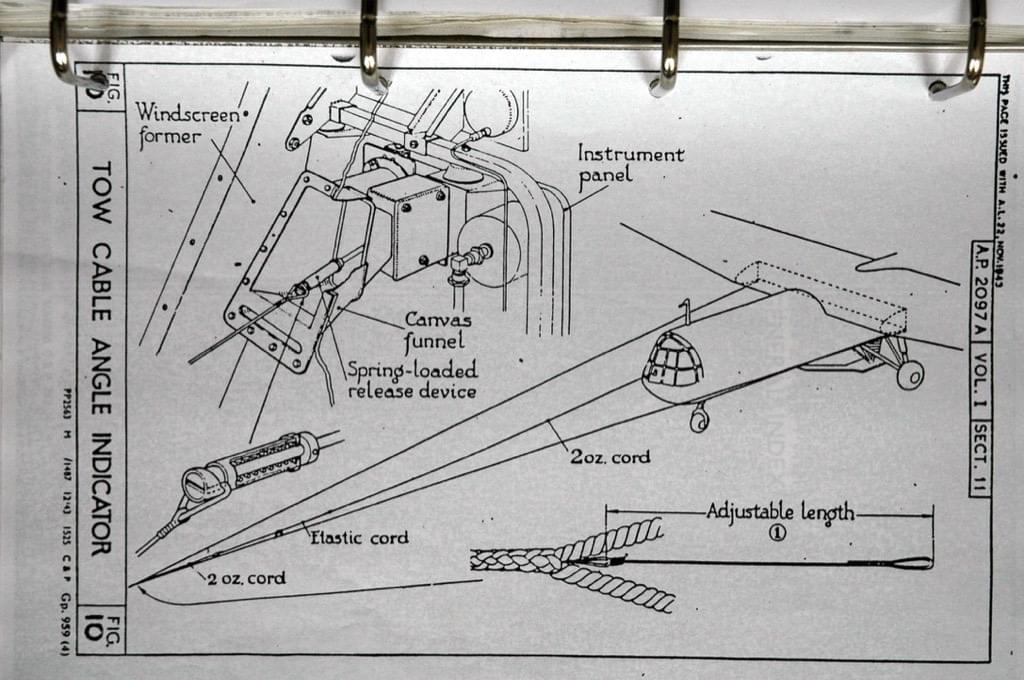

  • Horsa_Plans 151

    My Album Horsa_Plans 151
